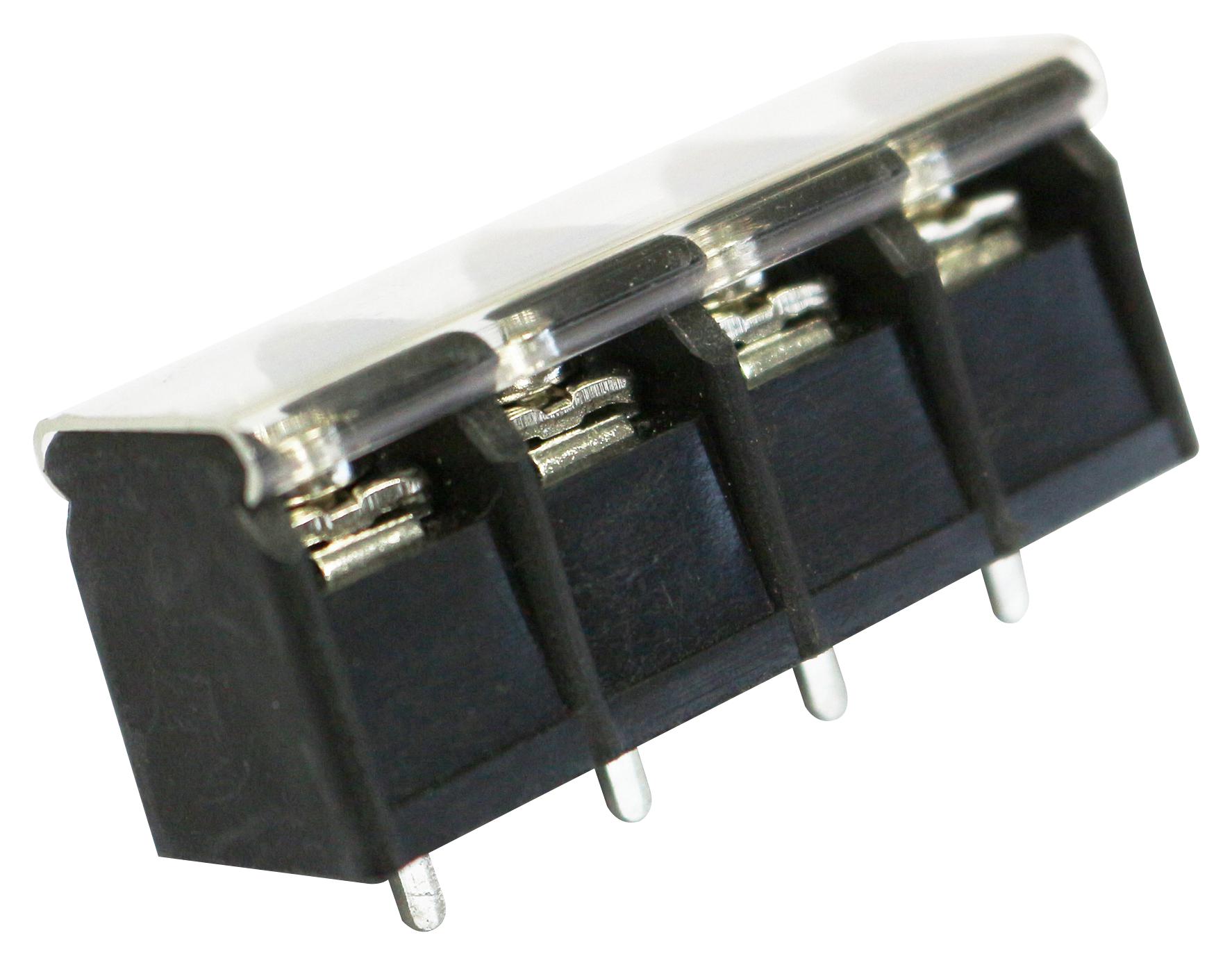

MULTICOMP PRO MC002085 Barrier Terminal Block
Barrier terminal blocks with 10mm pitch and 20A, 300V rating offer reliable wire connection in industrial and electrical applications. Constructed with insulating PBT bodies with UL94V-0 rating, these terminal blocks feature brass tin-plated terminals, steel screws with nickel plating, and a PVC cover for enhanced safety and durability. Available in various pole configurations from 2 to 9 poles, they support wire ranges from 14AWG to 22AWG and withstand operation temperatures from -40°C to +120°C. Suitable for control panels, automation systems, and wiring solutions requiring secure, insulated connections.
MULTICOMP PRO MC002085 Barrier Terminal Block Specifications:
- Current Rating: 20 Amp AC at 300V
- Insulation withstands Voltage: AC2000V minimum
- Insulation Resistance: >2000MΩ DC 500V
- Operation Temperature: -40°C to +120°C
- Wire Range: 14AWG to 22AWG
- Screw Torque: 16lb-inch
- Pitch: 10mm
- Material: PBT (UL94V-0) black insulating body, brass tin-plated terminals, steel nickel-plated screws, PVC cover
- Poles: 2, 3, 5, 7, 9
- Dimensions: Poles vary from 21.8mm to 91.8mm, distances between poles range from 10mm to 80mm
Buy the Buy multicomp Barrier Terminal Block Part Number MC002085 Online
Purchase the multicomp Barrier Terminal Block MC002085 online today and ensure safe, stable electrical connections for your control panels and wiring solutions. Featuring a 10mm pitch, 20A current rating, and 300V voltage capacity, this terminal block includes a cover for added insulation and safety. Available in 9 poles with versatile wire ranges from 14AWG to 22AWG, it withstands temperatures from -40°C to +120°C. Perfect for automation and industrial applications, ensuring high-quality, durable performance for your projects.
Buy multicomp MC002085 now and experience secure, reliable connections with high durability for industrial wiring and automation tasks.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002085?
You can click on the BUY or RFQ button to purchase MC002085 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002085?
You can download the MC002085 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002085?
MULTICOMP PRO
