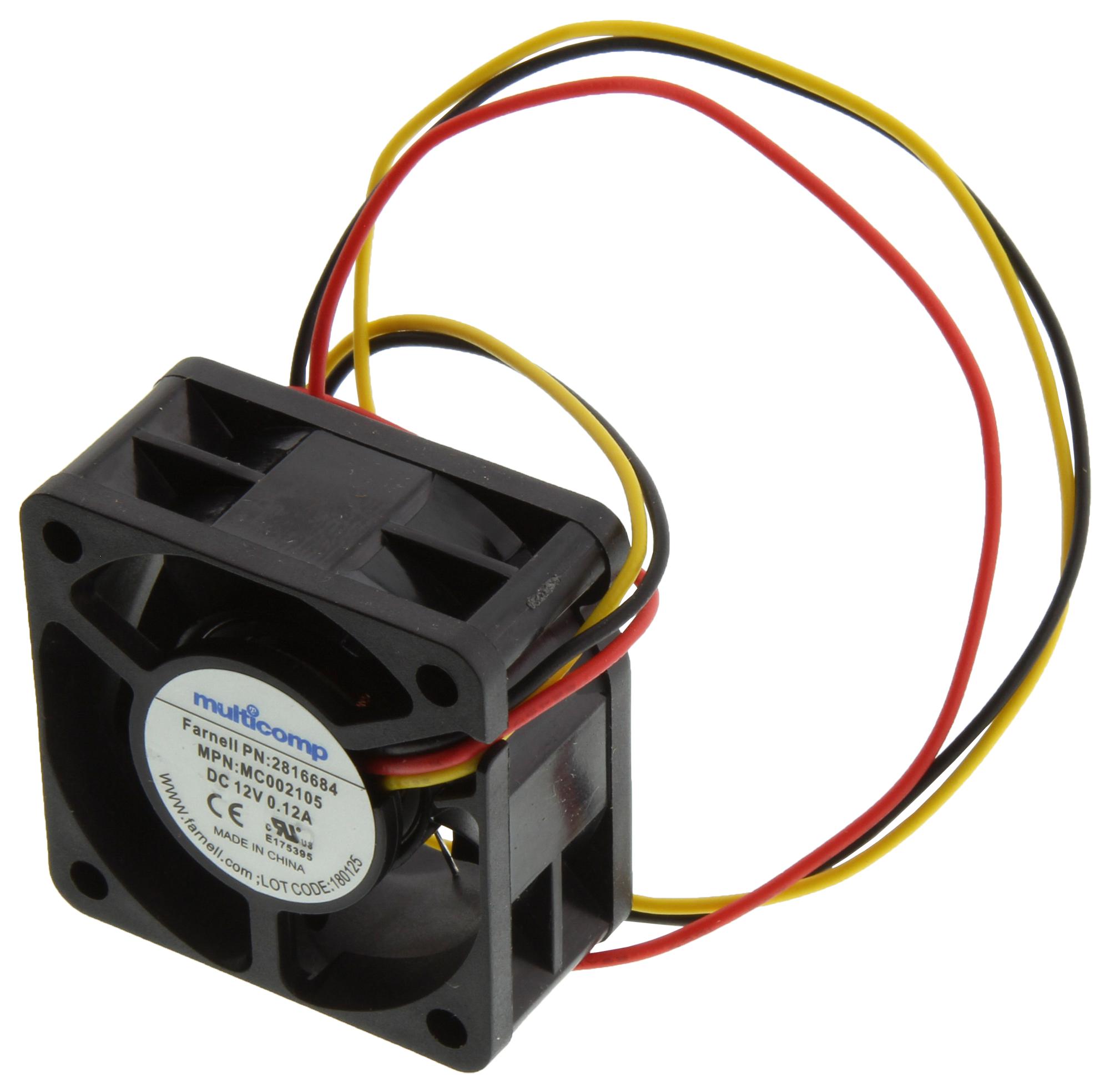

MULTICOMP PRO MC002105 Cooling Fan
This 40mm x 40mm x 20mm DC brushless cooling fan features a high airflow of 9.16 CFM and operates at 12V DC with a rated current of 0.12A. It utilizes a sleeve bearing for reliable performance and an estimated lifespan of 30,000 hours under typical conditions. The fan is constructed with a black PBT frame and blades, providing durable and stable operation. It is suitable for electronic cooling applications requiring efficient airflow, low noise emission at 36.31dB(A), and adherence to RoHS compliance standards. Operating temperature ranges from 2°C to 70°C, with storage temps up to 75°C.
MULTICOMP PRO MC002105 Cooling Fan Specifications:
- Dimension: 40mm x 40mm x 20mm
- Frame: Black PBT
- Blade: Black PBT (5 Blades)
- Bearing: Sleeve Bearing
- Lead Wire: 1007 26AWG Black (-), Red (+), Yellow (FG), Length: 300mm
- Life Expectancy: 30,000 hours (at 25°C, RH 65%)
- Speed: 8000 RPM ±10% (at rated voltage, after 3 mins)
- Air Flow: 9.16 CFM (at 0 Pa pressure)
- Air Pressure: 6.73 mm-H2O (at 0 CFM airflow)
- Noise Level: 36.31 dB(A)
- Rated Voltage: 12V DC
- Rated Current: 0.12A +0.03A (at rated voltage)
- Rated Power: 1.44 Watt ±10%
- Start-up Voltage: 10.2V DC to 13.8V DC
- Operating Voltage Range: 7V DC to 13.8V DC
- Operating Temperature: 2°C to +70°C
- Storage Temperature: -40°C to +75°C
- Operating Humidity: 135% to 85% RH
- Insulation Resistance: ≥10 MΩ (at 250V)
- Dielectric Withstand Voltage: 500V AC for 1 minute
- Compliance: RoHS
Buy the Multicomp Pro MC002105 – Reliable Cooling Fan for Industrial Applications
Purchase the Multicomp Pro cooling fan online today to ensure your electronic cooling needs are met with a highly reliable, durable, and efficient 40mm x 40mm x 20mm fan. This 12V DC fan features a high airflow rate of 9.16 CFM, operates quietly at 36.31dB, and has a lifespan of 30,000 hours, making it ideal for demanding industrial applications. With RoHS compliance, low noise, and stable operation across a wide temperature range, it’s the perfect choice for maintaining optimal thermal management in your equipment. Easy to install and energy-efficient, order now to enhance your system performance.
Get Multicomp Pro MC002105 today—built for precision, durability, and efficient electronic cooling.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002105?
You can click on the BUY or RFQ button to purchase MC002105 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002105?
You can download the MC002105 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002105?
MULTICOMP PRO
