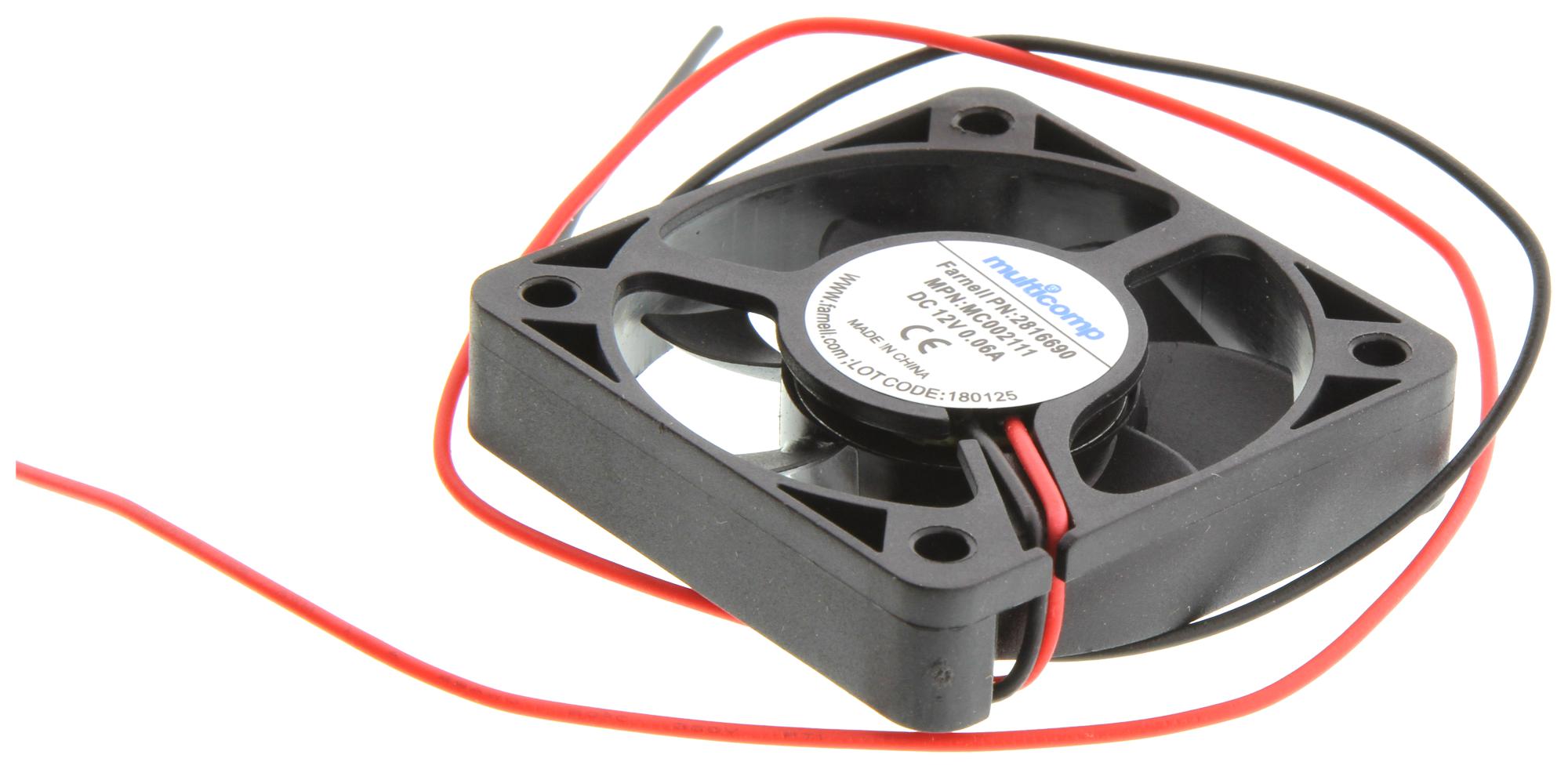

MULTICOMP PRO MC002111 DC Cooling Fan
The DC Brushless Cooling Fan offers efficient airflow with a rated voltage of 12V DC and a rated current of 0.06A. Designed with a durable PBT housing and sleeve bearing, it features a compact size and high-speed operation at 5000 RPM. Suitable for electronic cooling applications, it withstands temperatures from -40°C to +80°C and environments with 145% to 85% relative humidity. Its rugged construction ensures a lifespan of over 30,000 hours under standard operating conditions. Ideal for industrial and computing cooling needs, this fan provides quiet operation with noise levels below 20dB and reliable performance in harsh environments.
MULTICOMP PRO MC002111 DC Cooling Fan Specifications:
- Rated Voltage: 12V DC
- Rated Current: 0.06A +0.02A
- Startup Voltage: 7V DC
- Rated Input Power: 0.72W
- Operating Voltage Range: 10.2V to 13.8V DC
- Operating Temperature: -40°C to +80°C
- Storage Temperature: -40°C to +80°C
- Speed: 5000 RPM ±10% (3 Min.)
- Housing Material: UL94V-0 PBT
- Bearing Type: Sleeve
- Lead Wires: UL1007 26AWG, Length: 270mm
- Max Air Flow: 10.43 CFM at air pressure 0
- Max Air Pressure: 2.52 mm H2O
- Noise Level: 20 dB or less at 1m distance
- Insulation Resistance: Min 10 MΩ at DC 250V
- Dielectric Withstand Voltage: AC 500V
- Vibration Resistance: 3-5Hz, 0.04 mm peak-to-peak
- Shock Resistance: 60g for 11 ms
- Lifespan: Over 30,000 hours at 25°C/45-85% RH
- Dimensions: 50.0±0.5mm x 40.0±0.3mm
Buy the Buy Multicomp DC Brushless Cooling Fan Part Number MC002111 Online
Enhance your electronic cooling system with the durable and efficient Multicomp DC Cooling Fan. Operating at 12V DC with a speed of 5000 RPM, it offers quiet operation below 20dB. Built with UL94V-0 PBT housing and sleeve bearing, it ensures long-lasting performance over 30,000 hours. Suitable for industrial, computing, and professional cooling applications, this fan withstands extreme temperatures from -40°C to +80°C and features reliable insulation and resistance to vibration and shocks. Order online today for fast delivery and optimal cooling performance.
Buy Multicomp MC002111 now and experience unmatched reliability and high-speed cooling performance for electronic devices.
