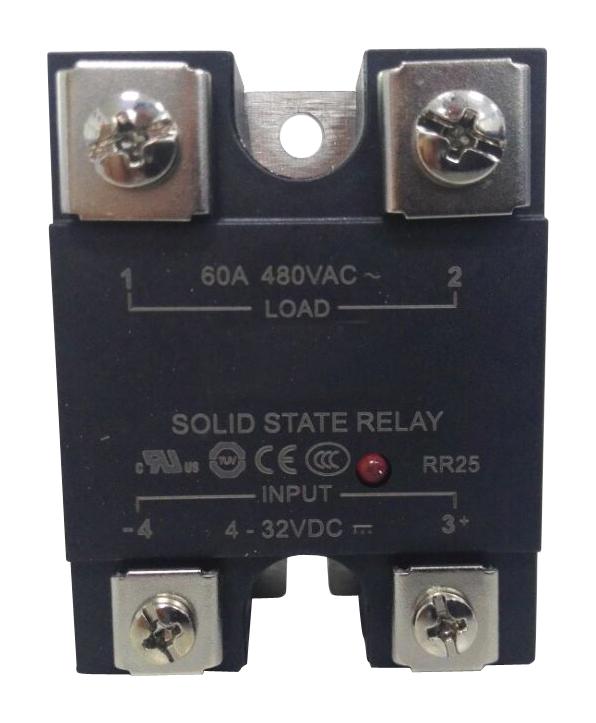

MULTICOMP PRO MC002346 Solid State Relay
The single-phase panel mount solid state relay from Multicomp Pro is designed for industrial automation, supporting resistive, inductive, and capacitive loads. It features internal SCR inverse parallel output, zero switching, and current ratings from 25A to 60A with voltage ranges of 240V AC and 480V AC. The relay includes optal insulation, resistors, capacitors, varistor protection, and error inspection functions for reliable operation. Suitable for diverse industrial applications, it provides quick switching times, high dielectric strength, and internal RC & MOV protections, ensuring efficient and durable performance.
MULTICOMP PRO MC002346 Solid State Relay Specifications:
- Rated Current: 25A-60A @ 150-530V AC
- Output Voltage Range: 240V AC 150-280V AC, 480V AC 150-530V AC
- Maximum Surge Current: 60A @10ms, 600A
- Maximum Off-state Leakage Current: 5mA
- Maximum On-state Voltage Drop: 1.6Vrms
- Dielectric Strength: >4000Vrms input/output, >22500Vrms input/output/base
- Insulation Resistance: 1000MΩ (@500V DC)
- Ambient Operating Temperature: -30°C to +80°C
- Ambient Storage Temperature: -30°C to +100°C
- Weight: 100g
- Control Voltage Range: Negative trigger 0-12V DC, Positive trigger 18-32V DC
- Input Power Supply: 18V DC to 32V DC
- Maximum Input Current: 4mA
- Max Turn-on/Off Time: 10ms
- Isolation: >4000Vrms, 22500Vrms (input/output/base)
Buy the Buy Multicomp Pro Panel Mount Solid State Relay Part Number MC002346 Online
Enhance your industrial automation setup with the high-performance Multicomp Pro Solid State Relay, supporting up to 60A current and dual voltage ratings of 240V and 480V AC. This panel-mounted device features zero switching, internal protections, and fast response times, making it perfect for resistive, inductive, and capacitive loads. Reliable and durable, it offers excellent insulation and surge resistance. Purchase online today to add a dependable, efficient switching component to your control system with confidence and ease.
Order your Multicomp Pro Series MC002346 panel mount solid state relay today and ensure reliable, high-current switching for your industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002346?
You can click on the BUY or RFQ button to purchase MC002346 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002346?
You can download the MC002346 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002346?
MULTICOMP PRO
