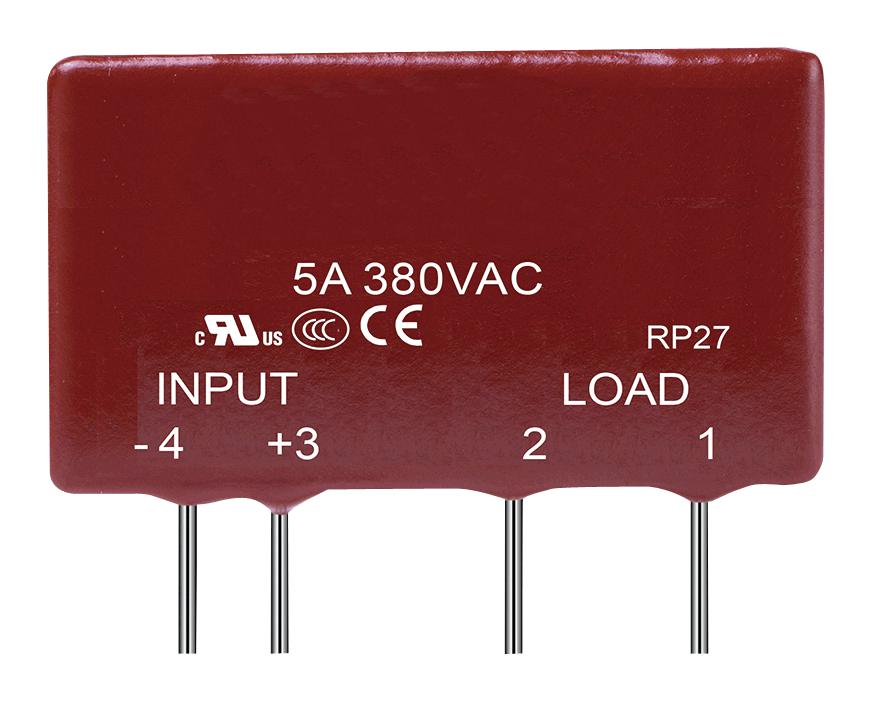

MULTICOMP-PRO MC002250 Solid State Relay
This PCB mounted solid state relay supports single-phase AC output with load currents of 3A, 5A, and 5A, featuring zero cross and random-on switching control options. It offers control voltages from 4-15VDC, 15-32VDC, and 4-32VDC, with opto-isolation of 4000VACrms, suitable for industrial applications like lighting, motor, and medical device control. The relay features high inrush current capability, a quick response time of 10ms for turn-on and turn-off, and broad voltage ratings up to 530VAC. It operates within a temperature range of -30°C to +80°C and offers robust dielectric strength and transient overvoltage protection, making it ideal for factory automation and control systems.
MULTICOMP-PRO MC002250 Solid State Relay Specifications:
- Load Current Range: 3A, 5A
- Load Voltage Range: 240V AC, 24-280V AC, up to 530V AC transient overvoltage
- Control Voltage: 4-15V DC, 15-32V DC, 4-32V DC
- Opto-isolation: 4000VACrms
- Maximum Turn-on/Off Time: 10ms
- Maximum Surge Current: 250A (@10 ms for 3A, 200A for 5A)
- Maximum Off-State Leakage: 1.5mA
- Maximum On-State Voltage Drop: 1.5V (@ Rated Current)
- Operating Temperature Range: -30°C to +80°C
- Dielectric Strength: 4000Vrms
- Ambient Storage Temperature: -30°C to +100°C
- Weight: 11.8g
Buy the Multicomp PCB Mount – Reliable Solid State Relay for Industrial Applications
Enhance your industrial control systems with the high-quality solid state relay available online. Designed for quick switching and supporting load currents up to 5A, this relay offers robust opto-isolation, high surge current capacity, and efficient AC switching. Perfect for lighting, motor, and medical device controls, it ensures reliable operation under harsh conditions. Easy to install and compatible with control voltages up to 32V DC, ordering online guarantees fast delivery and trusted quality for all your automation needs.
Order your Multicomp Series MC002250 PCB Mount Solid State Relay today and equip your automation systems with dependable, high-capacity switching performance.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC002250?
You can click on the BUY or RFQ button to purchase MC002250 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002250?
You can download the MC002250 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC002250?
MULTICOMP-PRO
