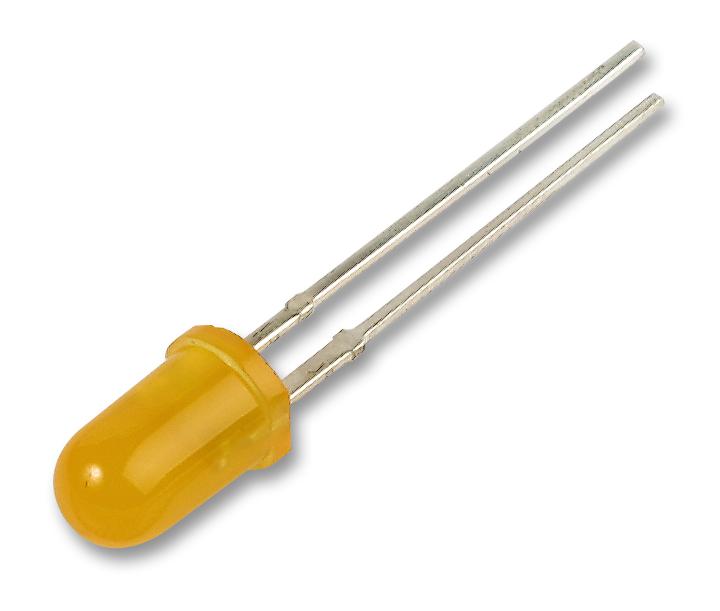

MULTICOMP PRO MCL053BD Indication LED
The Amber 5mm round LED with a 36° viewing angle from Multicomp Pro offers reliable illumination for various electronic and industrial applications. It features GaAsP on GaP dice, with a peak wavelength of 610nm, luminous intensity of 16mcd, and operates within -40°C to +85°C temperature range. The LED's dimensions are approximately 5mm in diameter with diffused amber lens. It supports forward voltages around 1.7V at 20mA, making it ideal for indicator lights, display panels, and signaling systems requiring clear amber light with high brightness and efficiency.
MULTICOMP PRO MCL053BD Indication LED Specifications:
- Dice Material: GaAsP on GaP
- Emitted Colour: Amber
- Lens Colour: Amber Diffused
- Peak Wavelength: 610nm
- Viewing Angle: 145°
- Luminous Intensity: 16mcd
- Reverse Voltage: 5V
- Reverse Current: 10uA
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Lead Soldering Temperature: 260°C for 5 seconds at 4.6mm from body
- Forward Voltage: 1.7V typical at 20mA
- Peak Forward Current: 100mA at 1/10 duty cycle
- Power Dissipation: up to 85mW
- Dimensions: 5mm diameter (millimetres), approximately 0.2 inches, with diffused amber lens
Buy the Multicomp Pro MCL053BD – Reliable Amber 5mm LED for Industrial Applications
Purchase the high-quality Amber 5mm LED from Multicomp Pro online today and ensure reliable illumination for your electronic projects. With a peak wavelength of 610nm and luminous intensity of 16mcd, this LED is designed for durability and brightness. Its diffusion lens provides wide viewing angles up to 145°, making it ideal for indicators, displays, and signaling systems. Operating efficiently within -40°C to +85°C, it offers excellent performance in diverse environments. Buy now and enhance your electronics with this dependable, RoHS compliant LED, engineered for precision and longevity.
Get Multicomp Pro MCL053BD today—built for high brightness and long-lasting durability, perfect for indicator and signaling applications.
