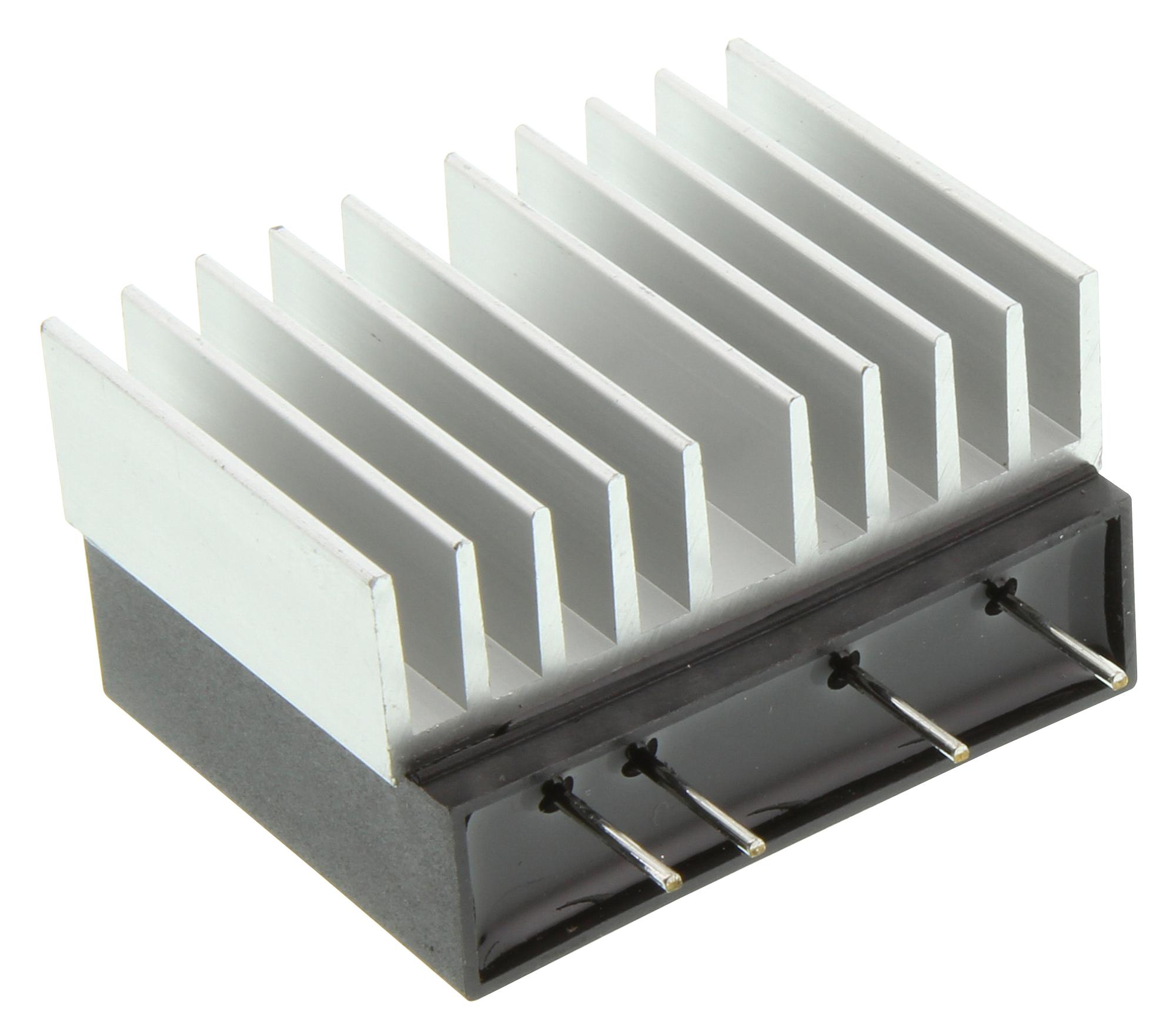

MULTICOMP PRO MC002252 Solid State Relay
This PCB mount solid state relay from Multicomp Pro is designed for single-phase AC output applications, rated at 25A and 240V AC. It features a control voltage range of 4-32V DC, zero-crossing or random-on switching, and an SCR output with built-in RC snubber circuit. Suitable for resistive, inductive, or capacitive loads, it offers quick switching with 10ms turn-on and off times, and supports overload surges up to 250A. Ideal for lighting control, medical equipment, elevator systems, and electric doors, it operates efficiently in temperatures from -30°C to +80°C with a lightweight design of 50g.
MULTICOMP PRO MC002252 Solid State Relay Specifications:
- Control Voltage Range: 4-32V DC
- Minimum Turn-on Voltage: 4V DC
- Minimum Turn-off Voltage: 1V DC
- Output Load Voltage Range: 24-280V AC
- Rated Load Current: 25A @ 24-280V AC
- Maximum Surge Current: 250A
- Maximum Turn-on Time: 10ms
- Maximum Turn-off Time: 10ms
- Maximum Off-State Leakage Current: 5mA with RC
- Maximum On-State Voltage Drop: 1.5Vrms
- Transient Over Voltage: 600Vpk
- Maximum Off-State dv/dt: 500 Vins
- Ambient Operating Temperature: -30°C to +80°C
- Ambient Storage Temperature: -30°C to +100°C
- Weight: 50g
Buy the Multicomp Series PCB Mount Solid State Relay: MC002252
Discover the reliable performance of the Multicomp Series Solid State Relay designed for single-phase AC loads up to 25A at 240V. Easy to PCB mount, it offers zero-crossing or random-on switching, making it ideal for diverse applications like lighting control, medical equipment, and elevator systems. Featuring a control voltage range of 4-32V DC, with built-in RC snubber circuit options for enhanced protection, this relay supports overload surges up to 250A and operates efficiently from -30°C to +80°C. Buy online now for dependable industrial switching solutions.
Order your Multicomp Series PCB Mount Solid State Relay MC002252 today and enhance your industrial automation with reliable switching performance.
