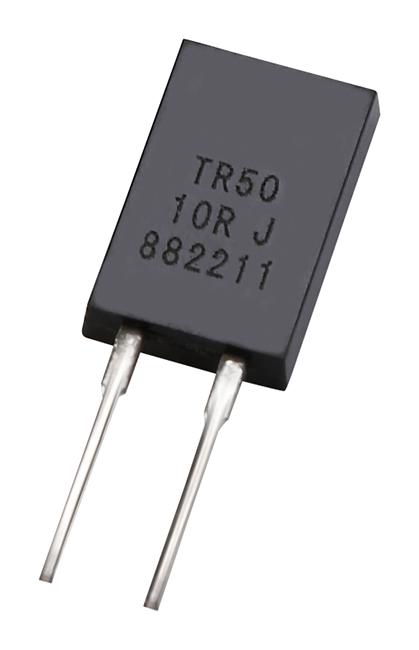

MULTICOMP PRO MCTR50FDE0100 High Power Resistor
The multicomp power resistor provides reliable performance with a 50-watt capacity at 25°C, housed in a TO-220 style package with molded case for protection. It features a non-inductive design suitable for high-frequency pulsing applications, voltage regulation, switching power supplies, and UPS systems. Constructed with an alumina substrate, resistor layer, lead, and mold, it ensures excellent heat dissipation and electrical isolation. Certified RoHS compliant, rated for a maximum operating voltage of 350V, and with a temperature range from -65°C to +150°C, it delivers high accuracy and durability in demanding environments.
MULTICOMP PRO MCTR50FDE0100 High Power Resistor Specifications:
- Power Rating: 50 W at 25°C case temperature
- Maximum Operating Voltage: 350 V
- Dielectric Strength: 1,800 V AC
- Insulation Resistance: 10 GΩ minimum
- Temperature Range: -65°C to +150°C
- Thermal Derating: Consult datasheet for details
- Case Material: Molded thermally conductive housing
- Resistive Element: Alumina substrate with resistor layer
- Lead Material: Tinned copper
- Size: TO-220 style package
- RoHS Compliant
- TCR: Referenced to 25°C, typical ±100 PPM/°C
- Operating Current: Up to 0.43 A
- Short Time Overload: 2× rated power, for 5 seconds
- Load Life Stability: ±1% over 2000 hours at rated power
- Vibration Resistance: 20g peak
- Environmental Resistance: Damp heat, thermal shock, and vibration tested
Buy the Buy multicomp Power Resistor Part Number MCTR50FDE0100 Online
Enhance your electronic projects and industrial systems with the multicomp high power resistor, rated at 50W with a TO-220 package for easy mounting and heat sinking. Perfect for pulsing, high-frequency switching power supplies, and voltage regulation applications, it features a molded case for protection and electrical isolation. Certified RoHS compliant, with a broad temperature range from -65°C to +150°C, it offers excellent durability and thermal stability. Suitable for demanding environments, this resistor ensures reliable operation, easy installation, and long-term performance in industrial and manufacturing applications.
Buy multicomp MCTR50FDE0100 now and experience unmatched reliability and performance in high-power resistor applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCTR50FDE0100?
You can click on the BUY or RFQ button to purchase MCTR50FDE0100 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTR50FDE0100?
You can download the MCTR50FDE0100 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCTR50FDE0100?
MULTICOMP PRO
