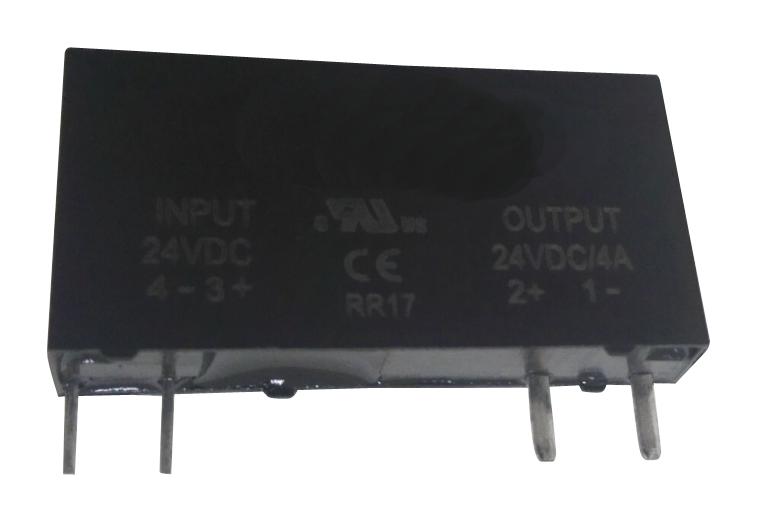

MULTICOMP PRO MC002261 Solid State Relay
This PCB mount solid state relay supports single-phase DC output with control voltages of 12V or 24V DC and load currents up to 4A. Suitable for PLC control of socket installations, it features MOSFET output, dielectric strength of 2500V AC, and quick switching times of 300 microseconds. The relay can handle load voltages of 24V or 48V DC, with a transient surge capability up to 58V DC. Compact and reliable, it operates within -30°C to +80°C, ideal for industrial automation applications requiring fast, efficient switching of DC loads.
MULTICOMP PRO MC002261 Solid State Relay Specifications:
- Control Voltage Range: 12V DC (9.6-14.4V), 24V DC (19.2-28.8V)
- Must Turn-On Voltage: 12V DC at 9.6V, 24V DC at 19.2V
- Must Turn-Off Voltage: 1V DC
- Maximum Input Current: 25mA
- Load Voltage Range: 24V DC (3-28V), 48V DC (3-58V), transient surge up to 58V DC
- Load Current Range: 0.1A (0.001-0.1A), 4A (0.02-4A)
- Maximum Turn-On/Off Time: 300 microseconds
- Maximum Surge Current: 1A (10 ms), 48A
- Leakage Current: 0.1mA at rated voltage
- Maximum On-State Resistance: 37 milliohms at 4A
- Dielectric Strength: 2500V AC (input/output)
- Ambient Operating Temperature: -30°C to +80°C
- Storage Temperature Range: -30°C to +100°C
- Weight: 4 grams
Buy the Multicomp Pro MC002261 – Reliable Solid State Relay for Industrial Applications
Purchase the reliable solid state relay today online. Designed for industrial automation, it features quick switching times, high dielectric strength, and a compact PCB mount form. Ideal for controlling DC loads in PLC systems with easy installation and robust performance under temperature variations. Whether for new installations or upgrades, this high-quality relay ensures efficient, fast switching with minimal leakage current, making it perfect for industrial applications where dependability and quick response are critical for maintaining operational efficiency.
Get Multicomp Pro MC002261 today—built for precision and long-lasting durability, perfect for efficient DC switching and automation.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002261?
You can click on the BUY or RFQ button to purchase MC002261 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002261?
You can download the MC002261 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002261?
MULTICOMP PRO
