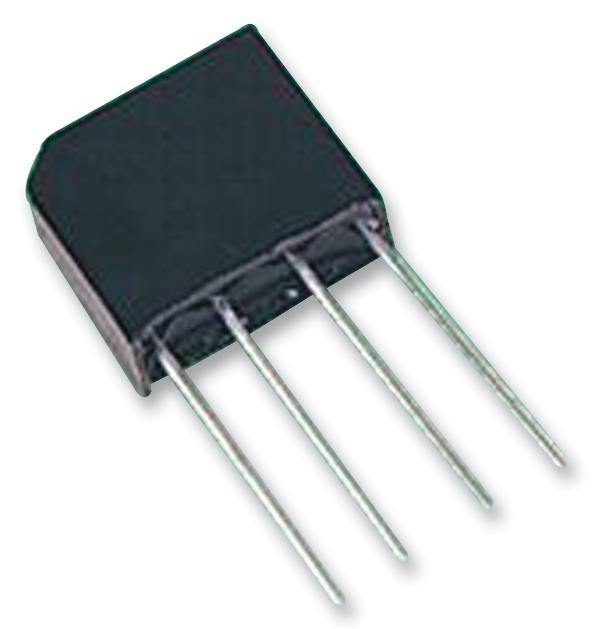

MULTICOMP PRO KBL02G Bridge Rectifier
The multicomp PRO glass passivated bridge rectifier KBL02G is designed for efficient AC to DC conversion in electronic circuits. With a peak surge current of 125A and a reverse voltage of 200V, it offers high reliability and thermal stability. Its compact size and mounting flexibility make it suitable for printed circuit boards and space-constrained applications. The rectifier features low forward voltage drop of 1.1V at 4A and operates within a temperature range of -55°C to +150°C, ensuring durability in various operating environments. Ideal for power supplies and industrial electronics, this component guarantees long-lasting performance with UL 94-0 flammability classification and glass passivation technology for enhanced lifespan.
MULTICOMP PRO KBL02G Bridge Rectifier Specifications:
- Peak Surge Current: 125A
- Reverse Voltage: 100V (KBLO1G), 200V (KBLO2G)
- RMS Bridge Input Voltage: 70V (KBLO1G), 140V (KBLO2G)
- Forward Voltage Drop: 1.1V at 4A
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Mounting Position: Any
- Material: Glass passivated, UL 94-0 flammability
- Dimensions: 0.750 inches (19.0mm) x 0.256 inches (6.5mm) x 0.180 inches (4.6mm)
- Maximum Recurrent Peak Reverse Voltage: 100V (KBLO1G), 200V (KBLO2G)
- Thermal Resistance Junction to Ambient: Specified in datasheet
- Peak Forward Surge Current: 125A
- Maximum DC Reverse Current: 10A at rated voltage
- Peak Forward Voltage at 4A: 1.1V
Buy the Buy multicomp PRO Bridge Rectifier Part Number KBL02G Online
Purchase the multicomp PRO KBL02G Bridge Rectifier online today for dependable AC to DC conversion. Its high surge current rating of 125A and 200V reverse voltage makes it perfect for industrial power supplies and electronic projects. The compact design and UL flammability classification ensure safety and ease of use on printed circuit boards. With a low forward voltage drop of 1.1V at 4A and a wide operating temperature range, this rectifier guarantees longevity and consistent performance in various environments. Ideal for engineers seeking durability and efficiency in power management applications.
Get multicomp PRO KBL02G today—designed for high surge capacity and reliable power rectification in demanding applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO KBL02G?
You can click on the BUY or RFQ button to purchase KBL02G from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part KBL02G?
You can download the KBL02G datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of KBL02G?
MULTICOMP PRO
