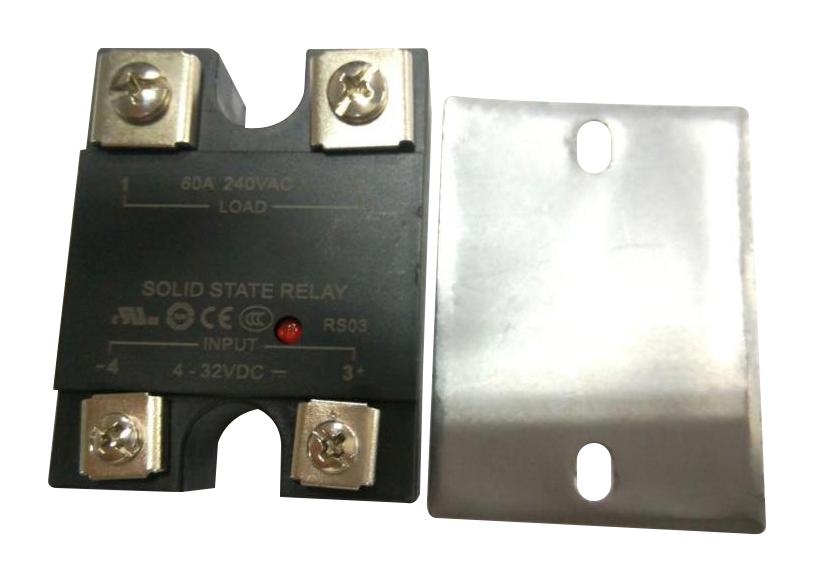

MULTICOMP-PRO MC002322 Solid State Relay
This high-current panel mount solid state relay offers reliable control for resistive, inductive, and capacitive loads with load currents from 10A to 125A and voltage ratings up to 600V AC. It features zero crossing operation, TRIAC or SCR output, AC or DC control voltage compatibility, and a dielectric strength of 24,000V. Suitable for industrial automation, HVAC systems, food processing, and machinery, it includes built-in MOV or TVS options for surge protection and LED indicators for status monitoring. Designed for high durability and efficient load switching, this relay ensures safe, stable operation under demanding conditions.
MULTICOMP-PRO MC002322 Solid State Relay Specifications:
- Load Current Range: 10A to 125A at 48V to 660V AC
- Load Voltage Range: 240V AC, 480V AC, 600V AC
- Supply Control Voltage: 4-32V DC and 90-280V AC
- Switching Type: Zero Crossing or Random ON
- Dielectric Strength: 24,000V AC rms
- Surge Current: up to 1250A @ 10ms for 125A model
- Maximum Off-State Leakage Current: 5mA at rated voltage
- Operating Temperature Range: -30°C to +80°C
- Material: High durability construction with optional heatsink
- Protection: Build-in MOV or TVS options available
- Physical Dimensions: Vary per model, standard mounting
- Standards Compliance: RoHS, UL listing
Buy the Multicomp Series Solid State Relay: 600V AC Load Switching
Enhance your industrial control systems with this reliable solid state relay. Featuring high load capacity up to 125A, voltage ratings up to 600V AC, and zero crossing operation, it provides efficient switching for resistive, inductive, and capacitive loads. Suitable for HVAC, machinery, and automation projects, its robust design ensures safety, durability, and seamless performance. Order online now to benefit from fast shipping, competitive pricing, and get your system running smoothly with dependable relay technology.
Get Multicomp solid state relay MC002322 today—built for precision and long-lasting durability in industrial automation and control applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC002322?
You can click on the BUY or RFQ button to purchase MC002322 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002322?
You can download the MC002322 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC002322?
MULTICOMP-PRO
