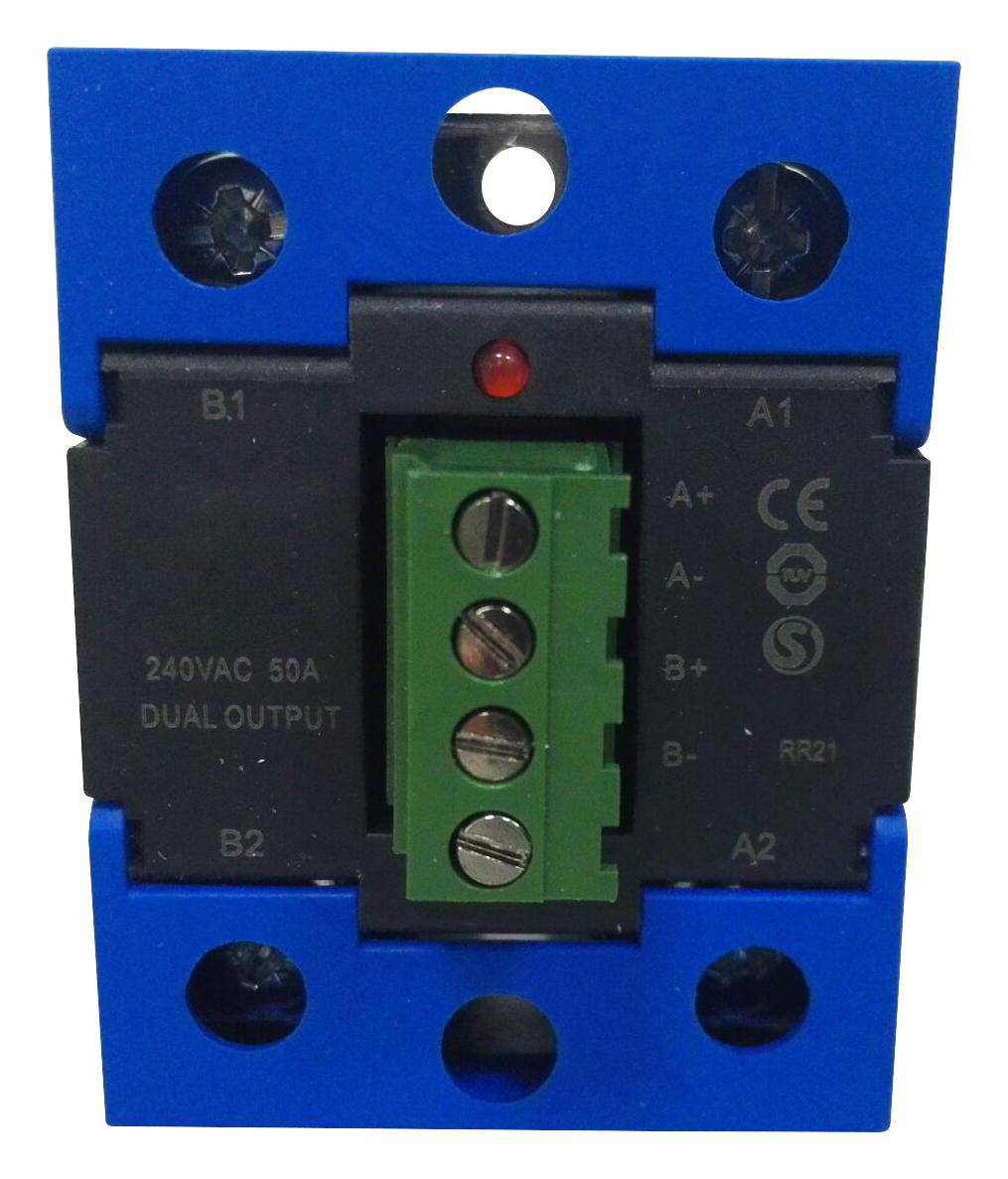

MULTICOMP-PRO MC002348 Dual-Channel Solid State Relay
The panel mount solid state relay with dual AC output channels is ideal for industrial automation and control systems. Featuring SCR output, it handles loads from 24V to 530V AC at currents of 25A and 50A, suitable for resistive, inductive, or capacitive loads. The relay supports zero crossing or random-on operation, with fast switching times of 10ms, and transient overvoltage protection up to 1200Vpk. Its compact design, screw terminal installation, and wide temperature range of -30°C to +80°C make it a reliable choice for high-performance industrial applications, offering long-lasting durability and efficiency.
MULTICOMP-PRO MC002348 Dual-Channel Solid State Relay Specifications:
- Load Voltage Range: 24-530V AC
- Load Current: 25A and 50A
- Control Voltage Range: 4-15V DC, 15-32V DC
- Maximum Surge Current: 300A @10ms, 500A @10ms
- Switching Time: 10ms (zero crossing), 10ms (random-on)
- Transient Overvoltage: 1200Vpk
- Dielectric Strength: 4000Vrms (Input/Output), 2500Vrms (Input/Output/Base)
- Ambient Operating Temp: -30°C to +80°C
- Storage Temp: -30°C to +100°C
- Maximum Off-State Leakage: 5mA
- On-State Voltage Drop: 1.5V
- Isolation: 4000Vrms (Input/Output), 2500Vrms (Input/Output/Base)
- Installation: Screw Terminal (IP20)
Buy the Multicomp Pro MC002348 – Reliable Dual-Channel AC Solid State Relay for Industrial Applications
Purchase the Multicomp Pro dual-channel solid state relay online today and experience reliable control for industrial automation. Designed with SCR output and rated at 25A and 50A, it supports loads from 24V to 530V AC for resistive, inductive, or capacitive applications. Its fast switching times of 10ms and transient overvoltage protection ensure durability and efficiency. Easy screw terminal installation, wide temperature range, and robust construction make this relay ideal for high-demand environments like HVAC, machinery, and automation systems. Order now for seamless integration into your control systems.
Get Multicomp Pro MC002348 today—built for precision, long-lasting durability, and seamless industrial automation.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC002348?
You can click on the BUY or RFQ button to purchase MC002348 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002348?
You can download the MC002348 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC002348?
MULTICOMP-PRO
