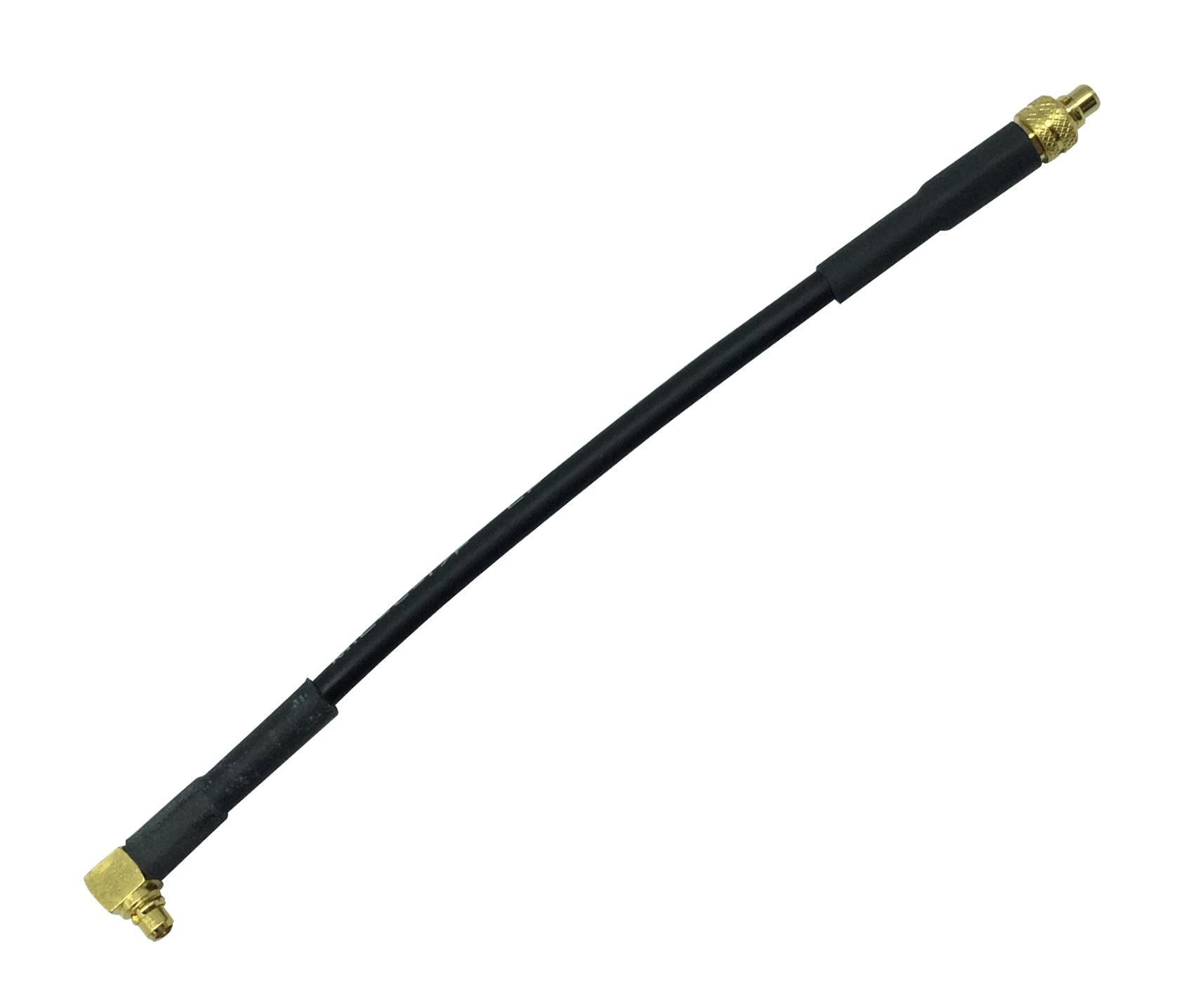

MULTICOMP PRO MC002991 RF Cable Assembly
This RF cable assembly features a MMCX right angle plug and a straight plug, constructed with RG-174 cable and gold-plated brass/Beryllium Copper contacts. It operates within a frequency range of 0-1 GHz, providing excellent impedance matching and low VSWR of 1.5@1GHz. The assembly is RoHS compliant, with a cable length of 95mm, and is rated for 250V RMS voltage and 1000 MΩ insulation resistance. Suitable for RF signal transmission, it offers snap-on coupling, high durability of 500 mating cycles, and uses durable PTFE dielectric insulation for optimal performance.
MULTICOMP PRO MC002991 RF Cable Assembly Specifications:
- Cable Length: 95mm / 3.74"
- Connector Type A: MMCX Straight Plug
- Connector Type B: MMCX Right Angle Plug
- Cable Type: RG-174
- Jacket Colour: Black
- Impedance: 50Ω
- Frequency Range: 0-1 GHz
- VSWR: 1.5@1 GHz
- Return Loss: 13.979dB@1 GHz
- Voltage Rating: 250V RMS
- Insulation Resistance: 1,000 MΩ Min.
- Dielectric Withstanding Voltage: 500V AC / 1 min.
- Centre Contact Resistance: 5mΩ Max.
- Outer Contact Resistance: 2.5mΩ Max.
- Mating Durability: 500 cycles
- Body Material: Brass/Beryllium Copper, Gold Plated
- Centre Contact Material: Brass, Gold Plated
- Insulating Material: PTFE
- RoHS Compliance: Yes
Buy the Buy multicomp RF Cable Assembly Part Number MC002991 Online
Purchase the multicomp RF cable assembly with MMCX straight and right angle plugs, featuring RG-174 cable, high durability, and RoHS compliance. Designed for stable RF signal transmission up to 1 GHz, it offers low VSWR, high insulation resistance, and snap-on coupling for easy connection. With a cable length of 95mm and gold-plated contacts, this assembly ensures long-lasting performance in your RF applications. Ideal for telecommunications, testing, and communication systems, it combines quality and reliability, making it the perfect choice for professional use.
Get multicomp RF Cable Assembly MC002991 today—built for reliable RF signal transmission and durable performance across 0-1 GHz applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002991?
You can click on the BUY or RFQ button to purchase MC002991 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002991?
You can download the MC002991 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002991?
MULTICOMP PRO
