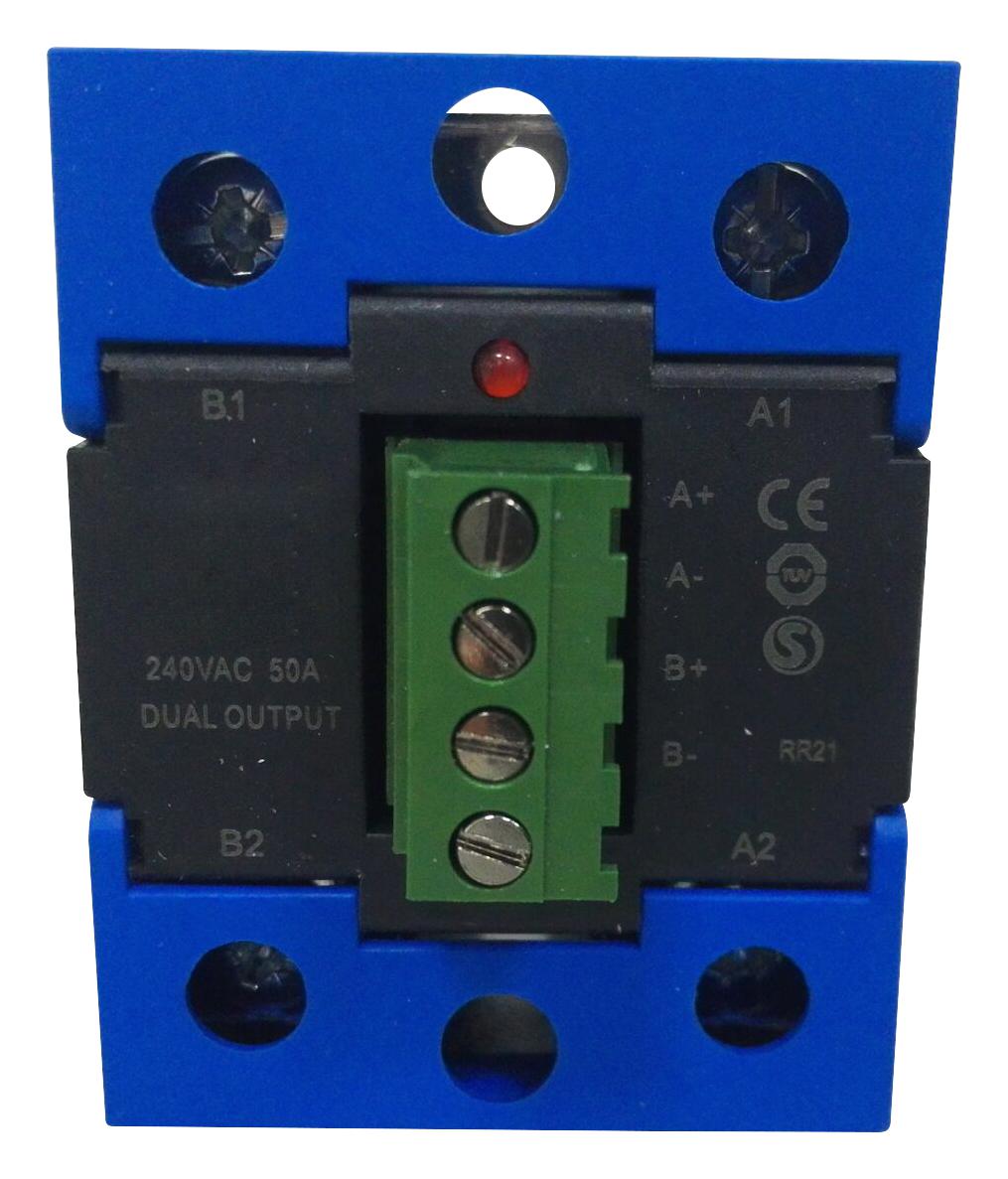

MULTICOMP PRO MC002351 Solid State Relay
This panel mount solid state relay with 2-channel AC output is ideal for industrial automation and control applications. Featuring SCR output, it supports resistive, inductive, or capacitive loads with a rated load current of 25A and 50A, voltage range of 24-530V AC, and DC input control circuitry of 4-15V DC. The relay offers zero crossing or random-on switching, with fast turn-on and turn-off times and surge current capacity up to 500A. Its compact design, IP20 protection, and wide temperature range make it suitable for HVAC, machinery, and automation systems, ensuring reliable performance in demanding environments.
MULTICOMP PRO MC002351 Solid State Relay Specifications:
- Load Voltage Range: 24-530V AC
- Maximum Load Current: 25A or 50A
- Control Input Voltage Range: 4-15V DC, 15-32V DC
- Control Turn-on Voltage: 4V DC
- Must Turn-on Voltage: 15V DC
- Must Turn-off Voltage: 1V DC
- Maximum Input Current: 20mA
- Maximum Surge Current: 500A
- Maximum Turn-on/Off Time: 10ms
- Transient Over Voltage: 600Vpk (240V AC), 1200Vpk (480V AC)
- Leakage Current: 5mA at Rated Voltage
- Maximum On-State Voltage Drop: 1.5V at Rated Current
- Dielectric Strength: 4000Vrms (Input/Output), 2500Vrms (Input/Output/Base)
- Ambient Operating Temperature: -30°C to +80°C
- Ambient Storage Temperature: -30°C to +100°C
- Protection Class: IP20
- Dimensions: See technical diagrams
- Control Method: Zero crossing or random-on switching
- Screw Terminal: IP20
- Isolation Voltage: 4000Vrms (Input/Output)
Buy the Multicomp Pro MC002351 – Reliable Solid State Relay for Industrial Applications
Purchase the Multicomp Pro solid state relay MC002351 online today to ensure reliable, fast switching performance for industrial automation, HVAC, and machinery control. Designed with SCR output, supporting loads up to 50A at 530V AC, with zero crossing and random-on options. Its compact IP20 design offers excellent protection and safety. Whether you need to control resistive or inductive loads, this relay provides low leakage, quick response times, and high surge capacity, making it ideal for demanding industrial environments. Buy now for reliable operation and long-term durability.
Get Multicomp Pro MC002351 today—built for precision, robustness, and long-lasting durability in industrial automation and control systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002351?
You can click on the BUY or RFQ button to purchase MC002351 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002351?
You can download the MC002351 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002351?
MULTICOMP PRO
