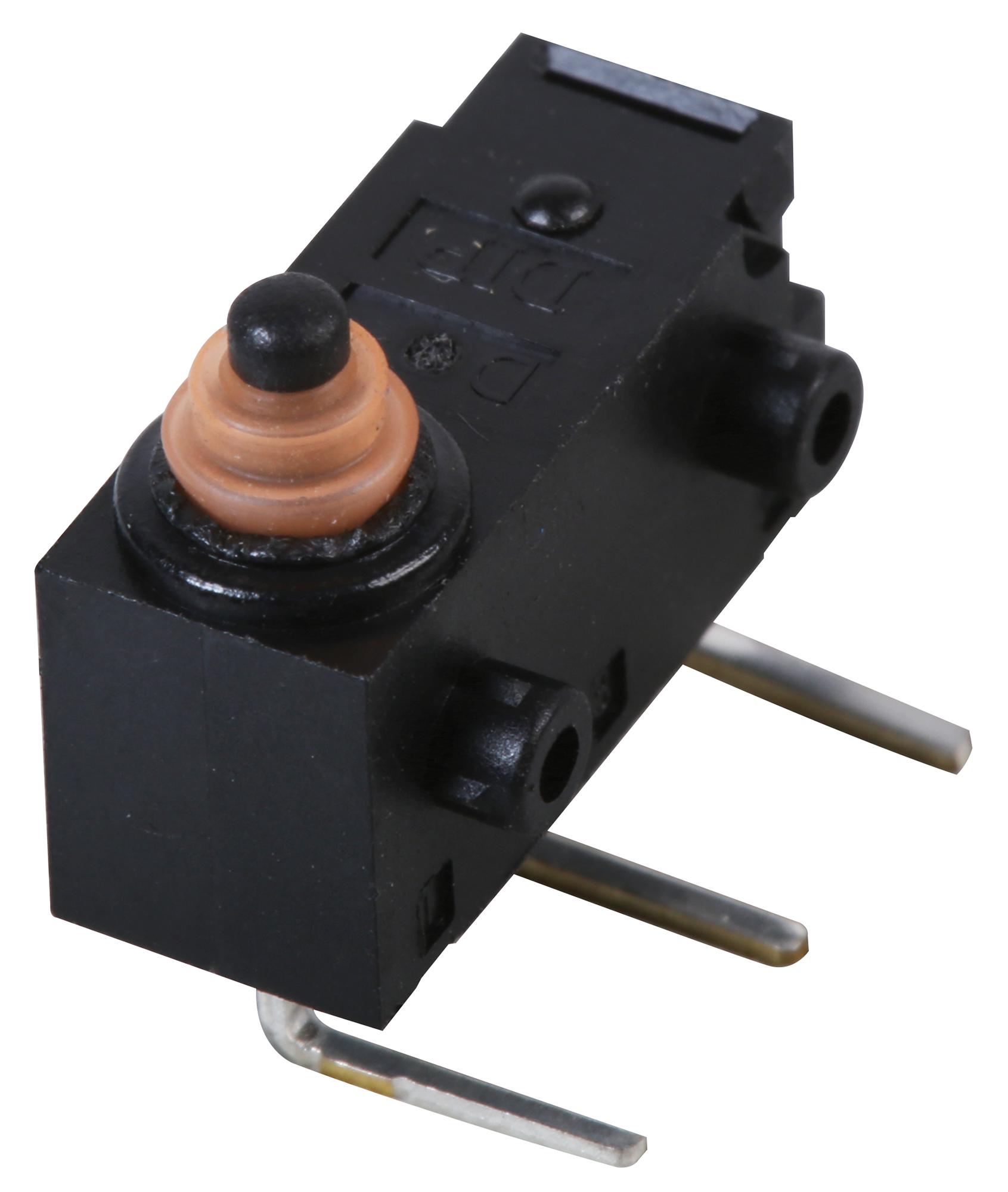

MULTICOMP PRO MP006230 Electrical Microswitch
The snap action microswitches are versatile electrical switches designed for precise control applications across various industries. Featuring SPDT configurations with options like pin plunger, lever, and sealed IP67 design, these switches support operating voltages up to 12V DC and currents of 2A. They offer mechanical durability over 1 million cycles and electrical longevity for 100,000 cycles. Suitable for automotive, household appliances, and vacuum cleaners, they are available with through-hole or PCB terminals, supporting a wide operating temperature range from -40°C to +85°C, ensuring reliable operation in demanding environments.
MULTICOMP PRO MP006230 Electrical Microswitch Specifications:
- Operating Voltage: Up to 12V DC
- Resistive Load: 2A
- Release Force: 10gf (0.1N) Min.
- Operating Force: 75gf (0.75N) Max.
- Overtravel: 1.4mm to 2.5mm
- Total Travel: 5.1mm to 9.5mm
- Temperature Range: -40°C to +85°C
- Contact Resistance: 150mΩ Max.
- Mechanical Durability: 1,000,000 cycles Min.
- Electrical Durability: 100,000 cycles Min.
- Insulation Resistance: 100MΩ Min. (at 500V DC)
- Dielectric Strength: 600V AC between terminals
Buy the Multicomp Pro MP006230 – Reliable Microswitch for Industrial Applications
Purchase the reliable Multicomp Pro MP006230 microswitch online today and benefit from its high durability, precise switching, and versatile configurations. Whether you need SPDT contacts with pin plunger, lever, or sealed IP67 design, this switch offers excellent performance across a wide temperature range from -40°C to +85°C. Its rated voltage of up to 12V DC and 2A current capacity makes it ideal for automotive, household, and industrial applications. Secure fast delivery and elevate your project’s dependability with our trusted online platform.
Order your Multicomp Pro MP006230 microswitch today and ensure dependable performance in your industrial control or automation projects.
