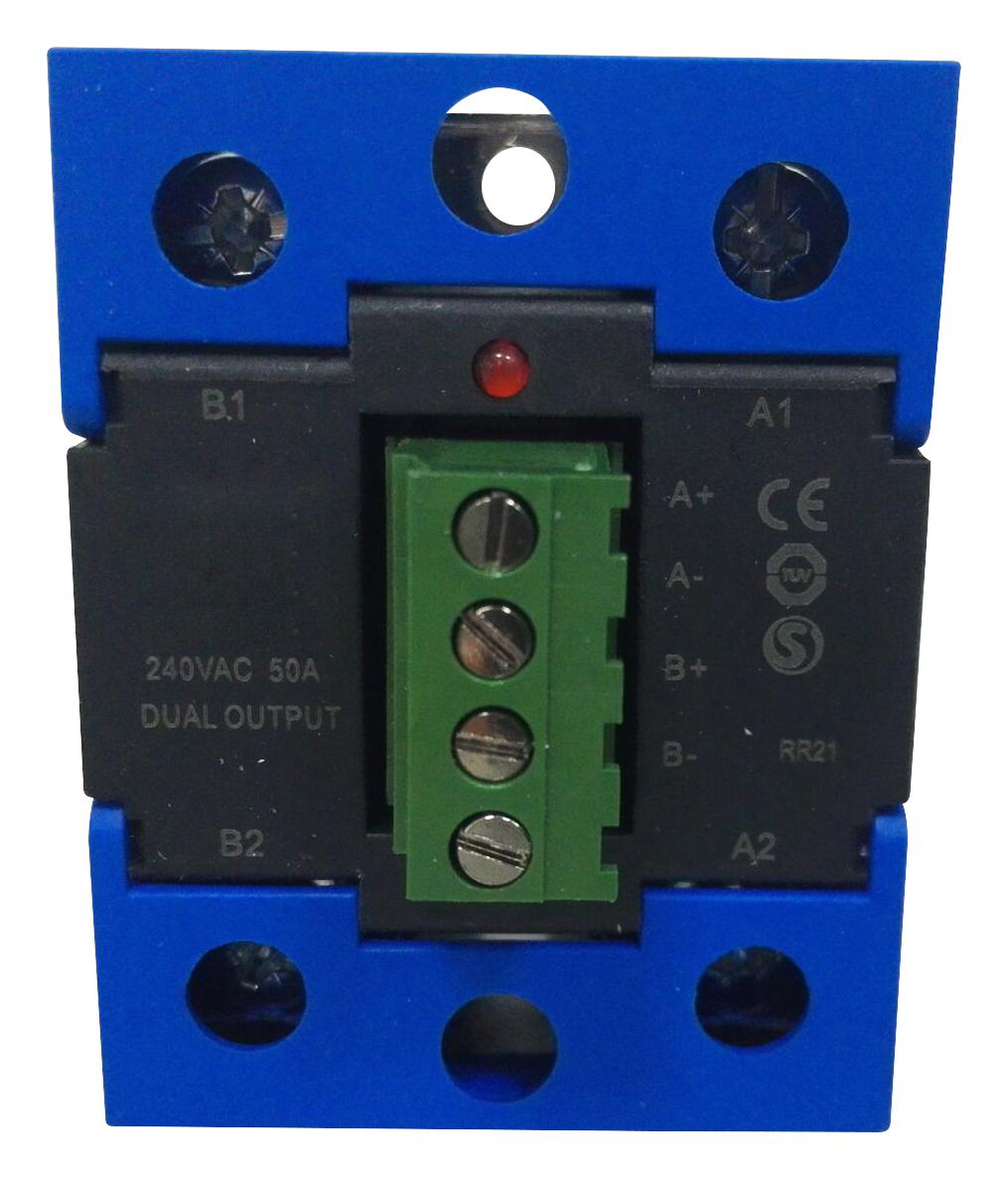

MULTICOMP-PRO MC002353 Solid State Relay
The 2 channel panel mount solid state relay with SCR output is suitable for industrial automation. It handles resistive, inductive, or capacitive loads with a voltage range of 24-530V AC and an output current of up to 50A. Features include zero crossing or random-on switching, a DC input of 4-15V, and IP20 protection. Ideal for controlling high-current AC loads in applications such as HVAC, machinery, and lighting, ensuring reliable, fast switching with low off-state leakage and transient overvoltage protection.
MULTICOMP-PRO MC002353 Solid State Relay Specifications:
- Load Voltage Range: 24-530V AC
- Output Current: 25A and 50A
- Input Circuit: 4-15V DC
- Control Voltage Range: 15-32V DC
- Maximum Surge Current: 300A (@10 ms) 50A 500A
- Maximum Turn-on Time: 10ms (Zero Crossing), 10ms (Random)
- Transient Over Voltage: 1200Vpk (480V AC)
- Maximum Off-State Leakage: 5mA
- Maximum On-State Voltage Drop: 1.5V
- Dielectric Strength: Input/Output 4000Vrms
- Ambient Operating Temperature: -30°C to +80°C
- Ambient Storage Temperature: -30°C to +100°C
- Protection: IP20, optional 1P20 safety cover
- Connection Type: Screw Terminal
- Dimensions: Millimetres (reference for thermal management)
- Standards: RoHS Compliant
Buy the Multicomp Pro MC002353 – Reliable Solid State Relay for Industrial Applications
Enhance your automation systems with the reliable dual channel solid state relay designed for high-current AC loads up to 530V. With zero crossing or random-on switching, IP20 protection, and a rugged design supporting 25A and 50A currents, this relay ensures fast, efficient, and safe control in industrial environments. Ideal for HVAC, machinery, lighting, and advanced control panels, it offers low leakage, transient protection, and easy screw terminal connections. Purchase online now to improve your system’s durability and operational efficiency with this proven switching solution.
Order your Multicomp Pro MC002353 series 50A dual channel relay today and enhance your industrial control projects with dependable switching performance.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC002353?
You can click on the BUY or RFQ button to purchase MC002353 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002353?
You can download the MC002353 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC002353?
MULTICOMP-PRO
