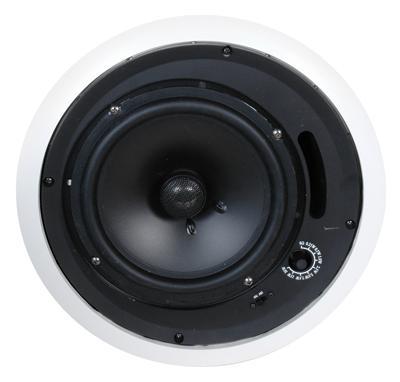

MULTICOMP PRO 5014080 Ceiling Speaker
This ceiling speaker is ideal for residential and commercial audio setups, featuring an 8-inch polypropylene cone woofer with a rubber surround and a 1-inch titanium dome tweeter, ensuring clear, high-quality sound. The front port improves bass response and overall audio performance. It includes a sealed ABS back box, binding post terminals for secure wiring, and supports up to 90W power capacity. With a frequency range of 40Hz to 20kHz and SPL of 89dB, it provides loud, crisp audio. Transformer taps for 8 ohms are available at various wattages, and mounting depth is 5.5 inches with an 11.25-inch cutout diameter.
MULTICOMP PRO 5014080 Ceiling Speaker Specifications:
- Woofer Size: 8 inch polypropylene cone
- Tweeter: 1 inch titanium dome
- Impedance: 8 ohm
- Power Capacity: 90W RMS / 180W max
- Frequency Response: 40Hz to 20kHz
- Sensitivity (SPL): 89dB
- Transformer Taps: 0.25W, 0.5W, 1W, 2.5W, 5W, 7.5W, 15W, 30W
- Overall Frame Diameter: 12.50 inches
- Required Cutout Diameter: 11.25 inches
- Mounting Depth: 5.50 inches
- Enclosure: Fully sealed ABS back box
- Connections: Binding post terminals
- Mounting: Flanged design
- Frequency Range: 40Hz to 20kHz
- Sensitivity: 89dB SPL
- Material: Polypropylene cone, titanium dome
- Application: Residential and commercial distributed audio systems
Buy the SoundPro Series Ceiling Speaker: 8-inch Polypropylene Cone and Titanium Dome Tweeter
Order the SoundPro Series Ceiling Speaker 5014080 online today for high-quality sound in residential or commercial spaces. Featuring an 8-inch polypropylene cone woofer, a 1-inch titanium dome tweeter, and a fully sealed ABS back box, this speaker provides clear, powerful audio with a frequency response of 40Hz to 20kHz. Supporting up to 90W power, with adjustable transformer taps, easy mounting, and secure binding post terminals, it’s ideal for enhanced sound environments. Make your purchase now for reliable, professional-grade audio performance.
Get SoundPro Series Ceiling Speaker 5014080 today—built for clarity, durability, and versatile installation in both home and commercial environments.
