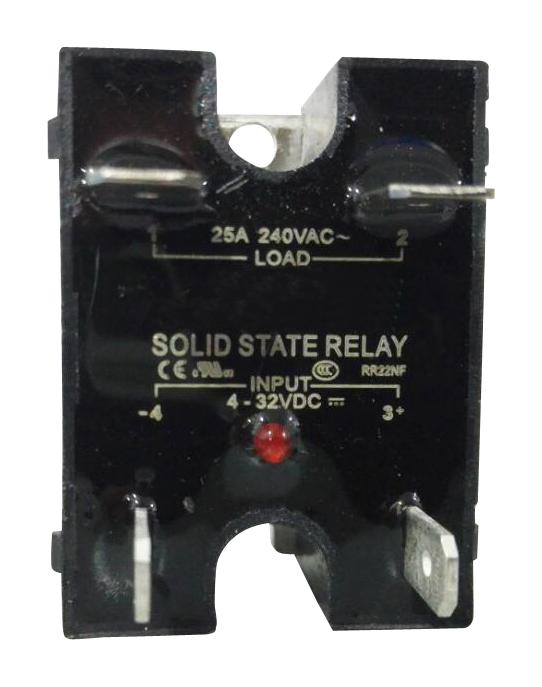

MULTICOMP-PRO MC002356 Mini Solid State Relay
The Panel Mount Mini Solid State Relay operates with single-phase AC output and incorporates zero-crossing technology for smooth switching. It features a control voltage range of 4-32V DC, rated load currents of 10A, 16A, or 25A, and a load voltage of 24-280V AC. The relay offers high dielectric strength, with input/output isolation of 24000Vrms, and includes internal RC protection and optional MOV protection. Suitable for industrial automation, high-temperature chambers, and food processing machines, this relay guarantees efficient, reliable switching with LED indication and quick connect terminals.
MULTICOMP-PRO MC002356 Mini Solid State Relay Specifications:
- Control Voltage Range: 4-32V DC
- Rated Load Current: 10A, 16A, 25A
- Load Voltage: 24-280V AC
- Dielectric Strength: 24000Vrms input/output
- Isolation Voltage: 22500Vrms
- Power Factor: >0.5
- Ambient Operating Temperature: -30°C to +80°C
- Ambient Storage Temperature: -30°C to +100°C
- Max On/Off Response Time: 10ms
- Maximum Surge Current: 410A at 10A, 160A at 16A, 250A at 25A
- Transient Overvoltage: 600Vpk
- Leakage Current: 5mA
- On-State Voltage Drop: ≤1.5Vrms
- dV/dt: Minimum 200V/μs
- Weight: 33g
- RoHS Compliant
- Quick Connect Terminals for easy installation
Buy the Multicomp Series Mini Solid State Relay: MC002356
Purchase your Multicomp Series Mini Solid State Relay MC002356 online today to ensure precise, dependable switching for industrial applications and automation projects. With high dielectric strength, zero-crossing technology, and quick connect terminals, this relay offers optimal performance in resistive, inductive, or capacitive loads. Its compact design, rated current of 16A at 24-280V AC, and internal protection circuits make it ideal for high-temperature chambers, food machinery, and industrial equipment. Secure your stock now for seamless integration and reliable operation in your systems.
Order your Multicomp Series Mini Solid State Relay MC002356 today and enjoy reliable, efficient switching for industrial automation needs.
