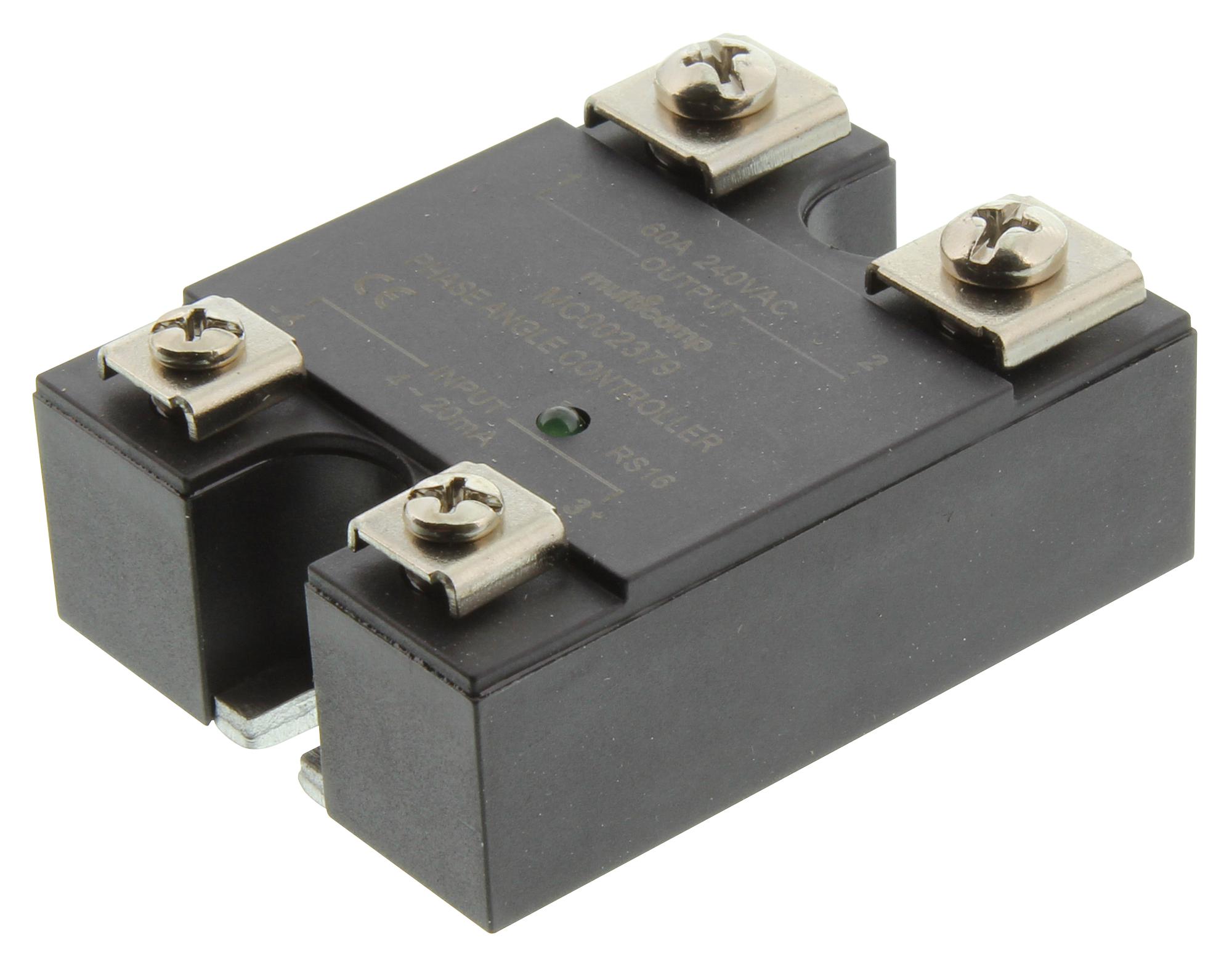

MULTICOMP PRO MC002379 Voltage Regulator Module
This single phase voltage regulator module is designed for industrial applications, providing stable AC output with phase-shift control. It supports input voltages from 10V to 32V DC and output voltages of 240V or 480V AC, catering to load currents of 25A, 60A, and 80A. Suitable for high and low temperature chambers, plastic machinery, incubators, and solar panel welding machines, it features SCR output, LED indication, and control inputs of 0-10V DC or 4-20mA. Its robust design ensures reliable performance in demanding environments, with appropriate insulation and safety ratings.
MULTICOMP PRO MC002379 Voltage Regulator Module Specifications:
- Input Voltage Range: 10-32V DC
- Output Voltage Range: 240V AC (176-280V), 480V AC (300-530V)
- Load Current: 25A, 60A, 80A
- Output Power: up to 99%
- Input Resistance: 60kΩ (Control), 2000Ω (Current Control)
- Control Input: 0-10V DC or 4-20mA
- Maximum Surge Current: 60A at 10ms, 80A at 10ms
- Transient Over Voltage: 600Vpk (240V load), 1200Vpk (480V load)
- Operating Frequency Range: 47-63Hz
- Dielectric Strength: 4000Vrms (Input/Output), 2500Vrms (Input/Output/Base)
- Ambient Temperature Range: -30°C to +80°C
- Storage Temperature Range: -30°C to +100°C
- Dimensions: Refer to manufacturer datasheet
- Weight: 96g to 123g depending on model
- Features: LED indicator for power status, phase-shift control, and SCR output
Buy the Buy Multicomp Pro Voltage Regulator Module Part Number MC002379 Online
Purchase the Multicomp Pro Voltage Regulator Module MC002379 online today to ensure your machinery operates smoothly with stable voltage output. Its high current support of 60A, 480V AC output, and phase-shift control make it ideal for demanding industrial applications like chambers, welding machines, and control systems. The module features robust SCR output, LED indicators, and supports control inputs of 0-10V DC or 4-20mA. Secure your equipment’s efficiency and safety by ordering now and enjoy fast delivery and excellent customer support.
Buy Multicomp Pro MC002379 now and experience unmatched reliability and performance for your industrial voltage regulation needs.
