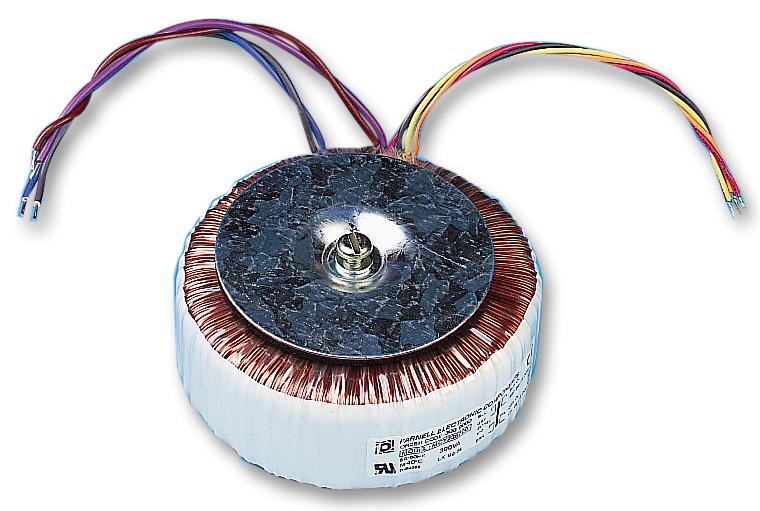

MULTICOMP PRO MCTA01512 Toroidal Transformer
The Multicomp MCTA series toroidal transformers are versatile power solutions with dual primary and secondary windings, suitable for industrial and power management use. Featuring a primary voltage of 115 or 230V +10%, and power ratings from 15VA up to 1000VA, these transformers can be connected in series or parallel for both primary and secondary. Double insulated with flexible, tinned lead-outs, they undergo rigorous electrical and flash testing. Designed for reliable performance, they include mounting and protective accessories, making them ideal for diverse applications requiring stable and efficient power transfer.
MULTICOMP PRO MCTA01512 Toroidal Transformer Specifications:
- Primary Voltage: 115 or 230V +10%
- Power Ratings: 15VA to 1000VA
- Secondary Voltages: 2 x 6VAC to 2 x 55VAC
- Dual primary and secondary windings for series or parallel connection
- Winding Material: Class H (180°C)
- Insulation System: Class B (130°C)
- Leadouts: Tri-Rated UL1015 cable rated 600V /105°C, double insulated with PVC
- Terminals: Tinned ends, length approx. 6mm
- Physical Dimensions: Diameter varies with model, typical height around 70-110mm
- Standards: EN61558-1 / EN61558-2-4 / UL recognized
- Testing: 100% electrical and flash testing for reliability
- Accessories: Mounting plates, foam pads, screw, nut, washer included
- Application: Industrial equipment, power supplies, automation
Buy the Buy multicomp toroidal transformer Part Number MCTA01512 Online
Purchase the multicomp toroidal transformer MCTA01512 online today and benefit from a reliable, efficient power solution suited for industrial and power management systems. These transformers feature dual primary and secondary windings for versatile connections, exceptional insulation, and thorough testing standards to ensure safety and durability. With flexible lead-outs and included mounting accessories, they provide easy installation and maintenance. Invest in a high-quality, versatile transformer that can meet your power needs with outstanding performance in a variety of demanding environments.
Buy multicomp toroidal transformer MCTA01512 now and experience unmatched reliability and performance in power transfer applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCTA01512?
You can click on the BUY or RFQ button to purchase MCTA01512 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTA01512?
You can download the MCTA01512 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCTA01512?
MULTICOMP PRO
