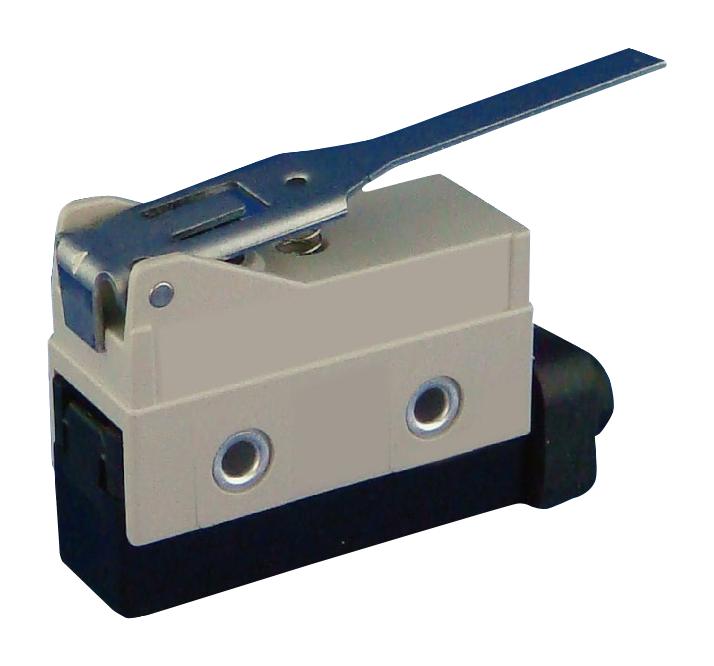

MULTICOMP PRO MC002414 High Utility Enclosed Switch
High utility enclosed switches with built-in basic switch functions offering excellent durability for demanding applications. They feature IP67 protection, UL, CSA, and EN(TUV) approvals. Designed for mechanical durability of over 10 million operations, these switches are dustproof, drip-proof, and suitable for various industrial environments. Their robust construction includes resin-molded terminals, making them ideal for high-reliability control systems. Operating at rated voltages of 250V and currents up to 10A, they conform to IEC 60947-5-1 standards, providing long-lasting performance in diverse conditions.
MULTICOMP PRO MC002414 High Utility Enclosed Switch Specifications:
- Degree of protection: IP67
- Rated voltage: 250V AC (IEC 60947-5-1), 250V AC / 15A (UL508)
- Mechanical durability: 10,000,000 operations minimum
- Electrical durability: 500,000 operations minimum
- Operating speed: 0.05mm/s to 0.5m/s
- Insulation resistance: 100MQ min. at 500V DC
- Contact resistance: initial value varies
- Terminal temperature rise: 50°C max.
- Dielectric strength: 2,000V AC between current-carrying parts and ground
- Rated insulation voltage (Ui): 1,000V AC
- Pollution degree: 3
- Rated operating current (Ie): 10A
- Vibration resistance: malfunction at 10-55Hz, 1.5mm amplitude; destruction at 1,000m/s²
- Shock resistance: malfunction at 100m/s²
- Operating temperature: -10°C to +80°C
- Humidity: 35% to 95% RH
Buy the Multicomp Series High Utility Enclosed Switches: MC002414
Purchase the high utility enclosed switch MC002414 online today to ensure long-lasting performance in demanding environments. With IP67 protection, UL and CSA approvals, and over 10 million mechanical operations, this switch provides exceptional durability. Ideal for dustproof, drip-proof applications, it supports rated voltages up to 250V AC and currents of 10A. Its robust design, including resin-molded terminals, guarantees reliable operation even under harsh conditions. Enhance your automation and control systems with this reliable, high-quality switch now.
Buy Multicomp series high utility enclosed switches MC002414 now and experience unmatched reliability and durability for your industrial control needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002414?
You can click on the BUY or RFQ button to purchase MC002414 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002414?
You can download the MC002414 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002414?
MULTICOMP PRO
