MULTICOMP PRO MP001173 High Voltage Transistor
This high-voltage PNP silicon transistor operates up to 200V collector-emitter voltage and supports a collector current of 1A, making it suitable for power switching and amplification applications. Encased in a TO-39 metal can package for efficient heat dissipation, this transistor features a low saturation voltage and high current gain, ensuring reliable performance in demanding electronic circuits. Its wide temperature range from -65°C to +200°C allows for versatile deployment in different environments, with RoHS compliance ensuring adherence to environmental standards for manufacturing and disposal.
MULTICOMP PRO MP001173 High Voltage Transistor Specifications:
- Maximum collector-emitter voltage Vceo: 200 V
- Maximum collector-base voltage Vcbo: 200 V
- Maximum emitter-base voltage Vebo: 4 V
- Collector current Ic: 1 A
- Base current Ip: 0.5 A
- Power dissipation at 25°C Po: 1 W
- Thermal resistance junction to ambient Rth(j-a): 150 °C/W
- Junction to case Rth(j-c): 17.5 °C/W
- Operating junction temperature range: -65°C to +200°C
- Breakdown voltage BVcEo: >200 V
- Collector cutoff current IcBo: <50 nA
- Collector emitter saturation voltage Vce(Sat): <2.5 V
- Base-emitter saturation voltage VBE(Sat): <1.5 V
- DC current gain hFE: 30 - 150
- Transition frequency fr: >15 MHz
- Output capacitance Cob: <15 pF
- Input capacitance Cib: <75 pF

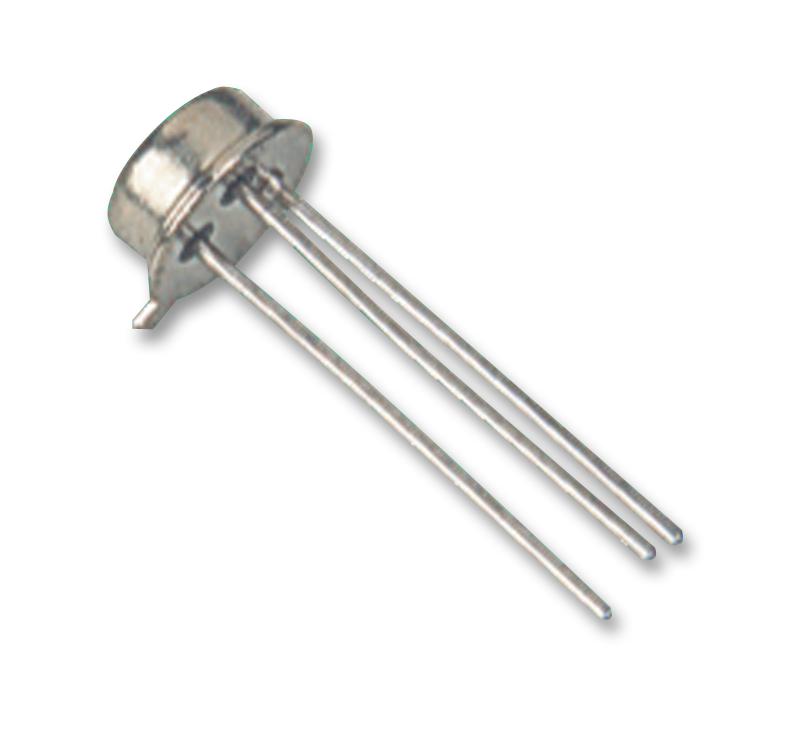

Buy the Buy Multicomp PNP Silicon High Voltage Transistor Part Number MP001173 Online
Purchase the advanced high-voltage PNP silicon transistor designed for high-current and high-voltage applications. With a collector-emitter voltage of 200V, it supports up to 1A continuous collector current, ideal for power switching and amplification tasks. Encased in a robust TO-39 metal can, it offers low saturation voltage, high current gain, and wide temperature operation from -65°C to +200°C. Its RoHS compliance makes it suitable for eco-friendly manufacturing, providing reliable, efficient performance in demanding industrial and electronics applications. Order now for fast online delivery and exceptional quality.
Get Multicomp high-voltage PNP silicon transistor MP001173 today—designed for power switching, amplification, and high-temperature environments with reliable performance.
