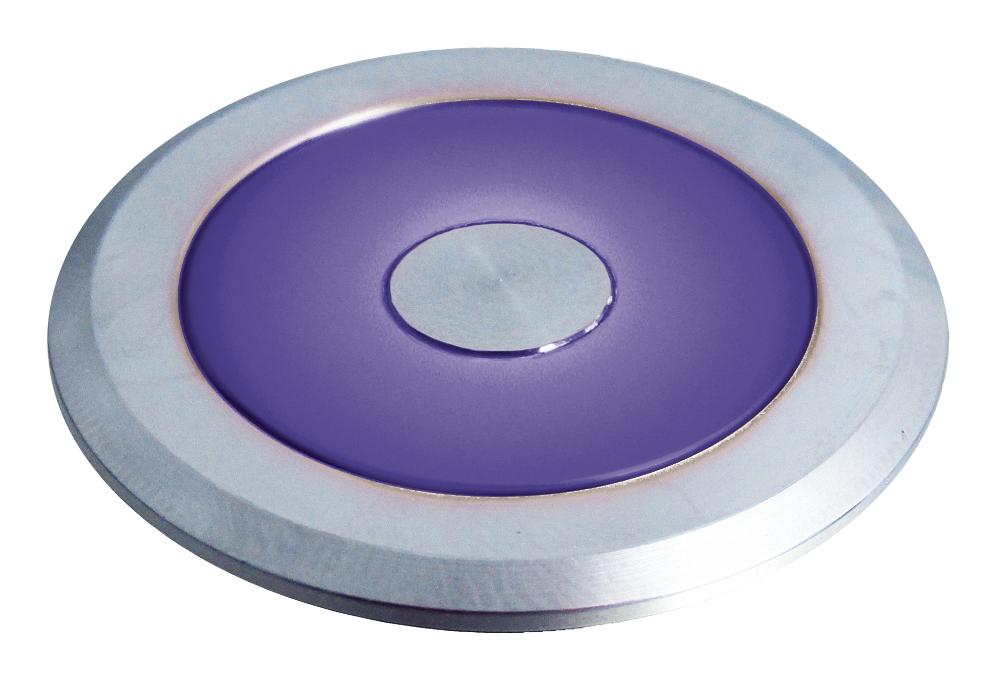

MULTICOMP PRO MC010980 Vandal Resistant Switch
This flush illuminated vandal-resistant switch features a metal bezel-ring and silhouette-ring design with high durability and IP65 protection. Rated for 600V and 210A, it supports LED indicators in green, red, or blue at 12V AC/DC. The switch has robust dielectric and insulation resistance, making it suitable for industrial environments. It withstands vibrations from 5 to 55Hz and shocks up to 1,000 m/s², with a mechanical life of up to 1,000,000 operations. Ideal for control panels requiring reliable, vandal-proof illumination and high electrical performance.
MULTICOMP PRO MC010980 Vandal Resistant Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green, Red, Blue
- Material / Finish: Aluminium
- Dielectric Strength: Between live part and ground 2,000V AC / min; between terminals of same poles 1,000V AC / min
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 100MΩ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: 1°C to +55°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 1,000 m/S² (damage limit); operating limit 100 m/S²
- Mechanical Life: 1,000,000 (momentary), 100,000 (maintained)
- Electrical Life: 100,000 operations
- Degree of Protection: IP65
- Terminal Style: Contact Block
Buy the Buy Multicomp Pro Vandal Resistant Switch Part Number MC010980 Online
Order the versatile vandal-resistant switch online today to enhance your control panel's durability and reliability. Featuring a robust aluminium body, IP65 protection, and LED indicators in green, red, and blue, this switch supports up to 600V and 210A for demanding industrial applications. Its high mechanical and electrical lifespan ensures long-term operation, resistant to vibration and shock. Perfect for control panels requiring vandal-proof illumination and high-performance switching capabilities, ensuring safety and operational efficiency.
Get Multicomp Pro MC010980 today—designed for high durability and vandal resistance in industrial control systems.
