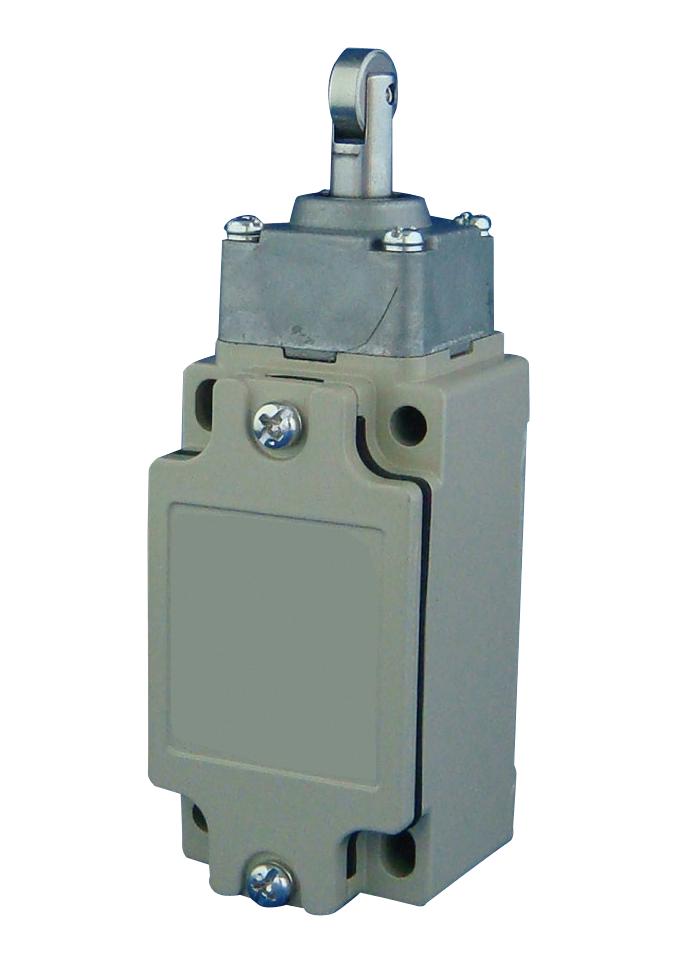

MULTICOMP PRO MC002443 Safety Limit Switch
This safety limit switch features a robust design with UL, CSA, CCC, and EN(TUV) approvals, suitable for industrial safety applications. It offers wide ambient temperature operation from -40°C to +80°C, IP67 protection, and high durability with millions of operational cycles. Equipped with NC contacts and a direct opening mechanism, it ensures safety faults are promptly addressed. The switch exhibits excellent resistance to vibration, shock, and electrical stress, making it ideal for demanding environments. Its reliable contact resistance, insulation, and dielectric strength meet international standards, providing consistent performance and safety assurance.
MULTICOMP PRO MC002443 Safety Limit Switch Specifications:
- Degree of protection: IP67 (EN60947-5-1)
- Voltage Rating: Rati IEC 60947-5-1 AC-15 400V AC / 2A, UL508. A600 250V AC / 15A
- Durability: 30,000,000 operations (snap-action), 10,000,000 (slow-action), 500,000 electrical operations at 10A/250V AC
- Operating temperature range: -40°C to +80°C
- Vibration resistance: Malfunction 10-55 Hz 0.75mm amplitude
- Shock resistance: Min. 300m/s² for malfunction
- Insulation resistance: 100MQ min.
- Contact resistance: 25mΩ max.
- Dielectric strength: 4kV between terminals of different polarity, 4kV between current-carrying parts and ground
- Pollution degree: 3 (EN60947-5-1)
- Rated insulation voltage: 600V
- Uimp: 4kV (slow-action)
- Ambient humidity: Max. 95%
Buy the Multicomp Series Safety Limit Switch: MC002443
Purchase the Multicomp safety limit switch MC002443 online today and experience reliable performance, high durability, and secure safety features suitable for diverse industrial applications. With UL, CSA, and EN approvals, it guarantees compliance with international standards. Designed for operation between -40°C and +80°C, IP67 protection, and millions of cycle durability, this switch is ideal for demanding environments requiring safety and longevity. Enhance your safety systems with this trusted and effective control component available for immediate online purchase.
Buy Multicomp safety limit switch MC002443 now and ensure reliable, safe operation in demanding industrial environments with high durability and resistance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002443?
You can click on the BUY or RFQ button to purchase MC002443 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002443?
You can download the MC002443 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002443?
MULTICOMP PRO
