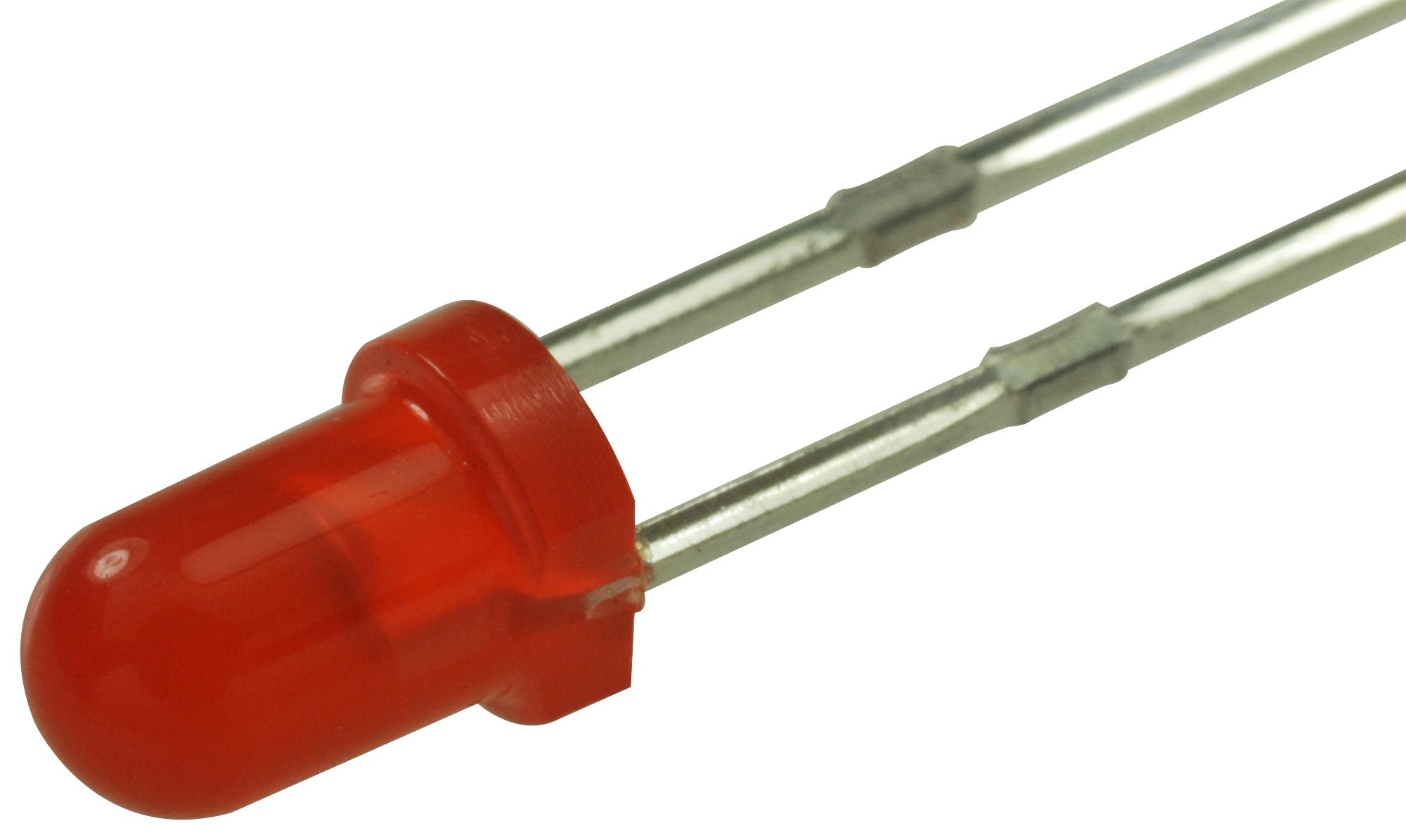

MULTICOMP PRO MCL034MD 3mm Red LED Lamp
The 3mm Round LED Lamp in Hi-Eff Red offers high efficiency with a diffused red lens and a round shape, suitable for various LED lighting and indication applications. It has a peak wavelength of 635nm, luminous intensity typically 40mcd, and a viewing angle of 50 degrees, providing bright and wide-angle illumination. Constructed with GaAsP on GaP, it supports an operating temperature range from -40°C to +85°C, a power dissipation of 85mW, and forward voltage of 1.8V to 2.6V at 20mA. Ideal for electronics requiring reliable, long-lasting indicator lights.
MULTICOMP PRO MCL034MD 3mm Red LED Lamp Specifications:
- Lens Diameter: 3mm
- Peak Wavelength: 635nm
- Luminous Intensity: 40mcd
- Viewing Angle: 50 Degrees
- Forward Voltage: 1.8V to 2.6V at 20mA
- Power Dissipation: 85mW
- Material: GaAsP on GaP
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Lead Soldering Temperature Range: 260°C for 5 seconds at 4.6mm from body
- Reverse Voltage: 5V
- Reverse Current: 10μA at VR=5V
Buy the Multicomp Series 3mm Red LED Lamp: MCL034MD
Purchase the high-efficiency 3mm red LED lamp MCL034MD online today. Designed with a diffused red lens and wide 50° viewing angle, it delivers bright, consistent illumination at a peak wavelength of 635nm. Suitable for indicator lights, lighting, and electronic projects, this LED features a forward voltage of 1.8V to 2.6V, a typical luminous intensity of 40mcd, and supports operation within -40°C to +85°C temperature range. Reliable and easy to install for a variety of electronics needs.
Get Multicomp Series 3mm Red LED Lamp MCL034MD today—built for bright, reliable indicator lighting with long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCL034MD?
You can click on the BUY or RFQ button to purchase MCL034MD from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCL034MD?
You can download the MCL034MD datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCL034MD?
MULTICOMP PRO
