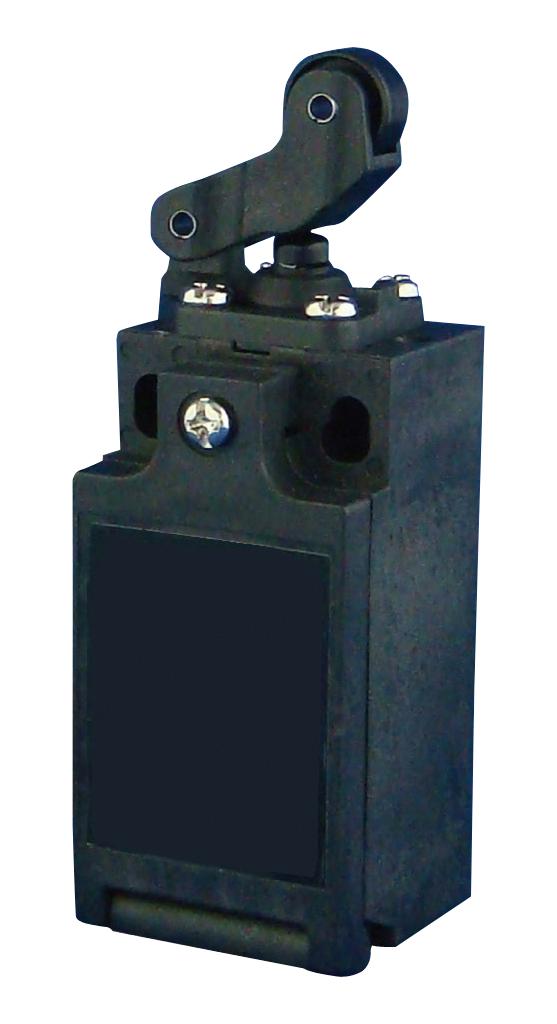

MULTICOMP-PRO MC002454 Miniature Safety Limit Switch
This miniature safety limit switch from Multicomp Pro is designed for reliable operation in industrial applications. It features a compact design with IP67 protection, suitable for harsh environments. The switch offers a quick response with an operating speed of 1 to 500 mm/s and a mechanical durability of over 15 million operations. It is certified to UL, EN, and CCC standards, with electrical ratings up to 240V AC / 3A and an insulation resistance of 100MΩ. Ideal for automation, it provides accurate detection with various lever and plunger options available.
MULTICOMP-PRO MC002454 Miniature Safety Limit Switch Specifications:
- Degree of protection: IP67
- Operating Voltage: 240V AC / 3A
- Electrical Ratings: UL508 A300 250VAC / 15A
- Durability: Mechanical 15,000,000 operations, Electrical 300,000 operations
- Operating Speed: 1 to 500 mm/s
- Operating Frequency: 30 operations per minute
- Insulation Resistance: 100MΩ min.
- Contact Resistance: 25mΩ max.
- Dielectric Strength: 4kV between current parts and ground, 6kV between terminals and non-current parts
- Rated Insulation Voltage: 300V
- Vibration Resistance: 10-55Hz, 0.75mm amplitude
- Shock Resistance: 300m/s²
- Ambient Temperature Range: -30°C to +70°C
- Humidity: up to 95% RH
- Switch travel: 2mm with various lever options, operating force around 4-6.5N
Buy the Multicomp Series Miniature Safety Limit Switch: MC002454
Experience the precision and reliability of the Miniature Safety Limit Switch from Multicomp Pro. Perfect for automation and safety systems, it features a robust IP67 protection rating, ensuring durability in harsh environments. Easy to install with various actuator options, the switch offers high electrical ratings up to 240V AC / 3A and over 15 million cycles of mechanical durability. Whether for machinery or safety systems, this switch guarantees long-lasting performance, making it an essential component in industrial control environments.
Buy Multicomp Pro MC002454 miniature safety limit switch now and experience unmatched reliability and performance for industrial safety applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC002454?
You can click on the BUY or RFQ button to purchase MC002454 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002454?
You can download the MC002454 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC002454?
MULTICOMP-PRO
