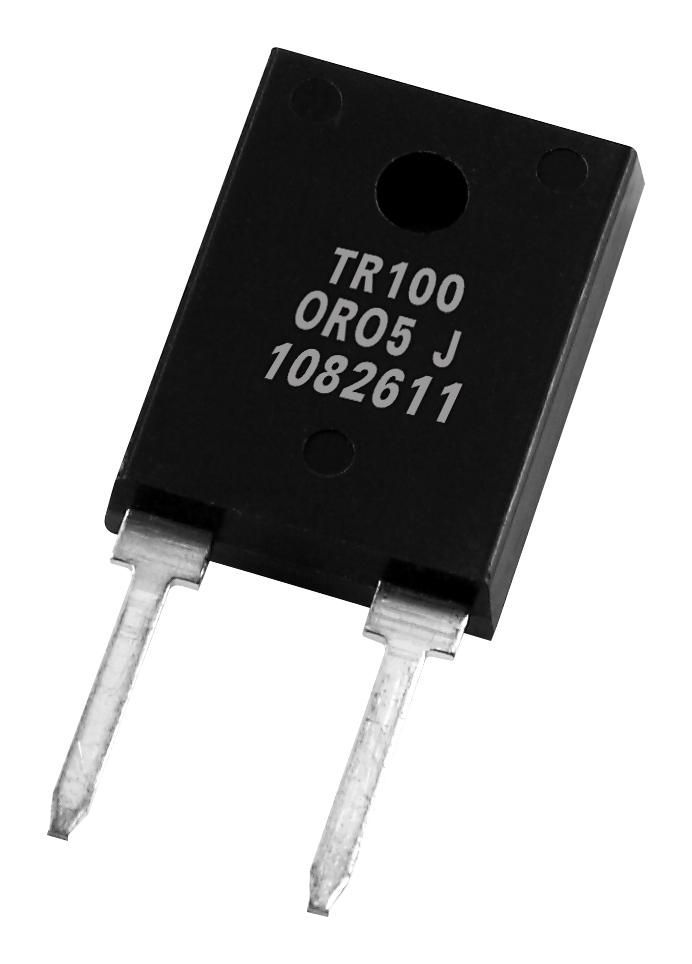

MULTICOMP-PRO MCTR100JDD0560 Power Resistor
The MCTR100JDD0560 is a 100-watt power resistor designed for high-performance applications, including gate resistors, snubbers, and voltage regulation. Its robust, molded case provides protection and easy mounting, with an electrically isolated, non-inductive design. Suitable for power supplies, CRT monitors, RF output termination, and UPS systems, this resistor features a TO-247 style package mounted via a single M3 screw. It withstands operating temperatures from -65°C to +175°C and offers high dielectric strength, load life stability, and excellent moisture resistance, making it ideal for demanding electronic environments.
MULTICOMP-PRO MCTR100JDD0560 Power Resistor Specifications:
- Power Rating: 100 Watts at 25°C case temperature
- Case Style: TO-247
- Mounting: Single M3 screw mounting
- Operating Temperature: -65°C to +175°C
- Resistance Range: 0.05Ω to 1,000kΩ
- Resistance TCR: -100 to +200 ppm/°C depending on type
- Maximum Operating Voltage: 700V
- Dielectric Strength: 1,800V AC
- Insulation Resistance: 10 GΩ minimum
- Environmental Tests: Load life (2000 hours), Moisture resistance (240 hours), Thermal shock (100 cycles)
- Lead Material: Tinned Copper
- Maximum Torque: 0.9 Nm
Buy the Buy multicomp:ro Power Resistor Part Number MCTR100JDD0560 Online
Purchase the multicomp:ro MCTR100JDD0560 power resistor online today to ensure reliable and high-performance operation in your power supply, RF, or voltage regulation systems. Its rugged molded case, non-inductive design, and excellent environmental stability make it perfect for demanding industrial and electronic applications. With a power rating of 100 watts at 25°C case temperature, it supports effective heat dissipation and thermal stability. Easy to mount using a single M3 screw, this resistor offers high dielectric strength and resistance stability for long-term, dependable performance in your circuit designs.
Buy multicomp:ro MCTR100JDD0560 now and experience unmatched reliability and high power handling capacity for demanding electronic applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCTR100JDD0560?
You can click on the BUY or RFQ button to purchase MCTR100JDD0560 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTR100JDD0560?
You can download the MCTR100JDD0560 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCTR100JDD0560?
MULTICOMP-PRO
