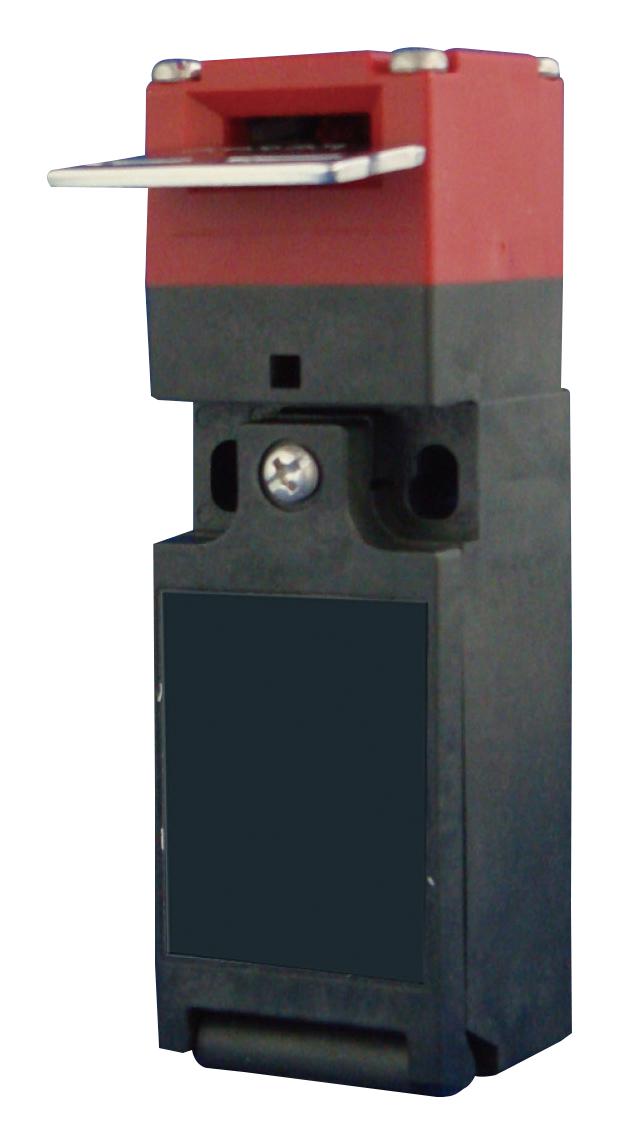

MULTICOMP PRO MC002456 Safety Limit Switch
This miniature safety limit switch from multicomp series features front-inserted operation keys with screw terminal connections, designed for precise position detection in industrial automation. It has an IP67 protection rating, supporting reliable operation in harsh environments. Capable of 1,000,000 mechanical and up to 300,000 electrical operations, it withstands vibrations, shocks, and temperature ranges from -30°C to +70°C. It offers adjustable and fixed mounting options, with contact resistance of 25 milliohms, dielectric strength of 4kV, and insulation resistance of 100 megaohms, ensuring durability and safety in demanding applications.
MULTICOMP PRO MC002456 Safety Limit Switch Specifications:
- Degree of protection: IP67
- Mechanical operations: 1,000,000 min.
- Electrical operations: 300,000 min.
- Operating speed: 0.05 to 0.5 m/s
- Operating frequency: 30 operations/min max.
- Contact Resistance: 25 milliohms
- Dielectric Strength: 4kV
- Insulation Resistance: 100 megaohms
- Operating Temperature Range: -30°C to +70°C
- Vibration Resistance: 10-55 Hz, 0.75mm amplitude
- Shock Resistance: 300m/s² min.
- Rated Voltage: 250V AC / 3A, 250V DC / 0.27A
- Rated Insulation Voltage: 300V
- Operating Force: Max 30N
- Weight: ~116g
- Mounting Options: Horizontal and Vertical
- Enclosure: Metal housing for durability
- Certifications: UL508, EN60947-5-1
Buy the Multicomp Series Safety Limit Switch: MC002456
Experience the reliability of the multicomp safety limit switch MC002456, designed for industrial safety and automation systems. With a robust IP67 enclosure, high durability for over a million operations, and precise adjustable and fixed mounting options, this switch ensures safe, accurate position detection in demanding environments. Its excellent electrical and mechanical specifications, including a dielectric strength of 4kV and contact resistance of 25 milliohms, make it ideal for diverse industrial applications. Buy online now for quick and easy installation and dependable performance.
Get multicomp safety limit switch MC002456 today—built for precision and long-lasting durability.
