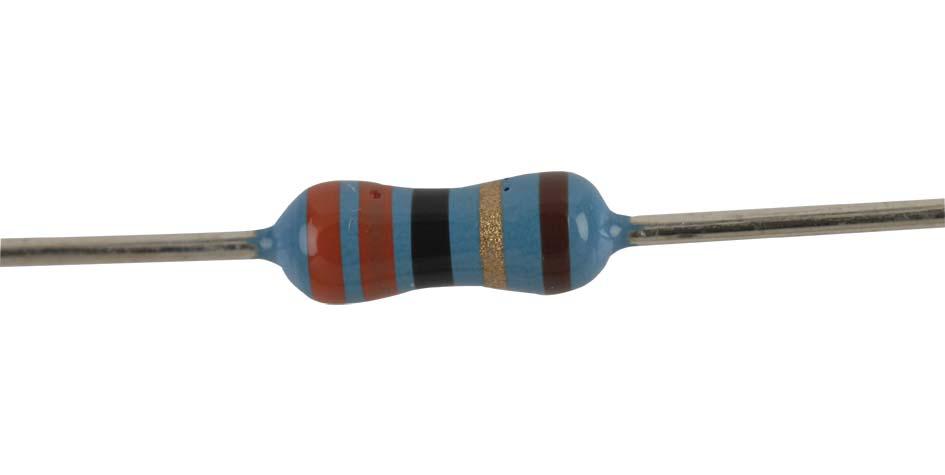

MULTICOMP PRO MCMF0W4FF330JA50 Metal Film Resistor
The MCMF0W4 series axial-leaded precision metal film fixed resistor features a robust epoxy coating on a vacuum-deposited metal film for enhanced moisture resistance. It utilizes a nichrome resistor element ensuring stable performance across various environments. The resistor conforms to EIA standard color-coding, offers low noise and voltage coefficient, and has a low temperature coefficient. It is available in a wide range of precision values in a compact package, with options for very low or high resistance as needed.
MULTICOMP PRO MCMF0W4FF330JA50 Metal Film Resistor Specifications:
- Type: MCMF
- Rated Power: 0.25W at 70°C
- Max. Working Voltage: 400V
- Max. Overload Voltage: Not specified
- Dielectric Withstanding Voltage: 00V
- Rated Ambient Temp: -55°C to +155°C
- Resistance Range: 100 to 1MΩ
- Resistance Tolerance: ±1%, ±2%
- Construction: Ceramic body, metal film resistor, tin-plated steel end caps, annealed copper lead wires, insulated epoxy resin coating
- Insulation Resistance: ≥10,000MΩ
- Temperature Coefficient: ±50 PPM/°C
- Soldering Temp.: 245°C for 2-3 seconds
- Vibration Resistance: 55Hz, 3 planes, 2 hours each
- Load Life: 1000 hours at RCWV, ±1.5% resistance change
- Resistance to Soldering Heat: Max. 1% change
- Solderability: ≥95% coverage
- Operating Temp Range: -55°C to +155°C
- Resistance Change Rate: Max. ±0.5% after overload
- Marking: Color code per JIS C 0802 with type, resistance, tolerance, and lot number
Buy the Buy Multicomp Metal Film Fixed Resistor Part Number MCMF0W4FF330JA50 Online
Secure your electronic components easily by purchasing the Multicomp metal film fixed resistor MCMF0W4FF330JA50 online. Perfect for precise applications, it offers excellent moisture resistance, low noise, and stability over a wide temperature range. With detailed specifications and a robust epoxy coating, it ensures dependable performance under demanding conditions. Enjoy fast delivery, quality assurance, and competitive pricing by shopping with us today. Optimize your electronic designs with this high-performance resistor available at your fingertips.
Buy Multicomp metal film fixed resistor MCMF0W4FF330JA50 now and ensure stable, precise, and reliable performance for your electronic projects.
