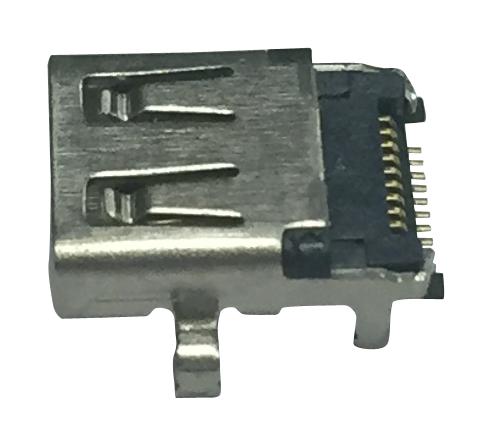

MULTICOMP PRO MC002785 HDMI Receptacle
This Micro HDMI Type D mid-mount receptacle features a sink type, supports 1080p video resolution, and handles 10.2Gbps bandwidth with 24-bit deep color support. Constructed with stainless steel shell plated in 50 microns nickel for durability, it includes high thermoplastic insulators compliant with UL94V-0. The connector supports 5,000 mating cycles, utilizes copper alloy contacts with gold flash plating, and provides excellent electrical performance with low contact resistance. Suitable for high-definition video applications requiring robust connection reliability and RoHS compliance, this receptacle ensures optimal performance in demanding industrial environments.
MULTICOMP PRO MC002785 HDMI Receptacle Specifications:
- Connector Type: Micro HDMI Type D Receptacle
- Termination: Front Solder Tail is DIP; Back Solder Tail is SMT
- Shell Material: Stainless Steel, 50 micron Nickel Plating
- Top and Bottom Insulator: High Thermoplastic UL94V-0
- DIP Contact Material: Copper Alloy
- SMT Contact Material: Copper Alloy
- Contact Plating: Gold Flash over 50 micron Nickel Plating
- Electrical Resistance: Initial <10mΩ, After Test <10mΩ
- Dielectric Withstanding Voltage: 250V AC RMS (mated 150V) for one minute; 500V AC RMS (mated 150V) for one minute
- Mating and Unmating Force: Initial Mating Force Max 4.5Kgf; Unmating Force 20.6 to 2.5Kgf
- Mating Cycles: 5,000 cycles
- Supports Video Resolution: 1080p
- Bandwidth: 10.2Gbps
- Color Support: 24-bit deep color
- RoHS Compliant, HF Compliant, Halogen Free
Buy the Multicomp Micro HDMI Type D – Reliable HDMI Receptacle for Industrial Applications
Purchase the multicomp Micro HDMI Type D receptacle online today to secure a durable, high-performance connector ideal for industrial and high-definition video applications. Featuring a stainless steel shell with nickel plating, gold-flashed contacts, and support for 1080p resolution and 10.2Gbps bandwidth, this connector is built to withstand demanding environments. It offers excellent electrical characteristics, supports 5,000 mating cycles, and complies with RoHS standards. Order now and equip your projects with reliable, high-quality HDMI connections that ensure optimal performance and longevity.
Order your multicomp Micro HDMI Type D mid-mount receptacle today and ensure robust, high-definition connections in your industrial projects.
