MULTICOMP-PRO MC002800 Blade Fuse Block
The Blade Fuse Block with LED Warning Light is a 6-position panel-mount device designed for reliable electrical protection in vehicles and equipment. It features blade fuse holders with quick connect terminals, accommodating up to 6 fuses, and supports a maximum voltage of 32V DC. Made from UL94V-0 PBT housing and a transparent PC cover, it includes a white POM push button for easy operation. Rated for high current outputs, this fuse block is suitable for automotive, marine, and industrial applications where clear circuit status indication and secure connections are essential, with operating temperatures from -20°C to +85°C.
MULTICOMP-PRO MC002800 Blade Fuse Block Specifications:
- Fuse Holder Type: Blade Fuse Holder
- Fuse Holder Terminal: Quick Connect
- Fuse Size: Blade
- No. of Fuses: 6 Fuses
- Input Terminal Rating: #10-32 Threaded Studs (100A Max.)
- Output Terminal Rating: 380A Max. Per Circuit
- Voltage Rating: 32V DC
- Connection Pad: Input Wire Size: #4-6AWG, Output Wire Size: #12-16AWG
- Torque Rating: 20 in-lb (2.25Nm) Max.
- Mounting Torque Rating: 28 in-lb (0.9Nm) Max.
- Operating Temperature: -20°C to +85°C
- Housing & Base Material: PBT, UL94V-0, Black
- Cover Material: PC, UL94V-2, Transparent
- Push Button Material: POM, White
- Terminal Material: Copper, Tin Plated
- Dimensions: Length approximately 64 mm, width approximately 19 mm, height approximately 20 mm

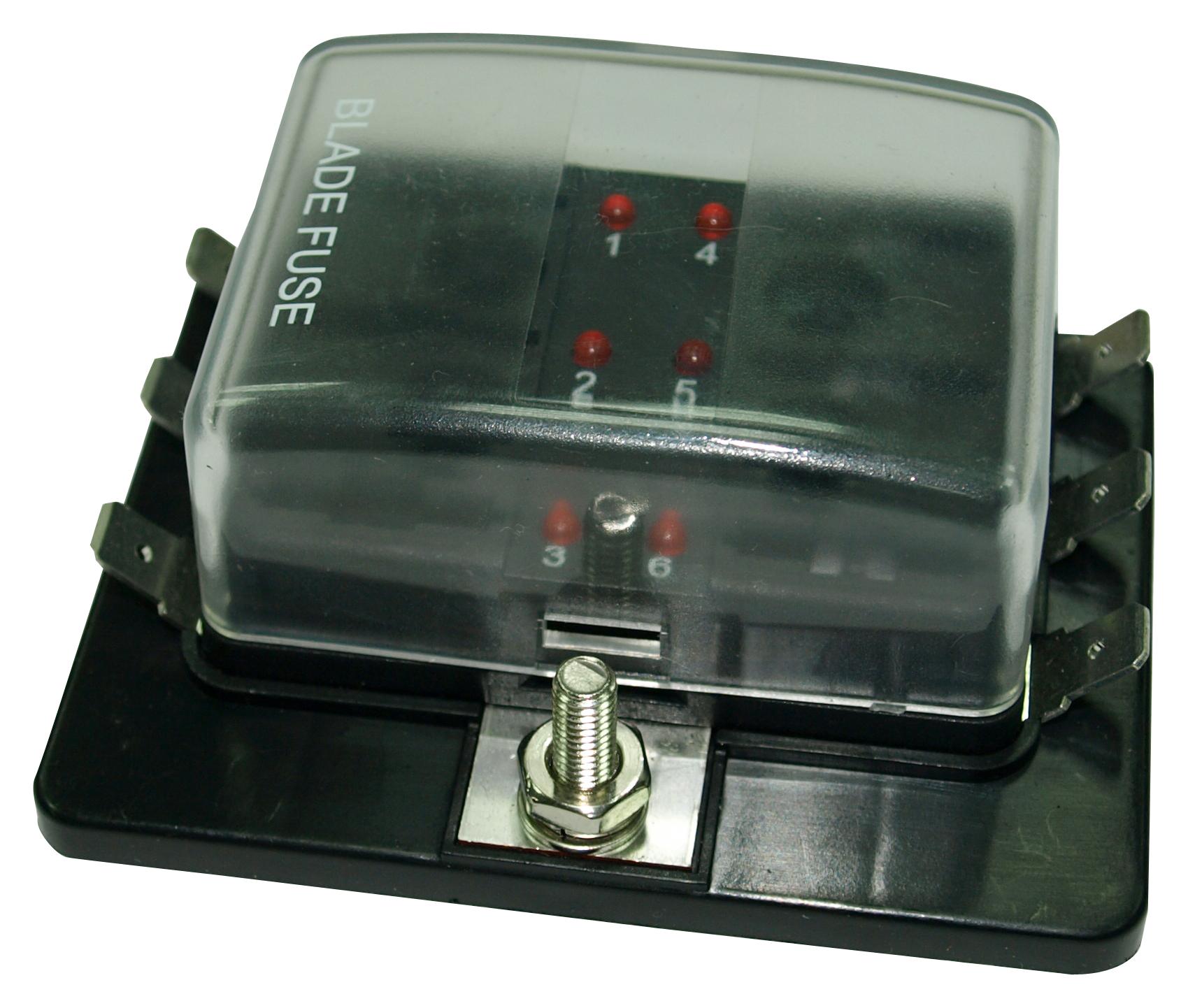

Buy the Buy Multicomp Blade Fuse Block with LED Warning Light Part Number MC002800 Online
Enhance your electrical system with this 6-position blade fuse block featuring an LED warning light for clear circuit status indication. Equipped with quick connect terminals, it supports a maximum voltage of 32V DC, making it ideal for automotive, marine, and industrial applications. Its robust PBT housing and transparent cover provide durability and easy inspection. Rated for high current outputs, this fuse block is easy to install and operate, ensuring safe and reliable protection for sensitive electronics and electrical circuits in various environments.
Order your Multicomp SeriesMC002800 Blade Fuse Block with LED Warning Light today and ensure your circuits are protected with reliable, easy-to-use fusing solutions.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC002800?
You can click on the BUY or RFQ button to purchase MC002800 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002800?
You can download the MC002800 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC002800?
MULTICOMP-PRO
