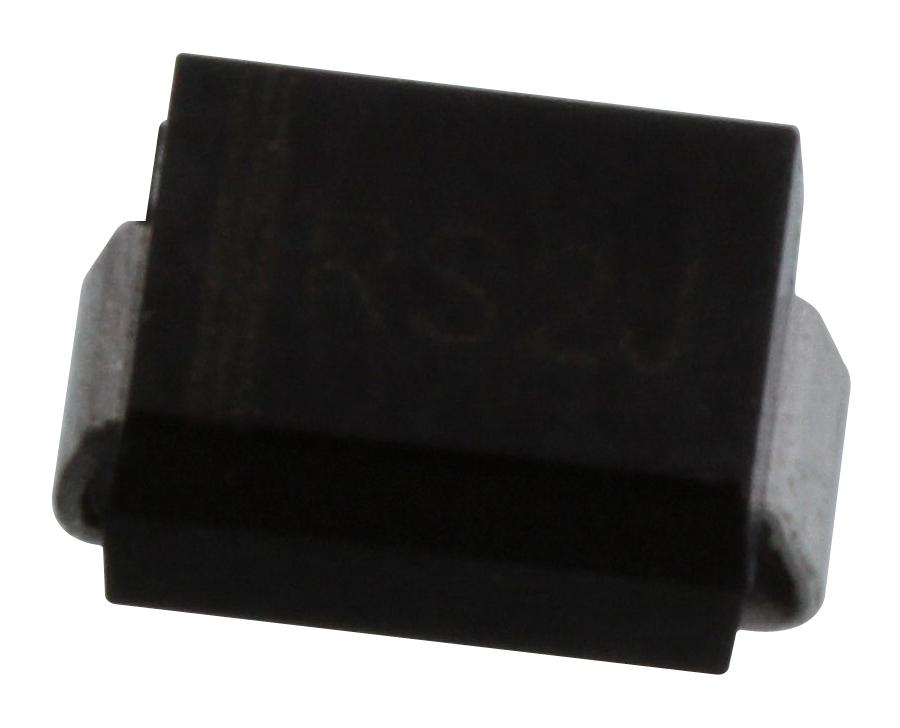

MULTICOMP PRO RS2J Surface Mount Fast Recovery Rectifier
The RS2J series is a high-efficiency, fast recovery glass passivated rectifier suitable for surface mounting in various electronic applications. Featuring low reverse leakage current, low forward voltage drop, and high current capability, these rectifiers are ideal for power supplies and switching circuits. They comply with UL 94V-0 flame resistance standards, ensuring safety and durability. With a wide reverse voltage range from 50 to 800 Volts and a maximum forward current of 2A, they provide reliable performance in resistive, inductive, and capacitive loads, supporting operating temperatures from -55°C to +150°C.
MULTICOMP PRO RS2J Surface Mount Fast Recovery Rectifier Specifications:
- Case: Molded Plastic
- Polarity: Colour band denoting cathode
- Weight: 0.093 grams
- Mounting Position: Any
- Reverse Voltage: 50 to 800 Volts
- Forward Current: 2 Amperes
- Maximum RMS Voltage: 35 to 560 V
- Maximum DC Blocking Voltage: 50 to 800 V
- Peak Forward Surge Current: 60A for 8.3ms
- Peak Forward Voltage at 2A: 1.3 V
- Maximum Reverse Current at 25°C: 5 µA
- Maximum Reverse Recovery Time: 150 to 500 ns
- Junction Capacitance: 20 to 30 pF
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
Buy the Multicomp RS2J+ – Reliable Fast Recovery Rectifier for Industrial Applications
Order the Multicomp RS2J+ surface mount fast recovery rectifier online today for optimal performance in your electronic power supply and switching circuits. Designed with advanced glass passivation for high efficiency, low leakage current, and a broad voltage range up to 800V, this rectifier ensures reliable, safe operation across diverse industrial applications. Its compact molded plastic casing supports any mounting position and features UL 94V-0 flame retardance. Experience fast recovery, high current capacity, and thermal stability, making it a dependable choice for demanding electronic environments.
Get Multicomp RS2J+ today—built for high efficiency, fast switching, and long-lasting durability in various power and switching systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO RS2J?
You can click on the BUY or RFQ button to purchase RS2J from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part RS2J?
You can download the RS2J datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of RS2J?
MULTICOMP PRO
