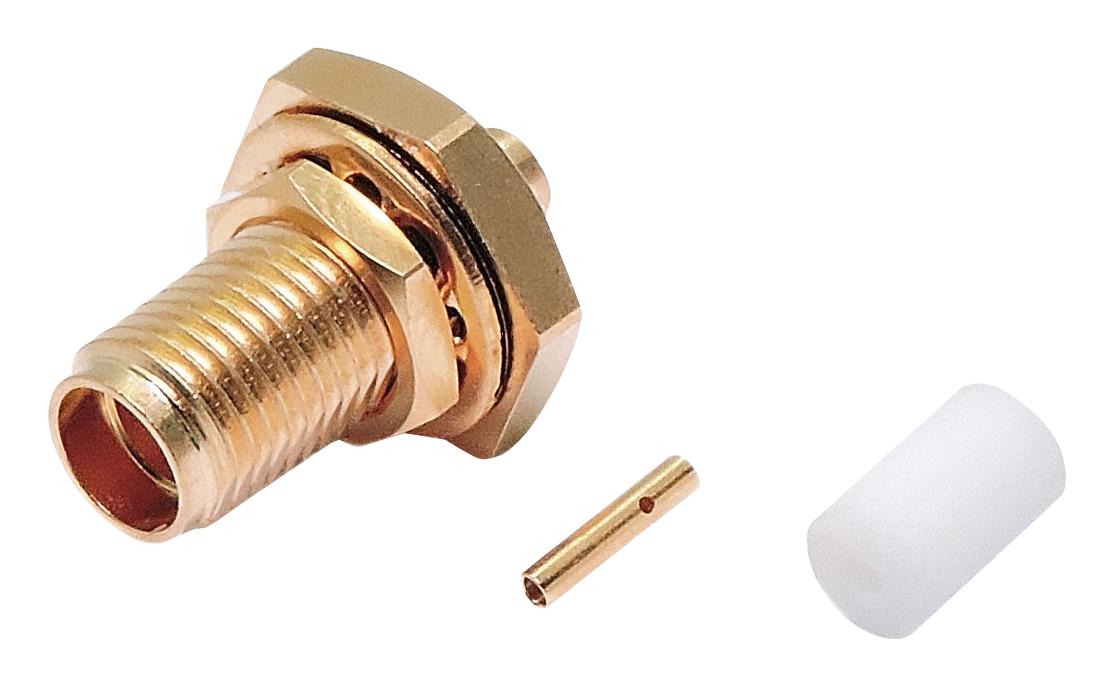

MULTICOMP-PRO MC002923 SMA Bulkhead Jack
The Straight SMA Bulkhead Jack with solder connection is a high-performance coaxial connector designed for reliable, secure connections in RF applications. Crafted with stainless steel and beryllium copper, it features PTFE insulation and a compact bulkhead mount. Operating efficiently within a frequency range up to DC 26.5 GHz and an impedance of 50Ω, it offers excellent VSWR performance, maximum voltage rating of 335V, and robust environmental and mechanical specifications. Ideal for high-frequency microwave systems requiring durable, precise, and secure coaxial terminations.
MULTICOMP-PRO MC002923 SMA Bulkhead Jack Specifications:
- Connector Body Style: Straight Bulkhead Jack
- Connector Mounting: Coaxial Cable
- Coaxial Termination: Solder
- Cable Type: RG-405
- Frequency Range: DC 26.5GHz
- Nominal Impedance: 50Ω
- Voltage Rating: 335V Max.
- VSWR: 1.16 Max. @ 18GHz, 1.20 Max. @ 26.5GHz
- Body Material: Stainless Steel per JIS SUS 303
- Centre Contact: Beryllium Copper per ASTM B196 UNS C17300
- Insulation: PTFE per ASTM D1457 and ASTM D1710
- Operating Temperature: 1-65°C to +165°C
- Interface: MIL-STD-348A
- Cable Attachment: Solder, Inner and Outer
- Mounting Hole Dimensions: 6.6mm (nominal)
- Physical: Hex size approximately 8.0mm and 11.0mm
- Certifications: Designed for high-frequency microwave applications, robust durability
Buy the Buy Multicomp SMA Bulkhead Jack Part Number MC002923 Online
Secure your RF connections with the high-quality SMA Bulkhead Jack featuring solder connection, stainless steel construction, and PTFE insulation. This durable, precision-engineered connector supports frequencies up to 26.5 GHz, ensuring low VSWR and stable impedance for optimal microwave system performance. Its robust design includes MIL-STD compliance and environmental resilience, making it ideal for demanding applications. Purchase online today to ensure reliable, high-performance coaxial connections in your high-frequency systems, backed by fast delivery and excellent customer support.
Buy Multicomp SMA Bulkhead Jack MC002923 now and experience unmatched reliability and high-frequency performance for your RF applications.
