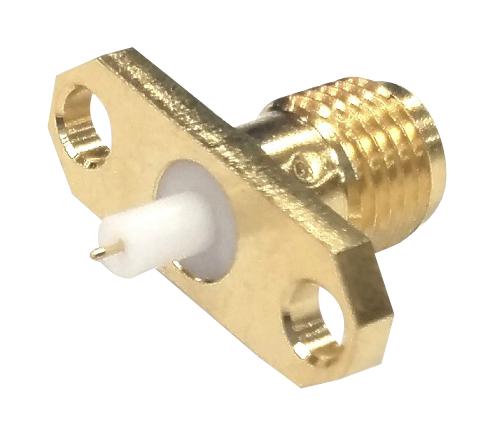

MULTICOMP-PRO MC002930 RF Coaxial Connector
The straight SMA 2-hole flange mount jack receptacle is designed for high-frequency applications up to 26.5 GHz, featuring a solder coaxial termination and PCB or flange mounting. Crafted with stainless steel body and beryllium copper center contact, it offers excellent durability, low VSWR of 1.17 max at 18 GHz, and insulation with PTFE. Operating within -65°C to +165°C, this precision connector is compliant with MIL-STD-348A standards, ensuring reliable performance in demanding environments and compatibility with various electronic systems.
MULTICOMP-PRO MC002930 RF Coaxial Connector Specifications:
- Connector Body Style: Straight Jack Receptacle
- Coaxial Termination: Solder
- Connector Mounting: PCB / 2-Hole Flange Mount
- Frequency Range: DC to 26.5 GHz
- Nominal Impedance: 50 Ohms
- Voltage Rating: 500V Max
- VSWR: 1.17 Max at 18 GHz, 1.21 Max at 26.5 GHz
- Bodies Material: Stainless Steel per JIS SUS-303
- Centre Contact Material: Beryllium Copper per ASTM B196 UNS C17300
- Insulation Material: PTFE per ASTM D1457 and D1710
- Operating Temperature: -65°C to +165°C
- Interface Standard: MIL-STD-348A
- Body Finish: Gold-plated
- Center Contact Finish: Gold-plated
- Dimensions: Millimeters provided for mounting and connector size
Buy the Premier Series RF Coaxial Connectors: MC002930
Upgrade your electronic systems with the rugged, high-performance RF coaxial connector designed for demanding environments. Featuring a stainless steel body, gold-plated contacts, and PTFE insulation, it provides excellent signal integrity up to 26.5 GHz. With its precise MIL-STD-348A interface, this connector offers reliable, low VSWR connections suitable for aerospace, defense, and communication applications. Easy to install with PCB or flange mounting options, it ensures durability, temperature resilience from -65°C to +165°C, and compliance with industry standards. Order online today for fast delivery and quality assurance.
Order your Premier Series RF Coaxial Connectors MC002930 today and ensure high-quality, dependable RF connections for your critical projects.
