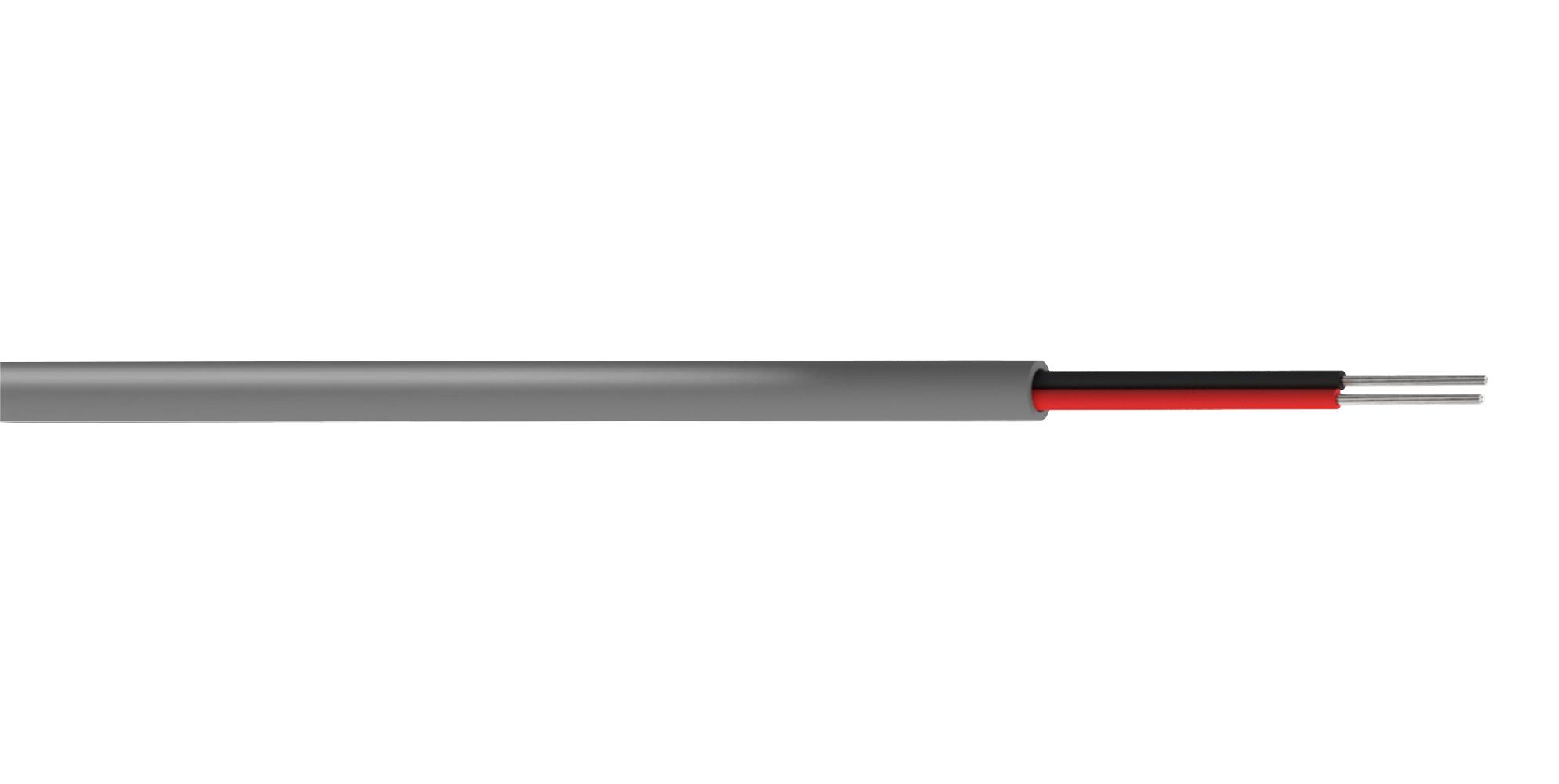

MULTICOMP PRO PP000861 Instrumentation Cable
These unscreened paired cables are suitable for use in instrumentation, data, audio, and security applications where electrical interference protection is not required. Constructed with stranded tinned copper conductors, PVC insulation, and a low smoke and fume sheath, they support voltage ratings up to 300V and temperature ranges from -20°C to +80°C. Available in various sizes, including 20 AWG and 22 AWG, with core identifications for easy installation, these cables are compliant with RoHS standards and designed for reliable signal transmission in non-critical interference environments.
MULTICOMP PRO PP000861 Instrumentation Cable Specifications:
- Voltage Rating: 300V
- Temperature Rating: -20°C to +80°C
- Core Identification: Pair 1 Black & Red, Grey
- Construction: Stranded tinned copper conductor, PVC insulation, LSF sheath
- Capacitance at 1kHz: 80.4 pF/m (PP000861), 98.4 pF/m (PP000870)
- Resistance of Conductor at 20°C: 41.8 Ω/km (PP000861), 60.2 Ω/km (PP000870)
- Number of Pairs: 1 (PP000861), 22 (PP000870)
- Conductor Area: 0.52 mm² (PP000861), 0.33 mm² (PP000870)
- Conductor Strands: 7 x 0.3 mm (PP000861), 7 x 0.24 mm (PP000870)
- Nominal Overall Diameter: 25 mm (PP000861), 22 mm (PP000870)
- Weight: 46 kg/km (PP000861), 43 kg/km (PP000870)
- Sheath Colour: Grey
- Application: Suitable for instrumentation, security, data, and audio cables without interference protection.
Buy the Multicomp PP000861 U+2013 Reliable Instrumentation Cables for Industrial Applications
Order the Multicomp PP000861 unscreened paired cable online today and enjoy prompt delivery of reliable, high-quality cables designed for instrumentation, audio, and data applications. With proven construction using stranded tinned copper conductors, PVC insulation, and low smoke and fume sheath, these cables ensure safety and performance at voltage ratings up to 300V and temperature ranges from -20°C to +80°C. Perfect for projects demanding durable, RoHS-compliant wiring solutions, they simplify installation with clearly identified cores and consistent dimensions.
Buy Multicomp PP000861 now and experience reliable signal transmission with high-quality unscreened cables for industrial and security setups.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP000861?
You can click on the BUY or RFQ button to purchase PP000861 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP000861?
You can download the PP000861 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP000861?
MULTICOMP PRO
