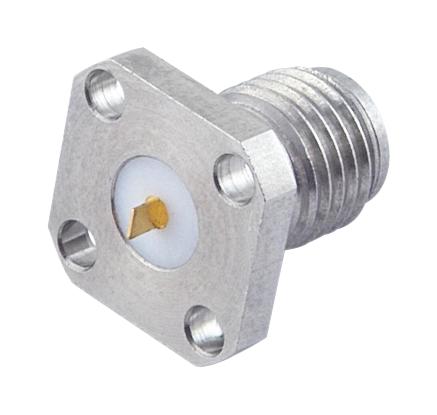

MULTICOMP PRO MC002933 RF Connector
This straight SMA square flange mount jack receptacle features a solder coaxial termination, stainless steel body, and beryllium copper center contact. With a frequency range up to DC 26.5GHz and impedance of 2500 ohms, it offers reliable high-frequency performance suitable for demanding RF and microwave applications. The device complies with MIL-STD-348A standards and operates in temperatures between -65°C and +165°C. Constructed with corrosion-resistant materials and gold-plated contacts, it guarantees durability and excellent electrical conductivity in various industrial and communication systems.
MULTICOMP PRO MC002933 RF Connector Specifications:
- Connector Body Style: Straight Jack Receptacle
- Coaxial Termination: Solder
- Connector Mounting: Square Flange Mount
- Frequency Range: DC 26.5GHz
- Nominal Impedance: 2500 ohms
- Voltage Rating: 500V Max
- VSWR: 1.17 Max at 18GHz / 1.21 Max at 26.5GHz
- Bodies Material: Stainless Steel per JIS SUS-303
- Centre Contact Material: Beryllium Copper per ASTM B196 UNS C17300
- Insulation Material: PTFE per ASTM D1457 and ASTM D1710
- Operating Temperature: -65°C to +165°C
- Body Finish: Gold 3μm Min.
- Centre Contact Finish: Gold 50μm Min.
- Interface: MIL-STD-348A
- Dimensions: Millimetres and Inches (not specified here)
Buy the Multicomp Pro MC002933 – Reliable RF Solder SMA Square Flange Mount Jack Receptacle for Industrial Applications
Enhance your RF and microwave systems with this high-quality SMA square flange mount jack receptacle. Featuring solder coaxial termination, stainless steel body, and gold-plated beryllium copper contact, it ensures durability and superior electrical performance up to 26.5GHz. Suitable for industrial, communication, and high-frequency applications, this connector complies with MIL-STD-348A and operates reliably in extreme temperatures ranging from -65°C to +165°C. Invest in this robust, corrosion-resistant RF connector to improve system reliability and signal integrity.
Buy Multicomp Pro MC002933 now and experience unmatched reliability and high-frequency performance in RF and microwave systems.
