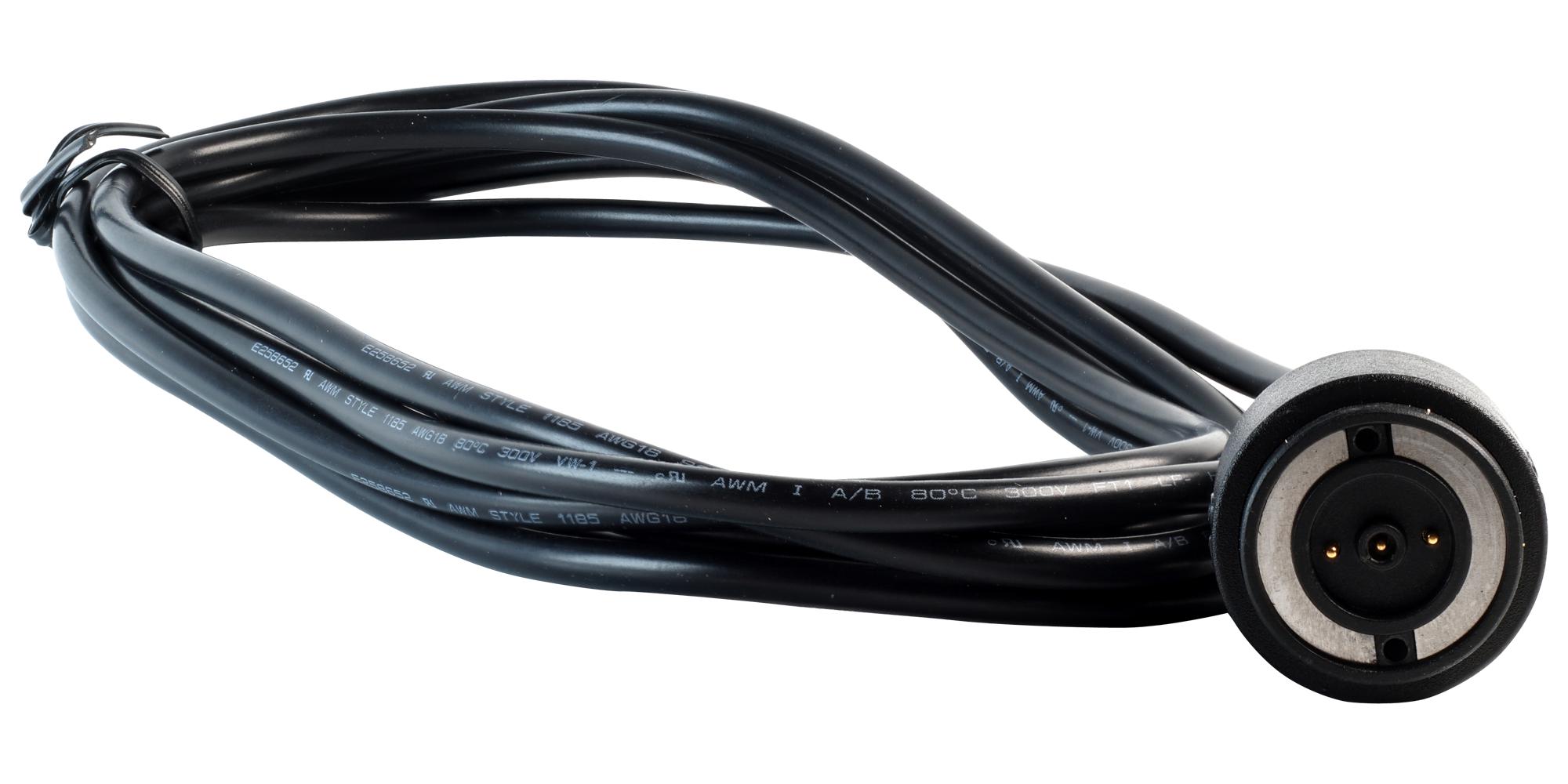

MULTICOMP PRO MP002496 Magnetic Connector
The MP magnetic connectors are engineered for quick disconnection and ease of use in environments susceptible to accidental damage. Designed for low-voltage applications like battery charging, they support a rated current of 5A at 30V AC/DC. These connectors feature a magnetic mating mechanism that allows 360-degree rotation without losing contact, providing flexibility and reliability. The panel mount variant fits a 20.75mm cut-out and supports solder or pre-wired terminations. With IP67-rated components but not waterproof at connection points, they are ideal for automation, process control, portable devices, and safety systems. Compact and durable, these connectors meet RoHS standards and are easy to install and maintain.
MULTICOMP PRO MP002496 Magnetic Connector Specifications:
- Rated Voltage: 30V AC/DC
- Rated Current: 5A
- Insulation Resistance: >100MQ Min.
- DWV: 500Vrms
- IP Rating: IP67 components, connection point not waterproof
- Housing Material: Thermoplastic; Colour: Black
- Contacts Material: Copper Alloy; Finish: Au Plated
- Magnets: Nd-Fe-B N50; Finish: Ni
- Cable OD: 3.5mm, Colour: Black
- Inner Mold: White or Black
- Over Mold: PVC; Colour: Black
- Steel Sheet: SUS430
- Wire: UL1007 18AWG, Colour: Black
- Panel Cut-Out: 20.75mm diameter
- Dimensions: Typical connector length approximately 40mm
Buy the multicomp Series Magnetic Connector MP002496
Purchase the multicomp magnetic connector MP002496 online today to enhance your automation projects and portable device safety. This high-quality, low-voltage connector supports 5A at 30V AC/DC, featuring a 360-degree rotation and IP67-rated components for durability and protection. Easy to install with solder or pre-wired options, it is ideal for process control, safety systems, and portable applications. Enjoy fast delivery and trusted quality by buying online now, ensuring your project remains reliable, flexible, and efficient in demanding environments.
Buy multicomp MP002496 now and experience reliable magnetic connectivity with easy installation for low-voltage automation applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002496?
You can click on the BUY or RFQ button to purchase MP002496 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002496?
You can download the MP002496 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002496?
MULTICOMP PRO
