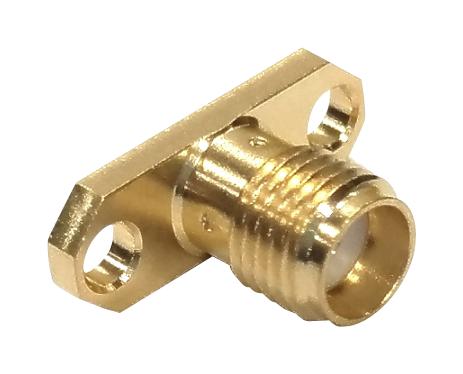

MULTICOMP-PRO MC002940 RF SMA Connector
This Straight SMA 2-Hole Flange Mount Field Jack Receptacle is designed for RF applications operating up to 26.5 GHz, offering a maximum voltage rating of 335V. Constructed with stainless steel bodies and beryllium copper center contacts, it provides excellent durability, high electrical performance, and resistance to harsh environments. The connector features PTFE insulation and complies with MIL-STD-348A interface standards. Suitable for precision RF and microwave signals, it ensures reliable connections in complex systems, with operating temperatures spanning from -55°C to +165°C.
MULTICOMP-PRO MC002940 RF SMA Connector Specifications:
- Connector Body Style: Straight SMA
- Mounting: 2-Hole Flange Mount
- Frequency Range: DC 26.5GHz
- Impedance: 50Ω
- Voltage Rating: 335V Max
- VSWR: 21.17 Max. at 18GHz / 1.21 Max. at 26.5GHz
- Materials: Bodies Stainless Steel per JIS SUS-303, Center Contact Beryllium Copper per ASTM B196 UNS C17300, Insulation PTFE per ASTM D1457 and D1710
- Mechanical Interface: MIL-STD-348A
- Operating Temperature: -55°C to +165°C
- Body Finish: Gold Plated, minimum 3 microinches
- Center Contact Finish: Gold Plated, minimum 50 microinches
Buy the Buy Multicomp SMA Connector Part Number MC002940 Online
Purchase the Multicomp SMA RF Connector online today to ensure your RF and microwave systems perform flawlessly. With its stainless steel body, gold-plated contacts, and PTFE insulation, this connector provides excellent durability, minimal signal loss, and high reliability. Ideal for applications up to 26.5 GHz, it supports high-frequency signals with compact flange mounting for ease of installation. Whether you need it for testing, communications, or instrumentation, buying online guarantees fast delivery and competitive pricing for your technical needs.
Order your Multicomp SeriesMC002940 RF SMA Flange Mount Receptacle today and ensure reliable high-frequency connections for your RF projects.
