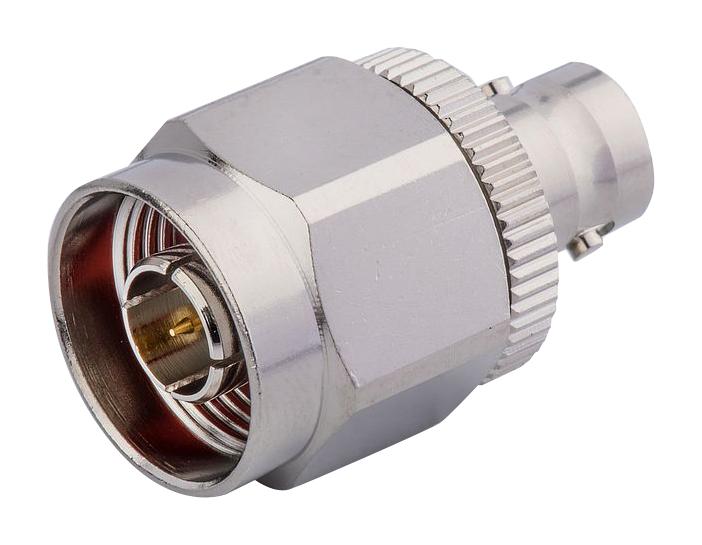

MULTICOMP PRO MC002943 RF Connector Adaptor
This straight N plug to BNC jack adaptor is designed for reliable frequency transmission from DC up to 6GHz with a 75Ω impedance. Made of brass with nickel plating and featuring a beryllium copper center contact, it ensures durability and optimal electrical performance. The PTFE insulator offers excellent insulation properties, supporting high voltage ratings up to 500V. Suitable for professional RF applications, it complies with MIL-STD-348B interface standards and operates effectively within -65°C to +165°C environmental temperatures. A versatile accessory for connecting N type and BNC connectors in high-frequency systems.
MULTICOMP PRO MC002943 RF Connector Adaptor Specifications:
- Adaptor Style: Straight Adaptor
- Connector Type A: N Plug
- Connector Type B: BNC Jack
- Frequency Range: DC-6GHz
- Impedance: 75Ω
- Voltage Rating: 500V Max
- VSWR: 1.2 Max
- Bodies: Brass per JIS-3604
- Centre Contact: Beryllium Copper per ASTM B196 UNS C17300
- Insulation: PTFE per ASTM D1457 and ASTM D1710
- Interface: MIL-STD-348B
- Operating Temperature: -65°C to +165°C
- Materials & Finish: Brass shells with nickel plating, Beryllium Copper contact, Silicone gasket, PTFE insulation
- Dimensions: Millimetres (Inches): Shell diameter 17.0660 / 0.671, Centre contact diameter 1.256 / 0.049, Insulation thickness 10.51 / 0.413
- Part Number: MC002943
Buy the Multicomp MC002943 U+2013 Reliable RF Adaptor for Industrial Applications
Enhance your RF system with this high-quality N plug to BNC jack adaptor. Designed for demanding industrial and professional applications, it supports frequencies up to 6GHz with 75Ω impedance for excellent signal integrity. Constructed from durable brass with nickel plating and fitted with a high-performance Beryllium Copper contact, it assures durability and excellent electrical performance. Its PTFE insulation provides outstanding voltage handling and temperature resistance, making it ideal for high-frequency, high-voltage, and harsh environmental conditions. Order online now and upgrade your connectivity solutions with confidence.
Order your Multicomp MC002943 RF adaptor today and ensure your high-frequency connections are reliable and efficient for industrial use.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002943?
You can click on the BUY or RFQ button to purchase MC002943 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002943?
You can download the MC002943 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002943?
MULTICOMP PRO
