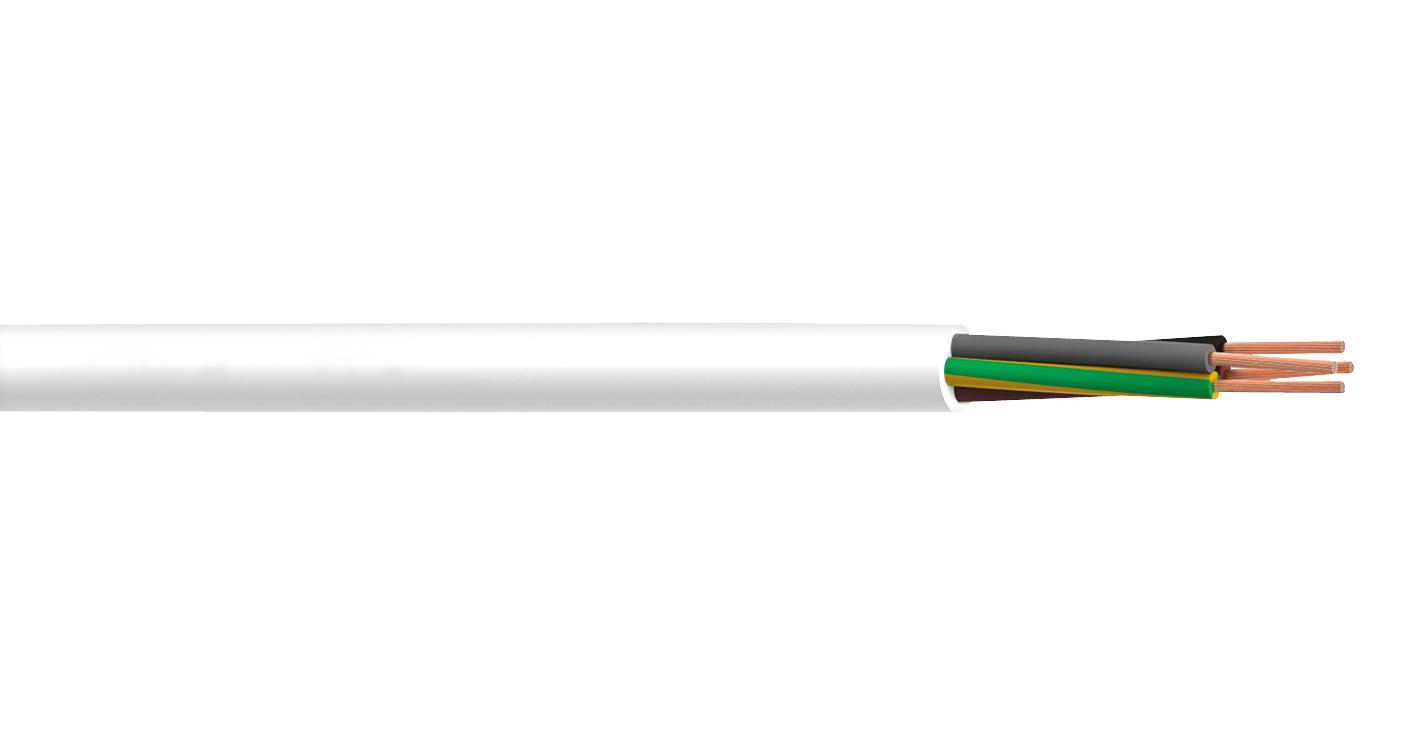

MULTICOMP-PRO PP002155 Flexible Cable
The 309-Y / HOSV2V2-F flexible cable is designed for internal wiring and supply connections to electrical equipment, especially suitable for high-temperature zones such as lighting. Made with Class 5 flexible copper conductors and PVC insulation and sheath, this cable complies with BS EN 50525-2-11 and IEC standards. Available in multiple core configurations with white color sheath, it offers reliable performance with voltage ratings of 300/500V, temperature tolerance from 0°C to +90°C, and minimum bending radii of 6x to 10x overall diameter. Ideal for indoor electrical installations requiring flexible, durable wiring solutions on reels of 100 meters or by meter.
MULTICOMP-PRO PP002155 Flexible Cable Specifications:
- Voltage Rating: 300/500V
- Temperature Rating: 0°C to +90°C
- Minimum Bending Radius: Fixed: 6 x overall diameter, Flexed: 10 x overall diameter
- Core Identification: 2-core Blue & Brown, 3-core Green/Yellow, Blue & Brown, 4-core Green/Yellow, Brown, Black & Grey
- Conductor: Class 5 flexible copper conforming to BS EN 60228
- Insulation: PVC Type TI3 according to BS EN 50363
- Sheath: PVC Type TM3 according to BS EN 50363
- Cable Standards: BS EN 50525-2-11, BS EN/IEC 60332-1-2
- Nominal Cross-Sectional Area: 0.75 mm², 1 mm², 1.5 mm², 2.5 mm²
- Conductor Diameter: 0.21 mm, 0.26 mm
- Maximum Resistance at 20°C: 19.5 Ω/km for 1 mm², 13.3 Ω/km for 1.5 mm²
- Current Capacity: Up to 20 Amps for 1.5 mm², 10 Amps for 1 mm²
- Voltage Drop: 46 mV/Alm for 1 mm², 32 mV/Alm for 1.5 mm²
- Cable Length: Available in 100 m reels or per meter
Buy the Buy multicomp Flexible Cable Part Number PP002155 Online
Purchase the multicomp PP002155 flexible cable online today for reliable internal wiring in high-temperature zones. This durable cable features PVC insulation and sheath, complying with BS standards, and supports indoor electrical applications. Available in 0.75mm² cross-sectional area with a white sheath, it offers flexibility, easy installation, and high current capacity. Reels of 100 meters or by meter, ensuring versatile usage for various electrical projects. Order now to ensure safe, efficient, and long-lasting wiring solutions for your indoor electrical requirements.
Buy multicomp PP002155 flexible cable now and experience durable, high-performance wiring suitable for indoor high-temperature electrical installations.
