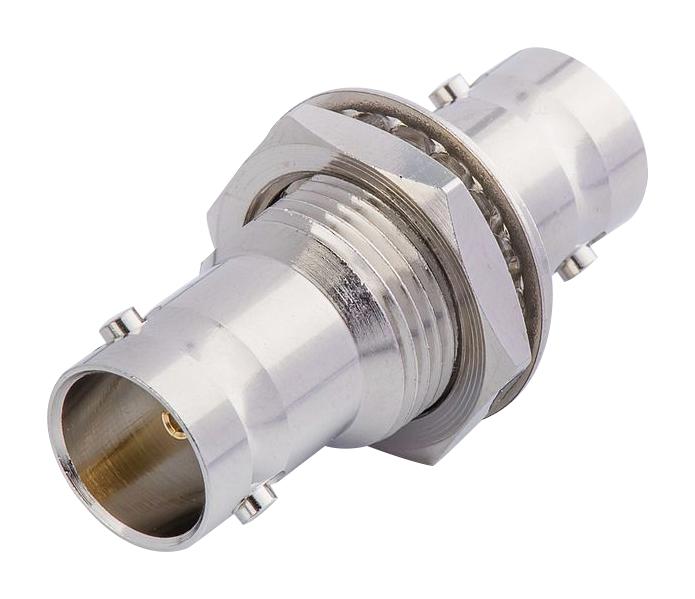

MULTICOMP-PRO MC002950 RF Coaxial Connector
The straight BNC bulkhead jack adapter provides reliable coaxial connection with a 6GHz frequency range, 75Ω impedance, and maximum voltage rating of 500V. Made with brass and beryllium copper, it features PTFE insulation for durable performance in various environments. It conforms to MIL-STD-348B standards, ensuring mechanical robustness and proper electrical contact. Suitable for RF and communication applications, it offers a secure and efficient connection with precise dimensions and nickel plating for corrosion resistance, operating efficiently from -55°C to +165°C.
MULTICOMP-PRO MC002950 RF Coaxial Connector Specifications:
- Connector Body Style: Straight Bulkhead Adapter
- Coaxial Termination: BNC Jack
- Connector Mounting: BNC Jack
- Frequency Range: DC 6GHz
- Nominal Impedance: 75Ω
- Voltage Rating: 500V Max
- VSWR: 1.2 Max
- Bodies Material: Brass per JIS-C3604
- Centre Contact Material: Beryllium Copper per ASTM B196 UNS C17300
- Insulation: PTFE per ASTM D1457 and ASTM D1710
- Interface Standard: MIL-STD-348B
- Operating Temperature Range: -55°C to +165°C
- Dimensions: Refer to diagram, millimetres (Inches)
- Nut Material: Brass Nickel Plated
- Washer Material: Steel Nickel and Brass Nickel Plated
- Centre Contact Plating: Gold 3μ
- Part Number: MC002950
Buy the Multicomp Series RF Coaxial BNC: MC002950
Secure your RF and communication systems with the high-quality BNC bulkhead jack adapter. Featuring 75Ω impedance, a 6GHz frequency range, and durable brass and beryllium copper construction, it ensures reliable signal connections when you need them most. Its PTFE insulation and MIL-STD-348B compliance guarantee optimal performance in demanding environments. Easy to install with nickel-plated components for corrosion resistance, this adapter operates efficiently from -55°C to +165°C, making it ideal for professional applications requiring stability and precision.
Buy Multicomp Series BNC bulkhead jack adapter now and experience unmatched reliability and performance for your RF and communications projects.
