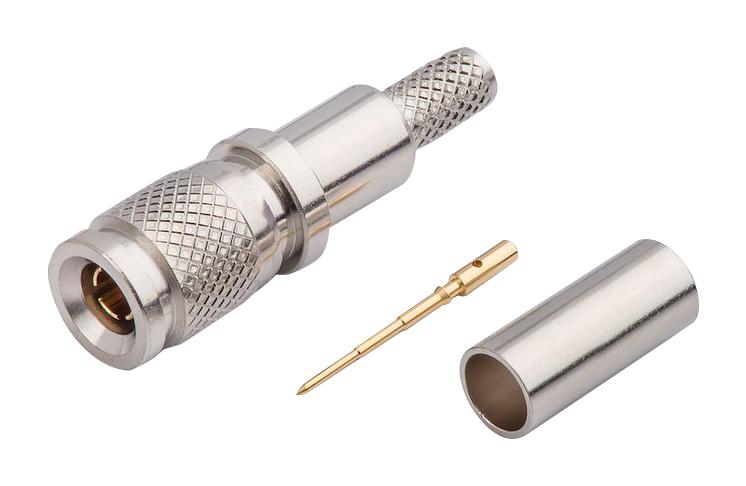

MULTICOMP PRO MC002952 RF Coaxial Connector
The straight 1.0/2.3 plug crimp connector features a brass body with nickel plating, designed for coaxial cable Belden 1855A. It operates over DC to 6GHz frequency, with a 75 Ohm impedance, and a voltage rating up to 250V. The connector's crimp ferrule is brass, requiring a 4.6mm hex crimp tool, ensuring a secure cable attachment. It adheres to DIN 41626-2 standards, with outer crimp and inner solder cable connections. Suitable for high-frequency applications, it withstands temperatures from -55°C to +125°C, providing reliability in demanding environments.
MULTICOMP PRO MC002952 RF Coaxial Connector Specifications:
- Connector Body Style: Straight Plug
- Coaxial Termination: Crimp
- Connector Mounting: Cable
- Coaxial Cable Types: Belden 1855A
- Frequency Range: DC 6GHz
- Nominal Impedance: 75Ω
- Voltage Rating: 250V Max.
- VSWR: 1.3 Max.
- Bodies: Brass per JIS-C3604
- Center Contact: Brass per JIS-C3604
- Insulation: PTFE per ASTM D1457 and ASTM D1710
- Crimp Ferrule: Brass per JIS-C2700
- Operating Temperature: -55°C to +125°C
- Cable Attachment: Outer: Crimp; Inner: Solder
- Crimp Size Required: 4.6mm (0.181") Hex. Crimp Tool
- Material: Brass, Beryllium Copper, PTFE
- Mechanical Standards: DIN 41626-2
- Environmental Range: -55°C to +125°C
Buy the Multicomp Series RF Coaxial Connector: MC002952
Enhance your RF setups with this high-quality coaxial connector designed for professional-grade applications. Made with durable brass and PTFE insulation, it supports DC to 6GHz frequency range with 75Ω impedance. The crimp connection ensures a secure fit, with compatibility for Belden 1855A cables. Suitable for demanding environments, this connector operates from -55°C to +125°C, making it ideal for high-performance, reliable RF connections in communication, measurement, and broadcast systems. Purchase online today for quick, reliable delivery!
Buy Multicomp Series RF coaxial connector MC002952 now and experience unmatched reliability and high-frequency performance in your RF applications.
