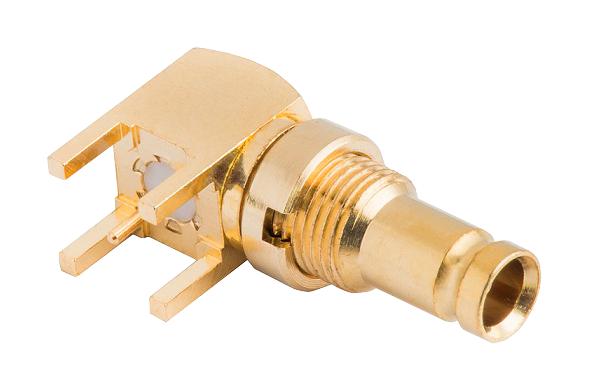

MULTICOMP-PRO MC002954 Coaxial PCB Connector
The Right Angle 1.0/2.3 Bulkhead PCB Mount Jack Receptacle is a high-frequency coaxial connector designed for PCB mounting applications. Crafted from brass and beryllium copper with PTFE insulation, it offers excellent electrical performance with a frequency range up to DC 6GHz, and a nominal impedance of 75Ω. The connector features a through-hole coaxial termination, robust mechanical construction meeting DIN 41626-2 standards, and operates effectively from -55°C to +125°C, making it ideal for demanding industrial and communication system environments.
MULTICOMP-PRO MC002954 Coaxial PCB Connector Specifications:
- Connector Body Style: Right Angle Bulkhead Jack Receptacle
- Coaxial Termination: Through Hole
- Connector Mounting: PCB
- Frequency Range: DC 6GHz
- Nominal Impedance: 75Ω
- Voltage Rating: 250V Max.
- VSWR: 1.3 Max.
- Bodies: Brass per JIS-C3604
- Centre Contact: Beryllium Copper per ASTM B196 UNS C17300
- Insulation: PTFE per ASTM D1457 and ASTM D1710
- Interface: DIN 41626-2
- Operating Temperature: -55°C to +125°C
- Material: Brass, Beryllium Copper, PTFE
- Dimensions: Millimetres (Inches) - 0.600 (0.026)
Buy the Multicomp Pro MC002954 – Reliable PCB Mount Coaxial Connector for Industrial Applications
Purchase the Coaxial PCB Connector online today and ensure your industrial and communication systems operate at peak performance. Designed with high-quality brass, beryllium copper, and PTFE insulation, this connector supports frequencies up to 6GHz and features a robust through-hole mounting for reliable connection. Its resistance to temperature extremes from -55°C to +125°C makes it suitable for demanding environments, providing excellent impedance matching with 75Ω for optimal signal integrity. Order now for fast delivery and consistent quality.
Get Multicomp Pro MC002954 today—built for precision and long-lasting durability in high-frequency industrial networking.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC002954?
You can click on the BUY or RFQ button to purchase MC002954 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002954?
You can download the MC002954 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC002954?
MULTICOMP-PRO
