MULTICOMP PRO MC002988 RF Cable Assembly

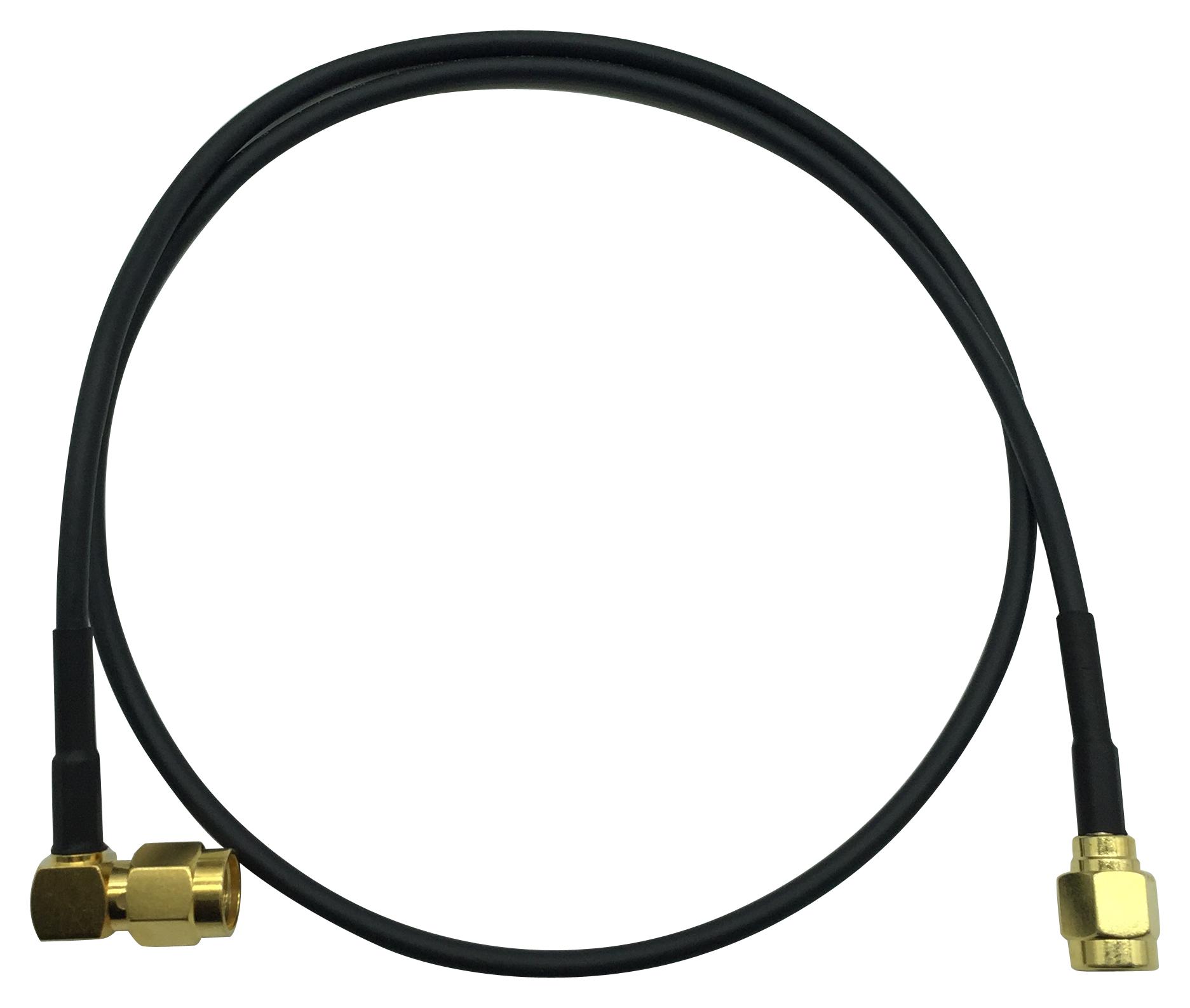

This RF cable assembly features an SMA right angle plug and a straight plug, with RG-174 cable type, suitable for frequencies up to 3GHz. Designed with a durable brass body, gold-plated contacts, and PTFE insulation, it is RoHS compliant and offers excellent impedance matching at 50Ω. The assembly measures 517mm in length, with a black jacket, and is rated for 335V RMS voltage. It undergoes 500 mating cycles, ensuring reliable performance in demanding RF applications including communications and testing environments.
MULTICOMP PRO MC002988 RF Cable Assembly Specifications:
- Cable Length: 517mm / 20.35"
- Connector Type A: SMA Right Angle Plug
- Connector Type B: SMA Straight Plug
- Cable Type: RG-174
- Impedance: 50Ω
- Frequency Range: 0-3GHz
- VSWR: 1.5@3GHz
- Return Loss: 13.979dB@3GHz
- Voltage Rating: 335V RMS
- Insulation Resistance: 5,000MQ Min.
- Dielectric Withstanding Voltage: 750V AC / 1 min.
- SMA Contact Resistance: Center: 3mΩ Max., Outer: 2mΩ Max.
- Body Material: Brass, Gold Plated
- Center Contact Material: Brass, Gold Plated
- Insulating Material: PTFE
- Durability: 500 mating cycles
- Jacket Colour: Black
Buy the Multicomp RF Cable Assembly – Reliable RF Connectors for Industrial Applications
Purchase the Multicomp RF cable assembly with SMA right angle and straight plugs today. This 517mm RG-174 cable offers excellent impedance matching, durability of 500 mating cycles, and high performance up to 3GHz. Perfect for communications, testing, and RF measurement applications, it features gold-plated brass connectors, PTFE insulation, and RoHS compliance. Ensure reliable, high-quality connections in your projects by ordering this robust RF cable assembly online now, and enjoy fast delivery and competitive pricing for your industrial RF needs.
Order your Multicomp series MC002988 RF cable assembly today and ensure dependable RF connections with high-quality SMA plugs and RG-174 cable.
