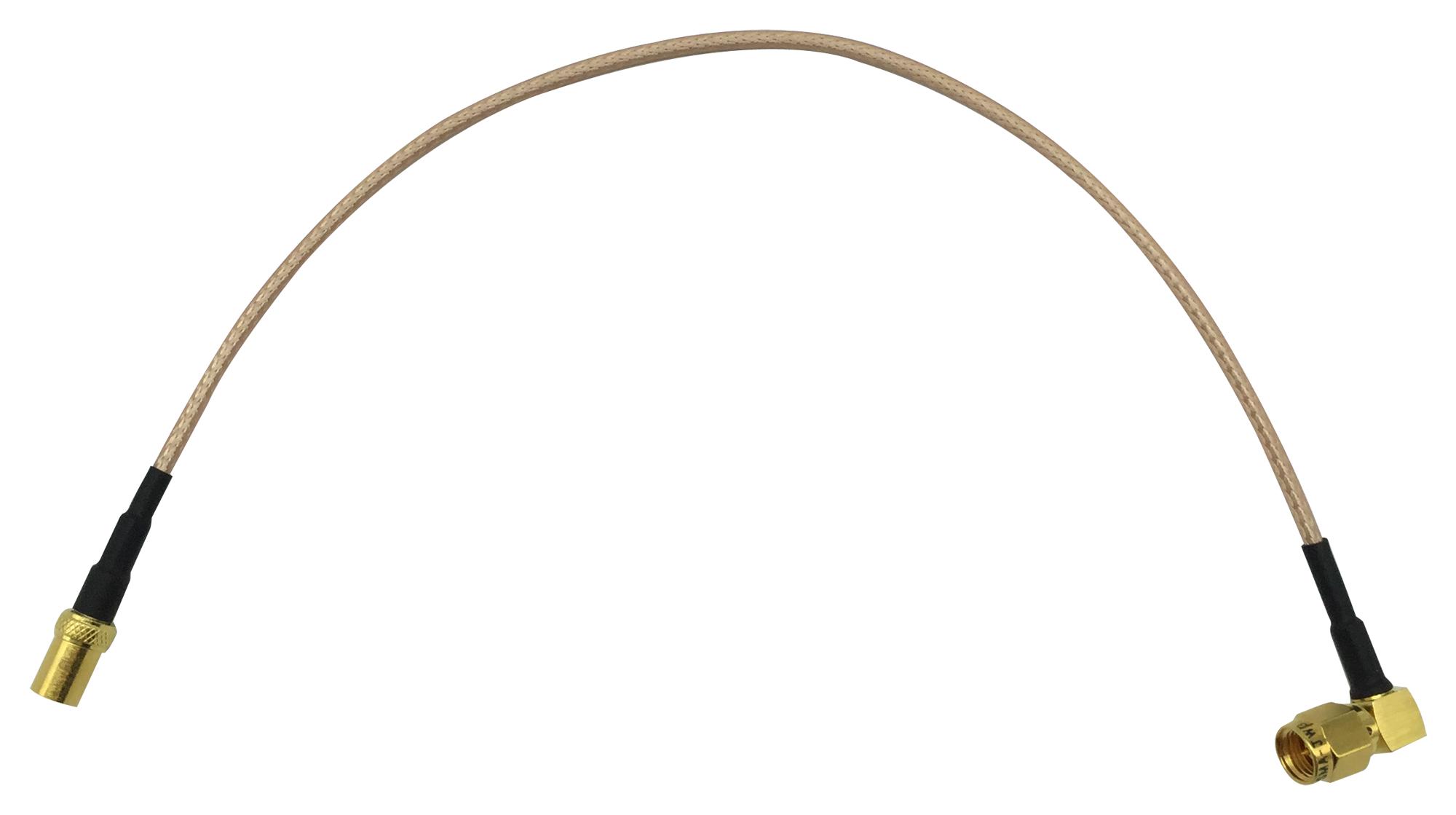

MULTICOMP-PRO MC002990 RF Cable Assembly
The RF Cable Assembly features an SMA right-angle plug and an SMB straight jack, constructed with RG-316 cable for reliable high-frequency connections up to 3GHz. With a length of 260mm, it offers excellent impedance matching, low VSWR of 1.5 at 3GHz, and significant return loss. The assembly supports voltage ratings up to 335V RMS and withstands dielectric voltage of 750V AC for 1 minute. Made with gold-plated brass and beryllium copper contacts, it ensures durability and reduced contact resistance, suitable for high-frequency RF applications.
MULTICOMP-PRO MC002990 RF Cable Assembly Specifications:
- Cable Length: 260mm / 10.24 inches
- Connector Type A: SMA Right Angle Plug
- Connector Type B: SMB Straight Jack
- Cable Type: RG-316
- Impedance: 50Ω
- Frequency Range: up to 3GHz
- VSWR: 1.5 at 3GHz
- Return Loss: 13.979dB at 3GHz
- Voltage Rating: 335V RMS
- Insulation Resistance: 1,000MO Min.
- Dielectric Withstanding Voltage: 750V AC / 1 min.
- Contact Resistance (Centre): 3mΩ Max.
- Contact Resistance (Outer): 2mΩ Max.
- Durability: 500 mating cycles
- Body Material: Brass/Beryllium Copper, Gold Plated
- Centre Contact Material: Brass/Beryllium Copper, Gold Plated
- Insulating Material: PTFE
Buy the Multicomp Series RF Cable Assembly: SMA R/A Plug - SMB Straight Jack, 260mm
Purchase the Multicomp RF Cable Assembly with SMA right-angle plug and SMB straight jack online today. This 260mm high-frequency cable features gold-plated contacts, low VSWR of 1.5 at 3GHz, and withstands voltage up to 335V RMS. Designed with RG-316 cable, it offers excellent impedance matching, durability, and RoHS compliance. Perfect for professional RF solutions, it ensures reliable connections in high-frequency systems, boasting 500 mating cycles and robust construction for long-term use. Order now for premium RF connectivity.
Buy Multicomp MC002990 RF Cable Assembly now and experience unmatched high-frequency performance and durable connections for your RF projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC002990?
You can click on the BUY or RFQ button to purchase MC002990 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002990?
You can download the MC002990 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC002990?
MULTICOMP-PRO
