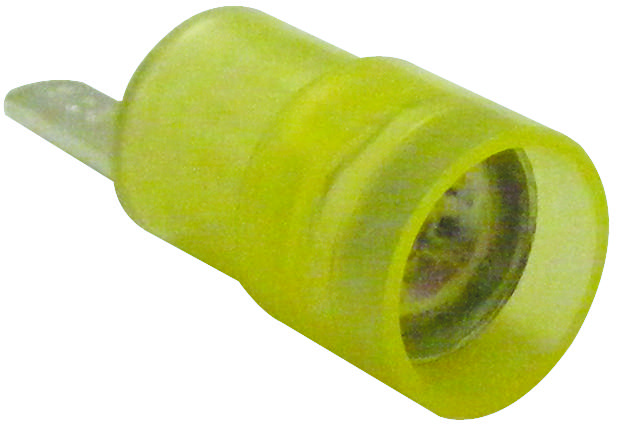

MULTICOMP PRO DBNYD518 Blade Terminal
The DBNYD5-18 from Multicomp Pro is a yellow nylon-insulated blade crimp terminal. It features a tab size of 4.5mm by 18mm with a thickness of 1mm. Suitable for wire sizes ranging from 12 AWG to 10 AWG, it supports a maximum voltage of 600V at 105°C and a current capacity of up to 50A. Made from copper and tin plated, it includes a double crimp with a copper sleeve on the barrel, ensuring reliable and corrosion-resistant connections. Perfect for electrical assembly and repair, this terminal is durable and easy to install, making it ideal for industrial and automotive wiring projects.
MULTICOMP PRO DBNYD518 Blade Terminal Specifications:
- Maximum electric current: 50A
- Maximum electrical rating: 600V at 105°C
- Insulation material: Nylon
- Insulation colour: Yellow
- Terminal material: Copper
- Wire range: 12-10 AWG (4mm² to 6mm²)
- Double crimp: Yes
- Terminal surface treatment: Tin plated
- Terminal thickness: 1mm
- Tab size: 4.5mm by 18mm
- Overall length: 31mm
Buy the Multicomp Series Blade Terminal: DBNYD518
Experience dependable electrical connections with the Multicomp Pro blade terminal. This yellow nylon-insulated terminal supports wire sizes from 12 to 10 AWG, rated at 600V and 50A for high-performance applications. Crafted from copper and tin plated for durability and corrosion resistance, it features a double crimp and a copper sleeve for secure attachment. The compact design includes a 4.5mm by 18mm tab and 1mm thickness, making it perfect for both industrial and automotive wiring projects. Buy online today for quality and reliability.
Get Multicomp DBNYD518 today—built for reliable, corrosion-resistant electrical connections in industrial and automotive wiring.
Frequently Asked Questions
Where can I buy MULTICOMP PRO DBNYD518?
You can click on the BUY or RFQ button to purchase DBNYD518 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part DBNYD518?
You can download the DBNYD518 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of DBNYD518?
MULTICOMP PRO
