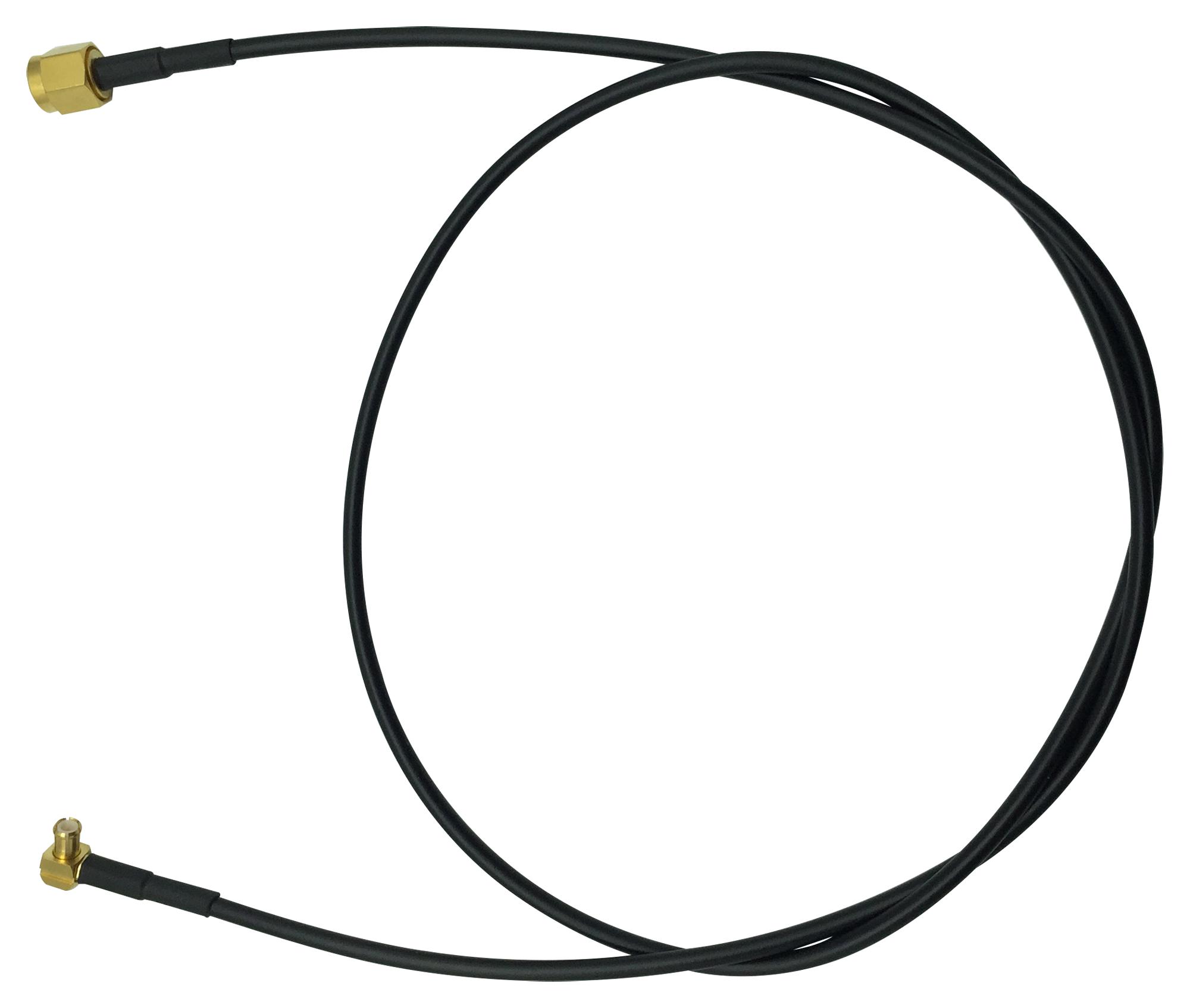

MULTICOMP-PRO MC002997 RF Cable Assembly
This RF cable assembly features a 650mm long LMR100 cable with a black jacket, designed for high-frequency applications up to 6.1GHz. It includes an SMA straight plug and an MCX right-angle plug, both with gold-plated brass and beryllium copper contacts for enhanced durability and corrosion resistance. The assembly provides impedance of 50Ω, with VSWR of 1.3 at 6.1GHz and return loss of 17.692dB. Suitable for various RF testing and communication systems, it withstands voltages up to 250V RMS and has a mating durability of 500 cycles.
MULTICOMP-PRO MC002997 RF Cable Assembly Specifications:
- Cable Length: 650mm / 25.59"
- Connector Type A: SMA Straight Plug
- Connector Type B: MCX Right Angle Plug
- Cable Type: LMR100
- Jacket Colour: Black
- Impedance: 50Ω
- Frequency Range: 0-6.1GHz
- VSWR: 1.3@6.1GHz
- Return Loss: 17.692dB@6.1GHz
- Voltage Rating: 250V RMS
- Insulation Resistance: SMA: 5000MQ Min., MCX: 1000MOQ Min. initial, 500MQ Min. after conditioning
- Dielectric Withstanding Voltage: 750V AC / 1 min.
- Contact Resistance: SMA: Centre: 3mΩ Max., Outer: 2mΩ Max., MCX: Centre: 5mΩ Max., Outer: 1mΩ Max.
- Mating Cycles: 500 times
- Body Material: Brass/Beryllium Copper, Gold Plated
- Insulating Material: PTFE
Buy the Buy Multicomp RF Cable Assembly Part Number MC002997 Online
Purchase the Multicomp RF Cable Assembly MC002997 online to enjoy a high-quality, durable connection solution, featuring 650mm of LMR100 cable, gold-plated contacts, and compatibility up to 6.1GHz. Perfect for RF testing, communication, and measurement applications, this assembly provides excellent impedance matching, low VSWR, and reliable performance. With a robust construction, it ensures long-lasting durability through 500 mating cycles and withstands voltages up to 250V. Get this versatile RF connector assembly now for seamless, high-frequency data transmission.
Order your Multicomp RF Cable Assembly MC002997 today and ensure reliable high-frequency connections for your RF projects.
