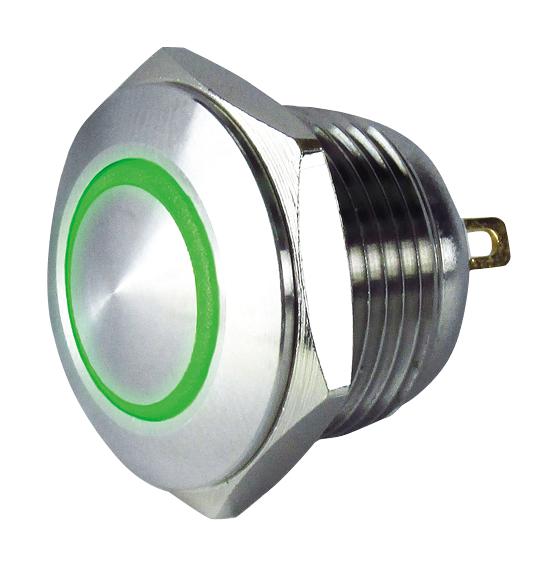

MULTICOMP-PRO MC010879 Illuminated Vandal Resistant Switch
The illuminated vandal resistant switch is a durable, stainless steel push-button switch designed for industrial environments. It features a flush mount with an illuminated ring, available with multiple LED colors (green, red, blue), and contact configurations (momentary, maintained). Suitable for panel cutouts of 16mm thickness 0.5-3mm, it offers high dielectric strength, low contact resistance, insulation resistance, and vibration and shock resistance. Its robust design ensures long mechanical and electrical life, with a degree of protection P67, making it ideal for control panels and industrial equipment.
MULTICOMP-PRO MC010879 Illuminated Vandal Resistant Switch Specifications:
- Rated Voltage: 48V DC
- Rated Current: > 100mA
- LED Voltage: 12V
- LED Colours: Green, Red, Blue
- Switch Operation: 1NO
- Material / Finish: Stainless Steel
- Dielectric Strength: 2000V AC / min between live part and ground, 1000V AC / min between terminals
- Contact Resistance: 50mΩ Max (Initial)
- Insulation Resistance: 100MΩ Min (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +70°C (No freezing)
- Operating Temperature: 1°C to +50°C
- Vibration Resistance: 5 to 55Hz, 0.5mm amplitude
- Shock Resistance: 200 m/sec² operating, 500 m/sec² damage
- Mechanical Life: 1,000,000 momentary, 250,000 maintained
- Electrical Life: 50,000 cycles
- Degree of Protection: P67
- Terminal Style: Solder terminal
- Weight: 1g
Buy the Multicomp Vandal Resistant Switch – Reliable Industrial Control for Industrial Applications
Purchase the multicomp vandal resistant switch MC010879 online today. Designed for industrial environments, it features stainless steel construction, high dielectric strength, and multi-color LEDs for versatile signaling. Suitable for panel cutouts of 16mm with a durable design, it supports long electrical and mechanical life cycles. Its robust protection class P67 ensures reliable performance in harsh conditions. Improve your control panels by ordering this high-quality switch online for fast delivery, competitive pricing, and expert support to meet your industrial automation needs.
Order your multicomp vandal resistant switch MC010879 today and enhance your industrial control panels with a durable, illuminated, and reliable switch.
