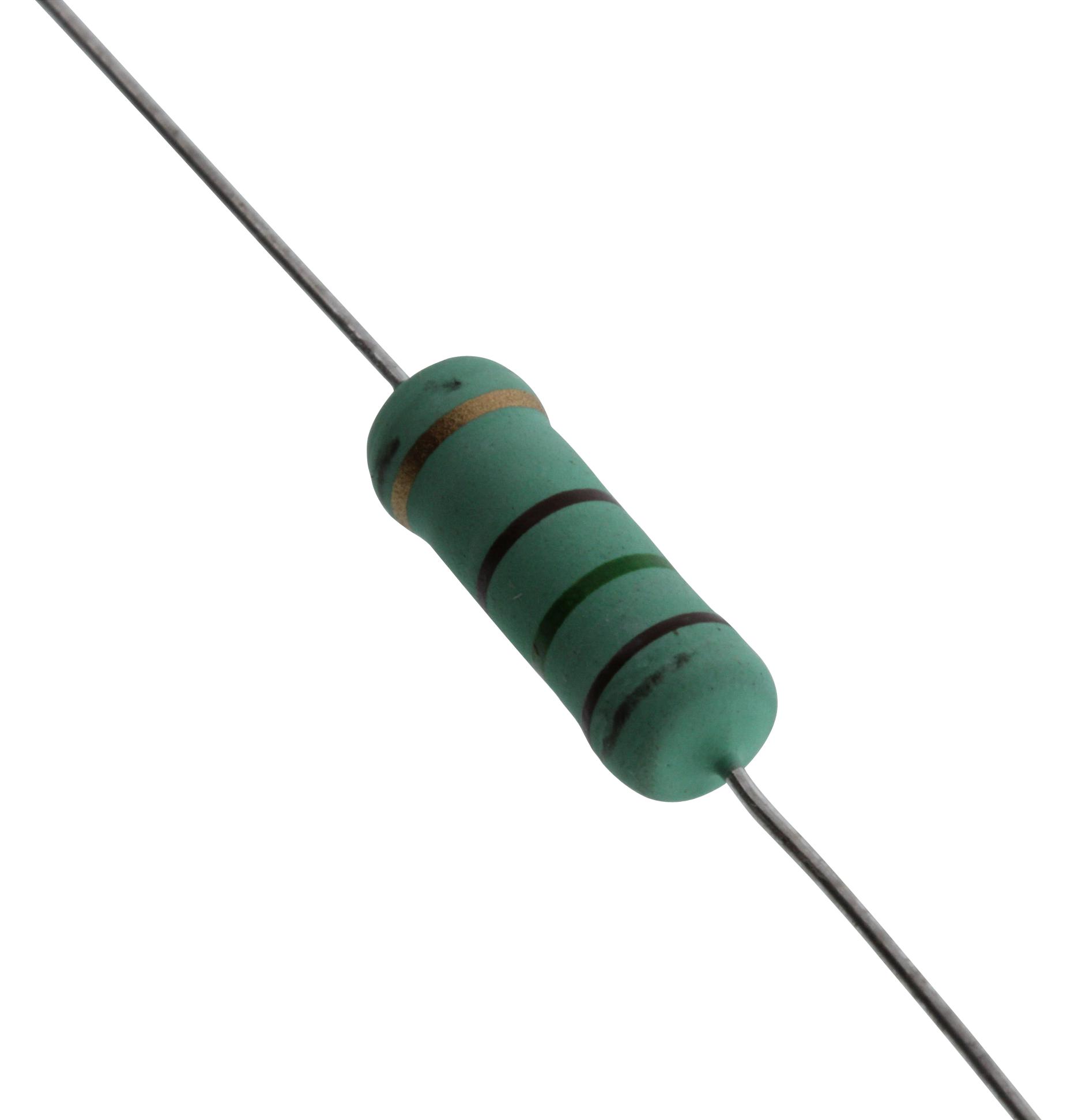

MULTICOMP PRO MCKNP05SJ0151AA9 Wire-Wound Resistor
Royalohm wire-wound fixed resistors offer exceptional performance in various electronic applications, featuring low temperature coefficients, high overload capacity, and excellent flame resistance. These resistors, with green coating, are available in different sizes and power ratings, including small and extra small variants, suitable for circuit protection and current regulation. Designed to withstand soldering heat, humidity, and thermal cycling, they ensure long-term reliability in demanding environments. Custom resistance values and fusing options are supplied on a case-by-case basis, making them versatile for industrial and electronic circuit needs.
MULTICOMP PRO MCKNP05SJ0151AA9 Wire-Wound Resistor Specifications:
- Power Ratings: 1/2W, 1W, 2W, 3W, 5W, 7W, 9W, 10W, 20W, 30W, 40W, 50W, 60W, 80W, 100W
- Resistance Range: 0.4Ω to 50KΩ, customized on request
- Temperature Coefficient: <200 PPM/°C for resistance under 200Ω; >200 PPM/°C for resistance over 200Ω
- Maximum Overload Voltage: 1,000V; Working Voltage: 500V
- Dielectric Withstanding Voltage: 350V for <1W, 500V for ≥1W
- Thermal Cycling: Max. ±2.0% variation; Load Life: Max. ±6.0%; Solderability: Min. 95%
- Flame Resistance: Excellent; Insulation: Non-Flammable; Coating: Green
- Physical Dimensions: Length varies with power rating, e.g., 35-85mm; Diameter approx. 0.5-1.0mm
- Material: Copper windings with non-inductive type options; Resistance to mechanical stress
Buy the Royalohm KNP05SJ0151AA9 – Reliable Wire-Wound Fixed Resistor for Industrial Applications
Enhance your electronic designs with the high-quality wire-wound resistors from Royalohm. Featuring excellent flame resistance, low temperature coefficients, and various power ratings, these resistors are ideal for industrial applications where reliability is critical. Available in multiple sizes and resistance values, they can withstand soldering heat, humidity, and thermal cycling for long-term durability. Custom options like resistance values and fusing wire-wound resistors are also available, ensuring broad compatibility with your project requirements. Purchase online today for quick delivery and dependable performance.
Buy Royalohm KNP05SJ0151AA9 now and experience unmatched reliability and high performance in your electronic circuits.
