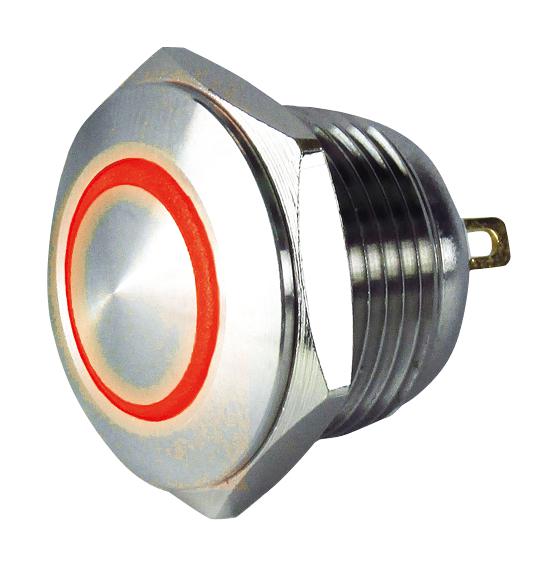

MULTICOMP PRO MC010883 Vandal Resistant Switch
This vandal-resistant illuminated switch offers reliable operation with three mounting top options: flush, prominent, and domed. Rated at 48V DC with over 100mA current, it features LED lighting in green, red, or blue, and durable stainless steel material. Designed for panel cutouts of 16mm with a thickness of 0.5-3mm, it withstands harsh conditions with IP67 protection, high dielectric strength, shock and vibration resistance, and a long mechanical life of up to 1,000,000 cycles. Suitable for industrial, control panels, and security systems requiring rugged, illuminated switches.
MULTICOMP PRO MC010883 Vandal Resistant Switch Specifications:
- Rated Voltage: 48V DC
- Rated Current: > 100mA
- LED Voltage: 12V
- LED Colour: Green / Red / Blue
- Switch Operation: 1NO
- Material / Finish: Stainless Steel
- Dielectric Strength: 2000V AC / min between live part and ground; 1000V AC / min between terminals of same poles
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 100MΩ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +70°C
- Operating Temperature: 1°C to +50°C
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 200 m/sec² operating, 500 m/sec² damage
- Mechanical Life: Momentary 1,000,000 cycles; Maintained 250,000 cycles
- Electrical Life: 50,000 cycles
- Degree of Protection: IP67
- Terminal Style: Solder terminal
- Weight: 11g
- Panel Cut-out: 16mm diameter
- Panel Thickness: 0.5-3mm
Buy the multicomp Series Vandal Resistant Illuminated Switch: MC010883
Order the multicomp vandal-resistant illuminated switch MC010883 now for durable, reliable, and bright LED illumination in industrial control panels. Perfect for harsh environments, it features high IP67 protection, multiple LED color options, and robust stainless steel construction. Its long mechanical and electrical life ensures lasting performance, making it ideal for security, automation, and control systems requiring rugged, vandal-resistant switches. Purchase online today for fast delivery and exceptional quality, ensuring your equipment operates reliably in demanding conditions.
Get multicomp vandal-resistant illuminated switch MC010883 today—designed for rugged industrial environments with long-lasting LED illumination.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010883?
You can click on the BUY or RFQ button to purchase MC010883 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010883?
You can download the MC010883 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010883?
MULTICOMP PRO
